Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

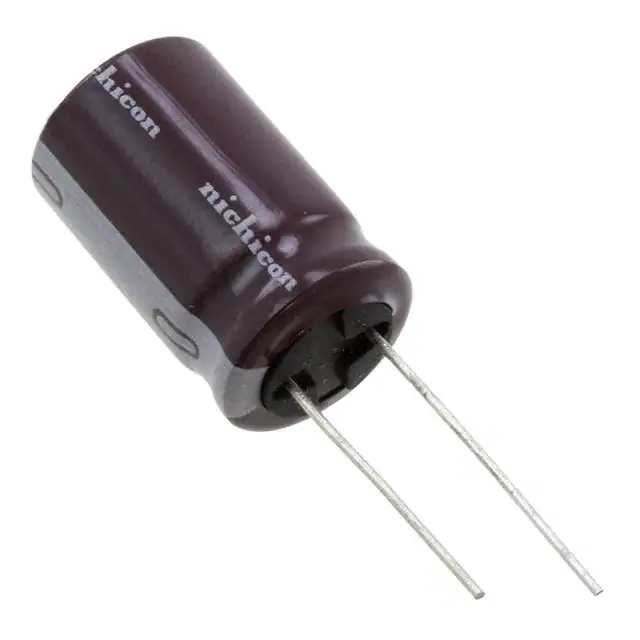

UCY2V820MHD9TNCAP ALUM 82UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 82 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UCX1V152MNJ6MSCAP ALUM 1500UF 20% 35V SMD |
0 |
|
Datasheet |
UCX | Tape & Reel (TR) | Active | 1500 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | General Purpose | 950 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
63TLV680M18X16.5CAP ALUM 680UF 20% 63V SMD |
0 |
|
Datasheet |
TLV | Tape & Reel (TR) | Active | 680 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.014 A @ 120 Hz | 1.69 A @ 100 kHz | 110 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
250MXC560MEFCSN25X40CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ERLA251LIN601KR35MCAP ALUM 600UF 10% 250V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 600 µF | ±10% | 250 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.03 A @ 120 Hz | 6.045 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
381LX182M100A022CAP ALUM 1800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1800 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LLS2C182MELCCAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1800 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 6.42 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
B43642A2687M002CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 680 µF | ±20% | 200 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F153BD025CAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 15000 µF | ±20% | 25 V | 81mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.73 A @ 100 Hz | 5.81 A @ 10 kHz | 71 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
180MXG1000MEFCSN22X50CAP ALUM 1000UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 4.02 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ221M450J042CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 220 µF | ±20% | 450 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LQ391M315K022CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 390 µF | ±20% | 315 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLP821M220C4P3CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 820 µF | ±20% | 220 V | 243mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 3.06 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
381LQ102M200K032CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSK221M2W---3525SCAP ALUM 450V POLAR |
0 |
|
- |
LSK | Active | 220 µF | ±20% | 450 V | 905mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.442 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | ||
|
380LX102M200J052CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
381LX681M160K022CAP ALUM 680UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 680 µF | ±20% | 160 V | 293mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSG392M2A---3540SCAP ALUM 100V POLAR |
0 |
|
- |
LSG | Active | 3.9 mF | ±20% | 100 V | 68mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.35 A @ 120 Hz | 4.02 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
EKHS4H1VSN820MP25SCAP ALUM 82UF 20% 475V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 82 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 958.1 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LLG2Z182MELA50CAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1800 µF | ±20% | 180 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 5.4 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole |
