Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL213248221E3CAP ALUM 220UF 63V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 220 µF | -10%, +50% | 63 V | 500mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 520 mA @ 100 Hz | - | - | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UVR1V153MRDCAP ALUM 15000UF 20% 35V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 15000 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 4.945 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ERLA221LIN701KR35MCAP ALUM 700UF 10% 220V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 700 µF | ±10% | 220 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.27 A @ 120 Hz | 6.405 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
MAL212025222E3CAP ALUM 2200UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 2200 µF | ±20% | 16 V | 48mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.94 A @ 10 kHz | 46 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
LSK151M2H---2250SCAP ALUM 500V POLAR |
0 |
|
- |
LSK | Active | 150 µF | ±20% | 500 V | 1.327Ohm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.022 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
|
MAL213246681E3CAP ALUM 680UF 25V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 680 µF | -10%, +50% | 25 V | 260mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 100 Hz | - | - | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
157LBA400M2CDCAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 150 µF | ±20% | 400 V | 1.65786Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.3083 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
160USG1000MEFCSN30X25CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ESMH451VNN471MA50SCAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 470 µF | ±20% | 450 V | 529mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.6179 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ391M315J032CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 390 µF | ±20% | 315 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.81 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LQ151M450K012CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.216Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43644B9227M002CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 220 µF | ±20% | 400 V | 400mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 100 Hz | - | 580 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
160MXG1200MEFCSN22X55CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.98 A @ 120 Hz | 4.47 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
B43630A9227M002CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43630 | Bulk | Active | 220 µF | ±20% | 400 V | 470mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | 690 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B43642B2827M002CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 820 µF | ±20% | 200 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | - | 150 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B43642B2827M000CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 820 µF | ±20% | 200 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | - | 150 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
TE1408-E3CAP ALUM 15UF 100V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 15 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 0.945" L (9.00mm x 24.00mm) | - | - | Through Hole | |
|
TVA1162-E3CAP ALUM 500UF 16V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 500 µF | - | 16 V | - | - | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 0.937" L (9.53mm x 23.80mm) | - | - | Through Hole | |
|

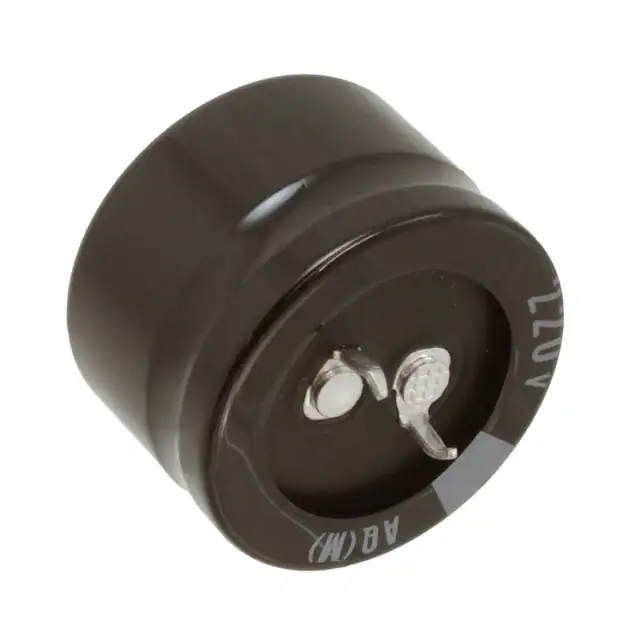

LAQ2P221MELB20CAP ALUM 220UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 220 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.08 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ELXM161VSN102MR35SCAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1000 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.39 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole |
