Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAQ2G121MELZ35CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAQ2P391MELZ45CAP ALUM 390UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 390 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.62 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAQ2P331MELA30CAP ALUM 330UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 330 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.44 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43541B9227M087CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43541 | Bulk | Active | 220 µF | ±20% | 400 V | 370mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.268" (32.20mm) | - | Through Hole | |
|
200HXC470MEFCSN30X25CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.405 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
385MXC560MEFC35X45CAP ALUM 560UF 20% 385V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 385 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.786 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215299607E3CAP ALUM 22UF 20% 400V SMD |
0 |
|
Datasheet |
152 CME | Tape & Reel (TR) | Active | 22 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 140 mA @ 100 Hz | 350 mA @ 30 kHz | 1.5 Ohms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
PEH536JCC4560M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 5.6 mF | ±20% | 35 V | 53mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | 7.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LASW6151MELZ40CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 943 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
80USC4700MEFCSN30X40CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 4.922 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEG227HKP4460ME4CAP ALUM 4600UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
PEG227 | Tray | Active | 4600 µF | ±20% | 25 V | 35mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.4 A @ 5 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | |
|
LGGW6221MELZ40CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 220 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

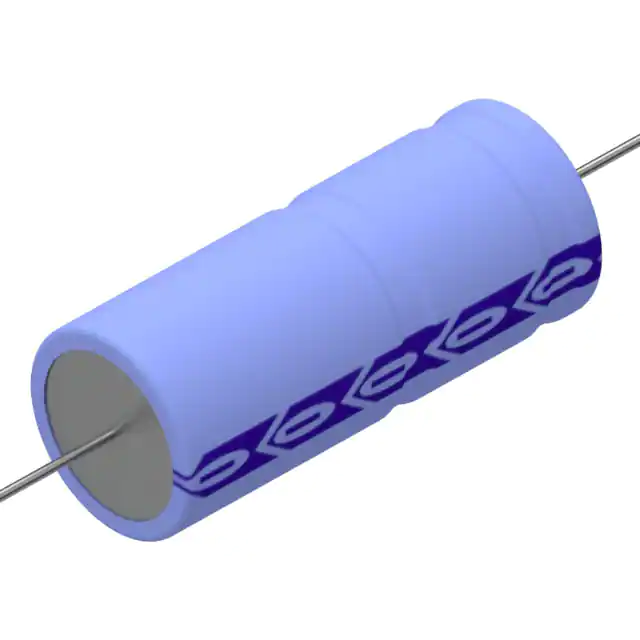

MAL204271159E3CAP ALUM 15UF 450V AXIAL TH |
0 |
|
Datasheet |
042 AHH-ELB | Tape & Box (TB) | Active | 15 µF | -10%, +50% | 450 V | 3.9Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 162 mA @ 100 Hz | - | 2.3 Ohms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|

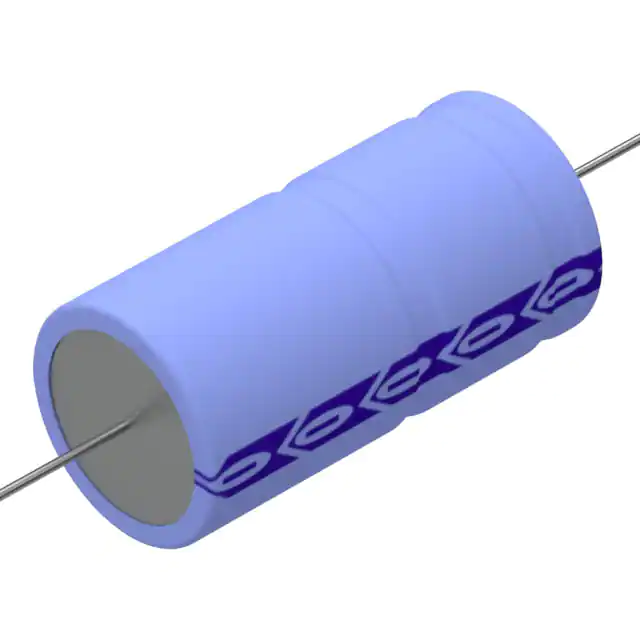

MAL204272159E3CAP ALUM 15UF 450V AXIAL TH |
0 |
|
Datasheet |
042 AHH-ELB | Tape & Box (TB) | Active | 15 µF | -10%, +50% | 450 V | 3.9Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 162 mA @ 100 Hz | - | 2.3 Ohms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
EKMZ421VSN331MP45SCAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMZ | Box | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.0592 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
ALC70A241BD350CAP ALUM 240UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 350 V | 583mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 3.3 A @ 10 kHz | 303 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC70D241BD350CAP ALUM 240UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 350 V | 583mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 3.3 A @ 10 kHz | 303 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F241BD350CAP ALUM 240UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 240 µF | ±20% | 350 V | 583mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 3.3 A @ 10 kHz | 303 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
63MXC2700MEFCSN25X30CAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 2700 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.4265 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL204343689E3CAP ALUM 68UF 250V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 68 µF | -10%, +50% | 250 V | 2.2Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 520 mA @ 100 Hz | - | 1.7 Ohms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole |
