Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMQ251VSN821MQ40SCAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SMQ | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.77 A @ 120 Hz | 4.155 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SLP181M420H1P3CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 420 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.38 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
SLP391M315C4P3CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 390 µF | ±20% | 315 V | 851mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.16 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLPX331M400C4P3CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.94 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LX181M450J032CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 180 µF | ±20% | 450 V | 1.11Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX681M250J452CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 680 µF | ±20% | 250 V | 270mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
381LR221M400H452CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Active | 220 µF | ±20% | 400 V | 905mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

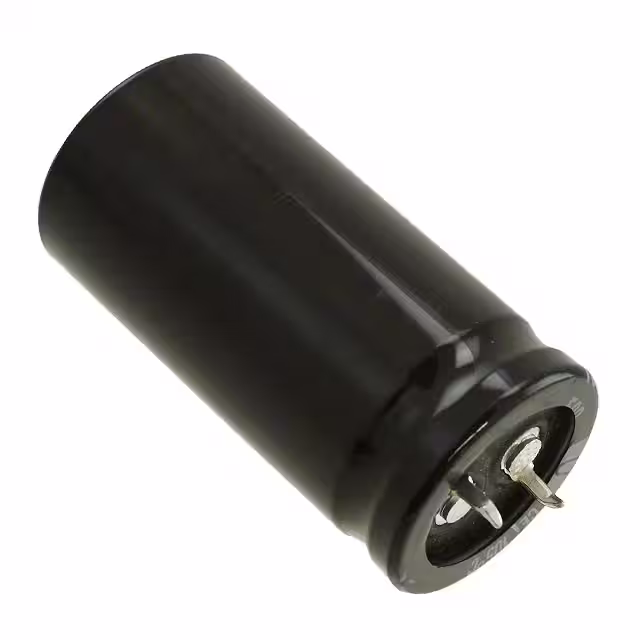

LGN2P102MELA50CAP ALUM 1000UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 1000 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 3.495 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
688LBB050M2DDCAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 6800 µF | ±20% | 50 V | 48.76mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205752151E3CAP ALUM 150UF 20% 200V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 150 µF | ±20% | 200 V | 950mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 770 mA @ 100 Hz | - | 620 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
450HXC82MEFCSN22X35CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.134 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
510DX127M063CG2DCAP ALUM 120UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 120 µF | ±20% | 63 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
511D476M050BB4DCAP ALUM 47UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 47 µF | ±20% | 50 V | 3.884Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 137 mA @ 120 Hz | 221 mA @ 40 kHz | 1.45 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
511D476M063CC3DCAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 47 µF | ±20% | 63 V | 3.076Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 184 mA @ 120 Hz | 299 mA @ 40 kHz | 1.11 Ohms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
511D476M063CC4DCAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 47 µF | ±20% | 63 V | 3.076Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 184 mA @ 120 Hz | 299 mA @ 40 kHz | 1.11 Ohms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole | |
|
|
511D476M100CG4DCAP ALUM 47UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 47 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
511D477M016CD4DCAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 470 µF | ±20% | 16 V | 748mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 419 mA @ 120 Hz | 522 mA @ 40 kHz | 442 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
511D826M063CD4DCAP ALUM 82UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 82 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|

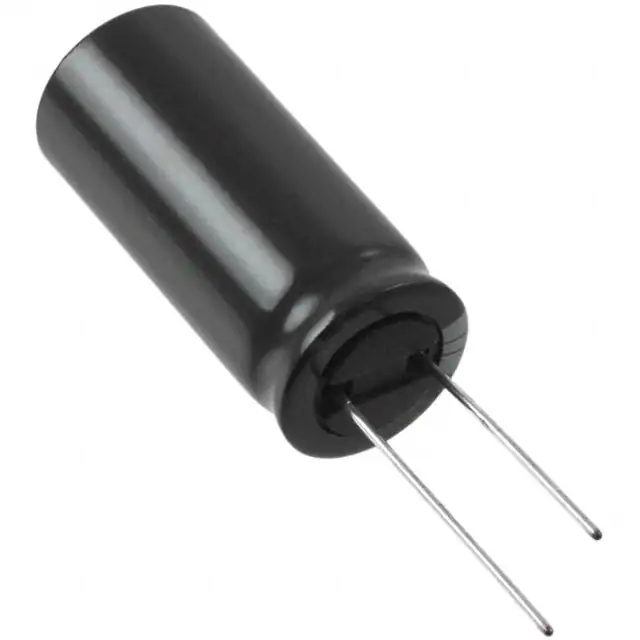

200KXW330MEFC16X35CAP ALUM 330UF 20% 200V RADIAL |
10 |
|
Datasheet |
KXW | Bulk | Last Time Buy | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 1.414 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UKL1A682MHDCAP ALUM 6800UF 20% 10V RADIAL |
0 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.093 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole |
