Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450HXC82MEFCSN25X25CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 82 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.134 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELHS4H1VSN181MA25SCAP ALUM 180UF 20% 475V SNAP TH |
0 |
|
Datasheet |
LHS | Bulk | Active | 180 µF | ±20% | 475 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.5444 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
MAL212019151E3CAP ALUM 150UF 20% 100V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 150 µF | ±20% | 100 V | 266mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.48 A @ 10 kHz | 262 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
LSG221M2H---3035SCAP ALUM 500V POLAR |
0 |
|
- |
LSG | Active | 220 µF | ±20% | 500 V | 905mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 2.2451 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|

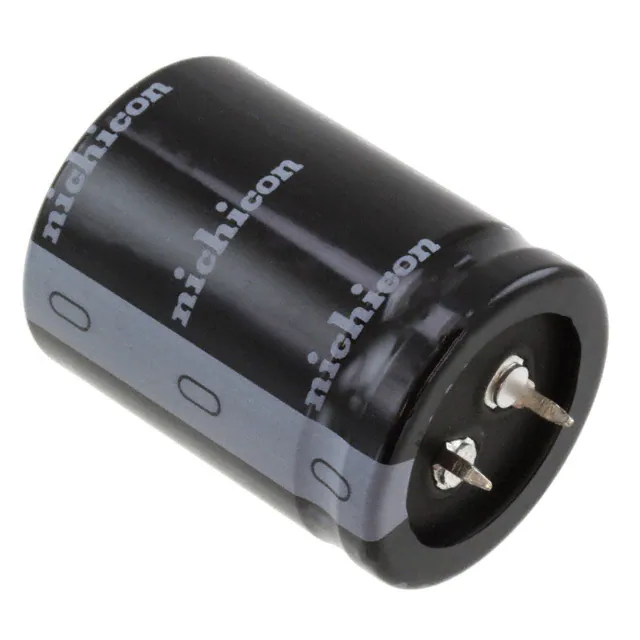

LLS2C182MELBCAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1800 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.31 A @ 120 Hz | 6.465 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKG1E272MESYCKCAP ALUM 2700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LX152M160A022CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 166mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.73 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43644A5187M067CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 180 µF | ±20% | 450 V | 540mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | 810 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX102M080J012CAP ALUM 1000UF 20% 80V SNAP TH |
7 |
|
Datasheet |
381LX | Bulk | Obsolete | 1000 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.5 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

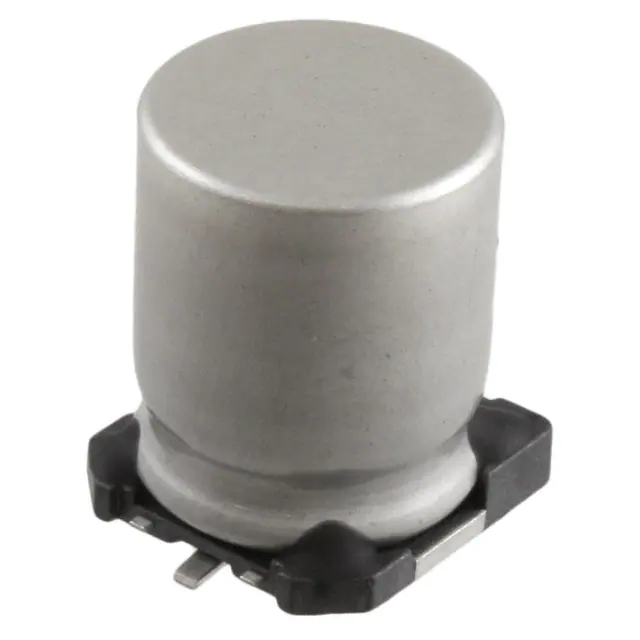

MAL214099112E3CAP ALUM 330UF 20% 50V SMD |
0 |
|
Datasheet |
140 CRH | Tape & Reel (TR) | Active | 330 µF | ±20% | 50 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | 900 mA @ 100 kHz | 180 mOhms | - | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|
|
B41790A7388Q001CAP ALUM 3800UF 35V TH |
0 |
|
Datasheet |
B41790 | Tray | Active | 3800 µF | -10%, +30% | 35 V | 35mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 6.5 A @ 10 kHz | 17 mOhms | 0.364" (9.25mm) | 0.709" Dia (18.00mm) | 1.535" (39.00mm) | - | Through Hole | |
|
|
180USC470MEFC22X30CAP ALUM 470UF 20% 180V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 470 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.865 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250USC820MEFC25X45CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.01 A @ 120 Hz | 4.515 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450KXF56MEFC22X20CAP ALUM 56UF 20% 450V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 56 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 602 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
220MXG1200MEFCSN30X40CAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
25MXC22000MEFC30X35CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
35MXG12000MEFCSN30X35CAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.37 A @ 120 Hz | 3.8755 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKX2G181MESA50CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43640B2827M000CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
- |
B43640 | Bulk | Active | 820 µF | ±20% | 200 V | 110mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 100 Hz | - | 170 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ681M250J032CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
