Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKSA2682MESBCAP ALUM 6800UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LKSN2472MESBCAP ALUM 4700UF 20% 56V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 56 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
30D477M025DF2AE3CAP ALUM 470UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 470 µF | ±20% | 25 V | 612mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 575 mA @ 120 Hz | 805 mA @ 100 kHz | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
381LQ472M080K042CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 4700 µF | ±20% | 80 V | 60mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL224656562E3CAP ALUM 5600UF 20% 25V RADIAL |
0 |
|
Datasheet |
246 RTI-V | Box | Active | 5600 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 3.1 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL224658122E3CAP ALUM 1200UF 20% 63V RADIAL |
0 |
|
Datasheet |
246 RTI-V | Box | Active | 1200 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.3 A @ 100 Hz | 2.6 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
PEG124YA1100QE4CAP ALUM 1UF 450V AXIAL TH |
0 |
|
Datasheet |
PEG124 | Bulk | Active | 1 µF | -10%, +30% | 450 V | 49Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 100 Hz | 80 mA @ 5 kHz | - | - | 0.394" Dia x 0.787" L (10.00mm x 20.00mm) | - | - | Through Hole | |
|
|
LSM821M2E---3535SCAP ALUM 250V POLAR |
0 |
|
- |
LSM | Active | 820 µF | ±20% | 250 V | 243mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 3.374 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
EKMS201VSN102MP50SCAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.45 A @ 120 Hz | 3.675 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
ELXM181VSN102MR35SCAP ALUM 1000UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1000 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.39 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1E222MESCCKCAP ALUM 2200UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ELXS181VSN821MP40SCAP ALUM 820UF 20% 180V SNAP TH |
0 |
|
- |
LXS | Bulk | Active | 820 µF | ±20% | 180 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 3.195 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
LSK102M2D---3535SCAP ALUM 200V POLAR |
0 |
|
- |
LSK | Active | 1 mF | ±20% | 200 V | 199mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.408 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
LSK271M2P---3530SCAP ALUM 420V POLAR |
0 |
|
- |
LSK | Active | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.288 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
381LX331M350K452CAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70A431BD250CAP ALUM 430UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 250 V | 428mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | 3.44 A @ 10 kHz | 249 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC70D431BD250CAP ALUM 430UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 250 V | 428mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | 3.44 A @ 10 kHz | 249 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F431BD250CAP ALUM 430UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 250 V | 428mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | 3.44 A @ 10 kHz | 249 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
220MXC560MEFCSN25X35CAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.49 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

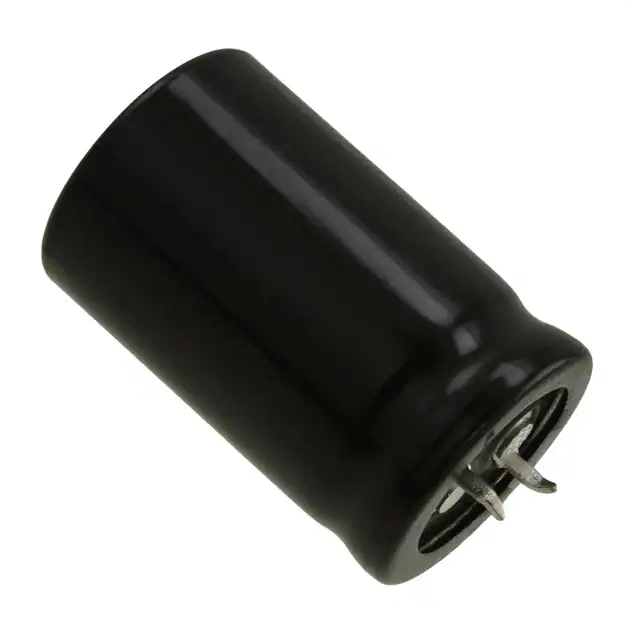

LLG2D122MELA40CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 4.215 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
