Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCM1H112MNJ1MSCAP ALUM 1100UF 20% 50V SMD |
0 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 1100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 990 mA @ 120 Hz | 1.98 A @ 100 kHz | 78 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
420MXG220MEFCSN22X45CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.002 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

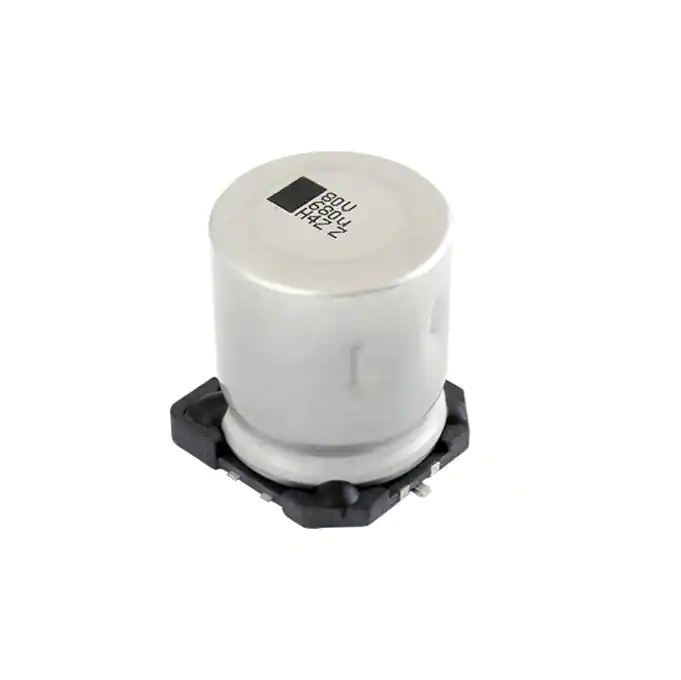

MAL225099708E3CAP ALUM 680UF 20% 80V SMD |
0 |
|
Datasheet |
250 CRZ-V | Box | Active | 680 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 870 mA @ 100 Hz | 1.45 A @ 100 kHz | 110 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount | |
|
861010786015CAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
WCAP-AIG8 | Tray | Active | 4700 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.28 A @ 120 Hz | 4.1984 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLG2W221MELB25CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALC40F332BC063CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 3.3 mF | ±20% | 63 V | 165mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 100 Hz | 2.35 A @ 10 kHz | 133 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
478LMB063M2EDCAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LMB | Bulk | Active | 4700 µF | ±20% | 63 V | 105.821mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 3.5125 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200USC270MEFC22X25CAP ALUM 270UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 270 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 2.055 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
400HXC150MEFC25X35CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.002 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450MXK180MEFC22X35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.778 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
63MXG5600MEFCSN25X40CAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 5600 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.22 A @ 120 Hz | 3.703 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
200VXR820MEFC30X35CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 820 µF | ±20% | 200 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSG471M2V---3045SCAP ALUM 350V POLAR |
0 |
|
- |
LSG | Active | 470 µF | ±20% | 350 V | 423mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.1164 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
PEG228KLP4240QE4CAP ALUM 2400UF 40V AXIAL TH |
0 |
|
Datasheet |
PEG228 | Tray | Active | 2400 µF | -10%, +30% | 40 V | 39mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.87 A @ 100 Hz | 8.2 A @ 5 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | |
|
380LQ221M450A012CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 220 µF | ±20% | 450 V | 904mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SLP391M315E5P3CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 390 µF | ±20% | 315 V | 851mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.16 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70D912BD040CAP ALUM 9100UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 40 V | 83mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.21 A @ 100 Hz | 5.3 A @ 10 kHz | 69 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F912BD040CAP ALUM 9100UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 40 V | 83mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.21 A @ 100 Hz | 5.3 A @ 10 kHz | 69 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL213848681E3CAP ALUM 680UF 20% 63V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 680 µF | ±20% | 63 V | 190mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.13 A @ 100 Hz | - | 140 mOhms | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
450MXK180MEFCSN22X35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXK | Tray | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.778 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
