Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLS2D152MESBCAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
LAQ2P271MELB25CAP ALUM 270UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 270 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC80A201BD350CAP ALUM 200UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 350 V | 683mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 100 Hz | 3.45 A @ 10 kHz | 358 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D201BD350CAP ALUM 200UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 350 V | 683mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 100 Hz | 3.45 A @ 10 kHz | 358 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F201BD350CAP ALUM 200UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 350 V | 683mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 100 Hz | 3.45 A @ 10 kHz | 358 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PL2W271MND3030RSYCAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
PL | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.716 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|

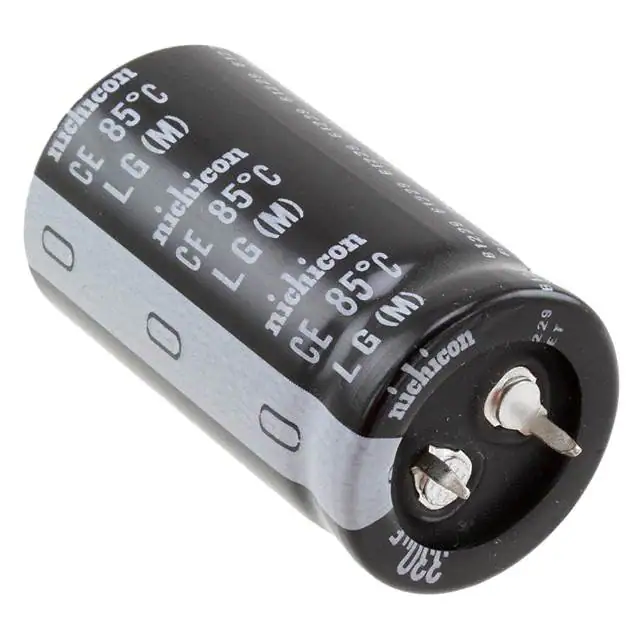

LLG2C182MELA45CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1800 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 5.7 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
200SXC680MEFCSN35X25CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.0532 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

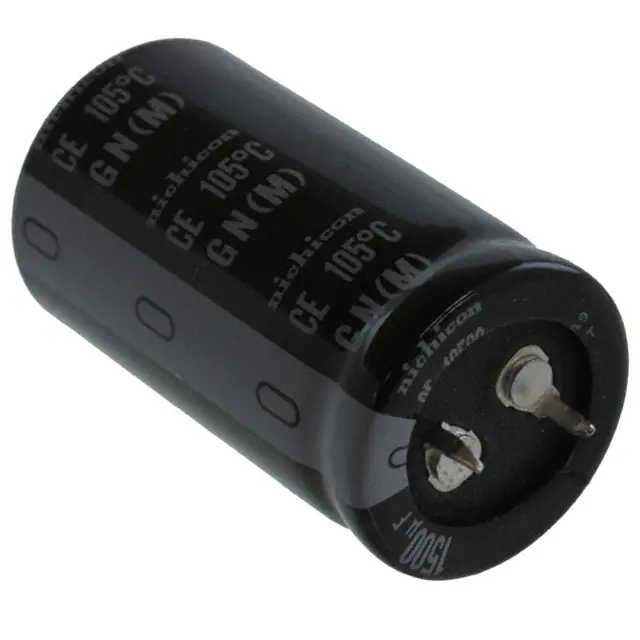

LGN2C152MELA45CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 1500 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALC80A511BD200CAP ALUM 510UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 510 µF | ±20% | 200 V | 419mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 100 Hz | 3.75 A @ 10 kHz | 253 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D511BD200CAP ALUM 510UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 510 µF | ±20% | 200 V | 419mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 100 Hz | 3.75 A @ 10 kHz | 253 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80F511BD200CAP ALUM 510UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 510 µF | ±20% | 200 V | 419mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 100 Hz | 3.75 A @ 10 kHz | 253 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMZ421VSN271MR25SCAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMZ | Box | Active | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.8304 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
MAL225917829E3CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 82 µF | ±20% | 450 V | 1.37Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 100 Hz | 1.185 A @ 10 kHz | 940 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225953391E3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 250 V | 250mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 100 Hz | 3.09 A @ 10 kHz | 140 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225983391E3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 250 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 100 Hz | 2.805 A @ 10 kHz | 160 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225933391E3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 250 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 100 Hz | 2.745 A @ 10 kHz | 190 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225957829E3CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 82 µF | ±20% | 450 V | 1.37Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 100 Hz | 1.185 A @ 10 kHz | 940 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225973391E3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 250 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 100 Hz | 2.745 A @ 10 kHz | 190 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225913391E3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 390 µF | ±20% | 250 V | 250mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 100 Hz | 3.09 A @ 10 kHz | 140 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
