Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500D305F150CB5TCAP ALUM 3UF 150V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 3 µF | - | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
PEH506SAG3470M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 470 µF | ±20% | 250 V | 250mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 8.9 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL202145682E3CAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 6800 µF | ±20% | 16 V | 70mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.04 A @ 100 Hz | - | 40 mOhms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
LGN2P821MELB35CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
380LX391M315J042CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 390 µF | ±20% | 315 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL202144103E3CAP ALUM 10000UF 20% 10V AXIAL |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 10000 µF | ±20% | 10 V | 64mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.09 A @ 100 Hz | - | 40 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
PEH534SBF3470M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 470 µF | ±20% | 250 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 8.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH534SBF3470M2SCAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 470 µF | ±20% | 250 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 8.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.811" (46.00mm) | - | Through Hole | |
|
ALC80A162BD100CAP ALUM 1600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1600 µF | ±20% | 100 V | 184mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.16 A @ 100 Hz | 4.45 A @ 10 kHz | 151 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D162BD100CAP ALUM 1600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1600 µF | ±20% | 100 V | 184mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.16 A @ 100 Hz | 4.45 A @ 10 kHz | 151 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F162BD100CAP ALUM 1600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1600 µF | ±20% | 100 V | 184mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.16 A @ 100 Hz | 4.45 A @ 10 kHz | 151 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LQ122M180J042CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 1200 µF | ±20% | 180 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.31 A @ 120 Hz | 4.63 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LQ681M250J042CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

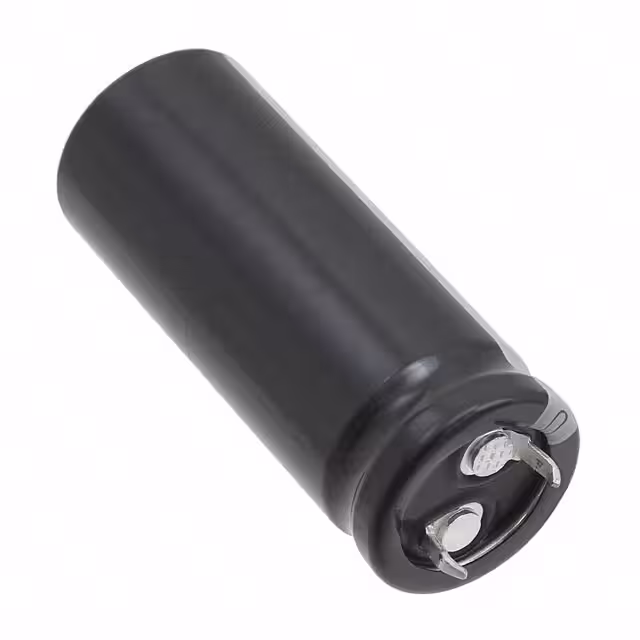

LKX2E471MESY50CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B41231A5399M002CAP ALUM 39000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
B41231 | Bulk | Active | 39000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UBC1H681MNS1MSCAP ALUM 680UF 20% 50V SMD |
0 |
|
Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 680 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 737 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.886" (22.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
B43544A6157M067CAP ALUM 150UF 20% 500V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 150 µF | ±20% | 500 V | 550mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 100 Hz | - | 820 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSG182M2C---3050SCAP ALUM 160V POLAR |
0 |
|
- |
LSG | Active | 1.8 mF | ±20% | 160 V | 111mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.31 A @ 120 Hz | 4.965 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
200HXC560MEFCSN22X45CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.71 A @ 120 Hz | 4.065 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSG682M1K---3540SCAP ALUM 80V POLAR |
0 |
|
- |
LSG | Active | 6.8 mF | ±20% | 80 V | 49mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.56 A @ 120 Hz | 4.272 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
