Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAK2G151MELC25CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 805 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKG1V182MESBCKCAP ALUM 1800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1800 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41505A8338M002CAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 3300 µF | ±20% | 63 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | - | 56 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41505A8338M007CAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 3300 µF | ±20% | 63 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | - | 56 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
475VXT180MEFCSN22X35CAP ALUM 180UF 20% 475V SNAP TH |
0 |
|
Datasheet |
VXT | Bulk | Active | 180 µF | ±20% | 475 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH506YBE3180M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 180 µF | ±20% | 450 V | 520mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | 6 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

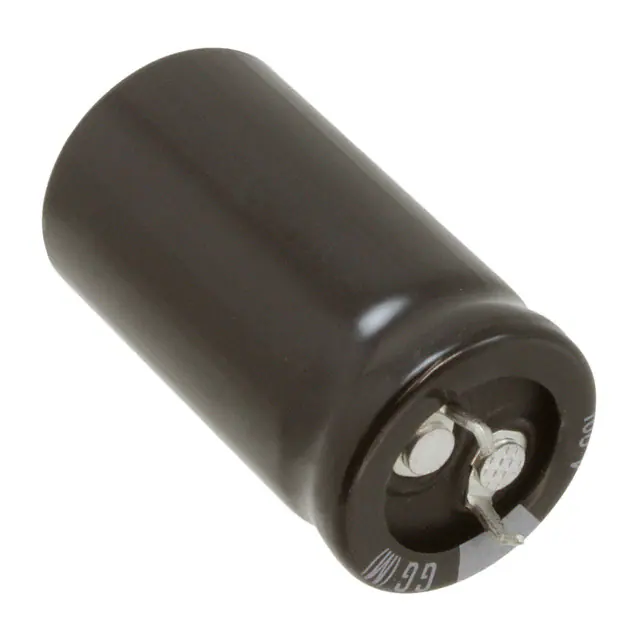

LGG2W181MELZ40CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
250VXH330MEFCSN22X30CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX471M350K052CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 350 V | 390mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
381LQ271M420K022CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 270 µF | ±20% | 420 V | 675mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

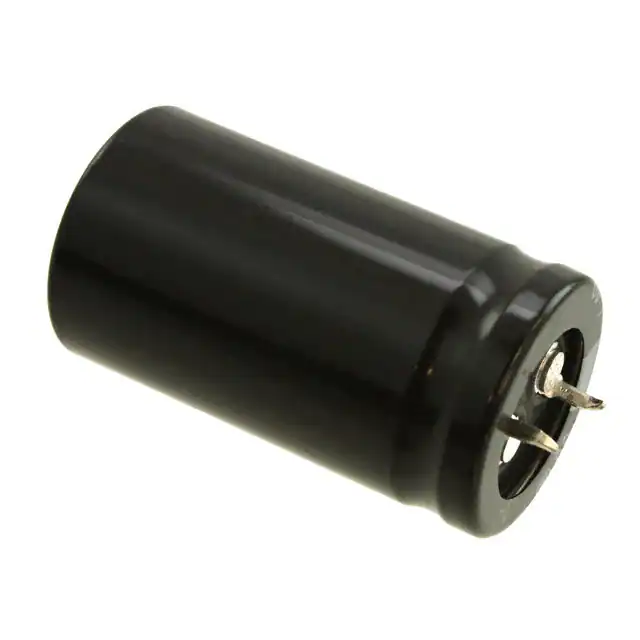

LGU2F391MELACAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.1021 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH536VCC3150M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 150 µF | ±20% | 400 V | 580mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 6.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

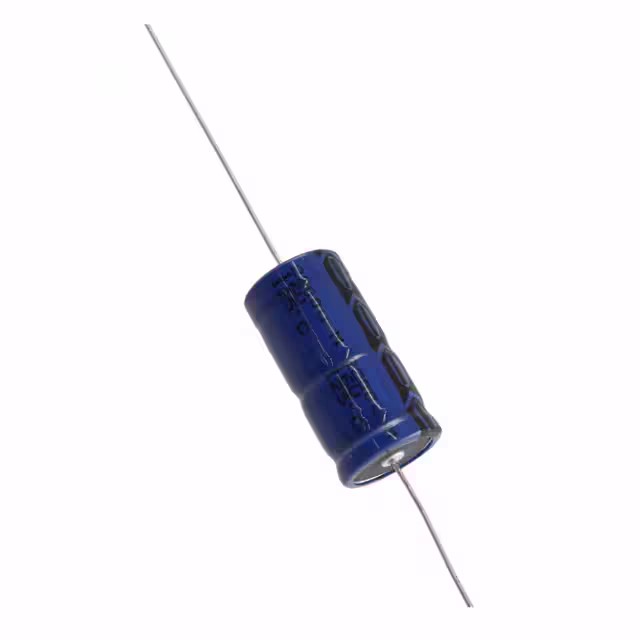

MAL212029151E3CAP ALUM 150UF 20% 100V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 150 µF | ±20% | 100 V | 266mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.48 A @ 10 kHz | 262 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
|
100VXG1500MEFC30X30CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1500 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.1735 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400HXG180MEFC30X25CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.352 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
400SXC56MEFC30X20CAP ALUM 56UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 471.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
400USC330MEFC30X35CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.87 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
450HXC150MEFC30X30CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

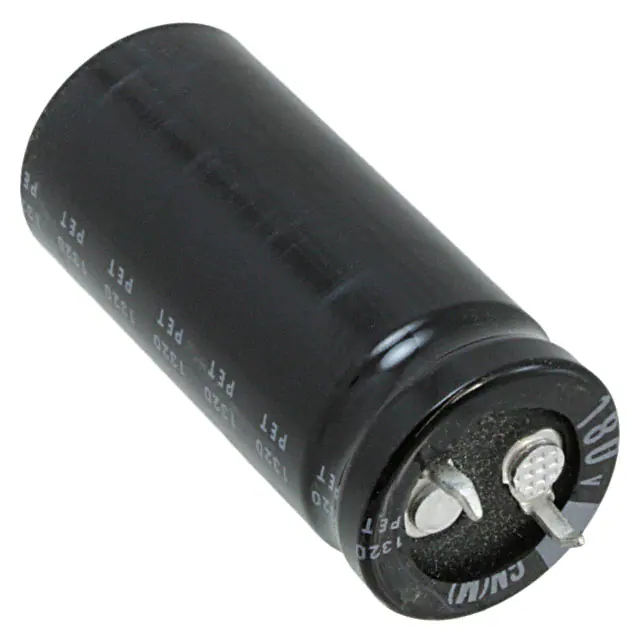

LGNW6181MELY45CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC80A161BD400CAP ALUM 160UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 160 µF | ±20% | 400 V | 761mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 3.38 A @ 10 kHz | 390 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
