Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80D161BD400CAP ALUM 160UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 160 µF | ±20% | 400 V | 761mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 3.38 A @ 10 kHz | 390 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F161BD400CAP ALUM 160UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 160 µF | ±20% | 400 V | 761mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 3.38 A @ 10 kHz | 390 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL204245339E3CAP ALUM 33UF 350V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 33 µF | -10%, +50% | 350 V | 4.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 100 Hz | - | 3.1 Ohms | 0.689" (17.50mm) | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
LSG103M1J---3540SCAP ALUM 63V POLAR |
0 |
|
- |
LSG | Active | 10 mF | ±20% | 63 V | 40mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.68 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
LSK331M2P---2555SCAP ALUM 420V POLAR |
0 |
|
- |
LSK | Active | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.244" (57.00mm) | - | Through Hole | ||
|
MAL224660332E3CAP ALUM 3300UF 20% 35V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 3300 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.015 A @ 100 Hz | 3.1 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL224661222E3CAP ALUM 2200UF 20% 50V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 2200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.5 A @ 100 Hz | 3 A @ 100 kHz | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

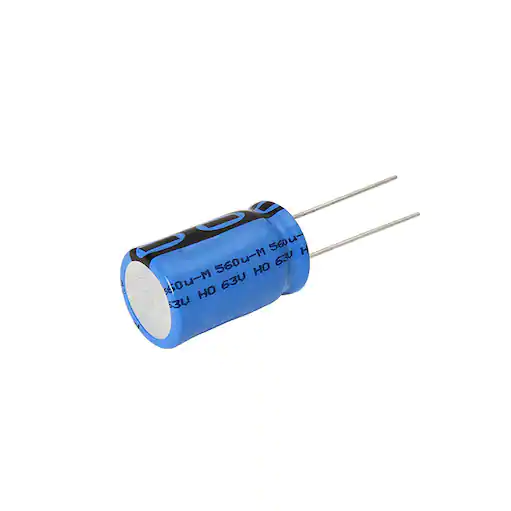

MAL224666562E3CAP ALUM 5600UF 20% 25V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 5600 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 3.1 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL224668122E3CAP ALUM 1200UF 20% 63V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 1200 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.3 A @ 100 Hz | 2.6 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
250USG470MEFCSN22X35CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.165 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

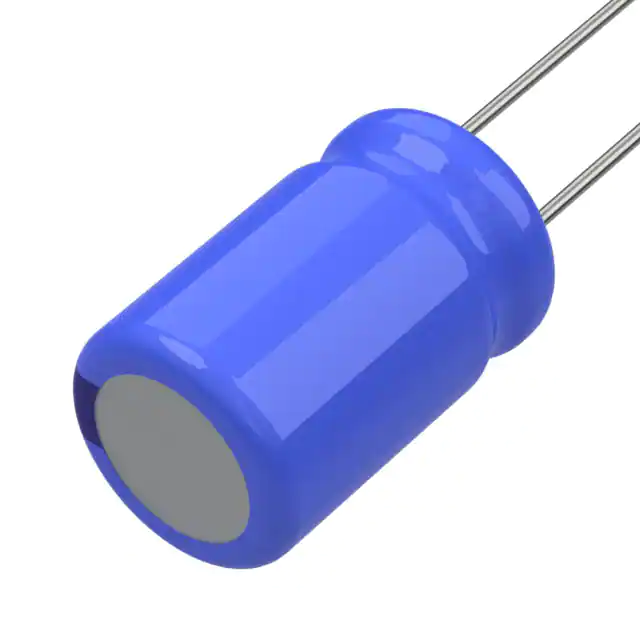

MAL226065332E3CAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
- |
260 RLA-V | Box | Active | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.4 A @ 100 Hz | 2 A @ 100 kHz | 23 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL226060102E3CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
- |
260 RLA-V | Box | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 780 mA @ 100 Hz | 1.2 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
ELG109M050AT4AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 10 mF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.64 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGNW6221MELB30CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC40D680CB450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 68 µF | ±20% | 450 V | 1.403Ohm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 100 Hz | 2.19 A @ 10 kHz | 974 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL204247229E3CAP ALUM 22UF 450V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 22 µF | -10%, +50% | 450 V | 6.8Ohm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 240 mA @ 100 Hz | - | 4.1 Ohms | 0.689" (17.50mm) | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
B43541A9157M000CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43541 | Bulk | Active | 150 µF | ±20% | 400 V | 530mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LX333M016K452CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 33000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 5.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
OLKJ4002I101MFLK_100UF_550V_18*40_20% 105 80 |
20 |
|
Datasheet |
- | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SLP182M160E9P3CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1800 µF | ±20% | 160 V | 111mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole |
