Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43547A9187M002CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43547 | Tray | Active | 180 µF | ±20% | 400 V | 290mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | - | 390 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70D121BD550CAP ALUM 120UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 120 µF | ±20% | 550 V | 3.586Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 920 mA @ 100 Hz | 1.44 A @ 10 kHz | 3.118 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSM331M2P---3045SCAP ALUM 420V POLAR |
0 |
|
- |
LSM | Active | 330 µF | ±20% | 420 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
ALC80A622CB040CAP ALUM 6200UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 6200 µF | ±20% | 40 V | 81mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.91 A @ 100 Hz | 7.22 A @ 10 kHz | 64 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D622CB040CAP ALUM 6200UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 6200 µF | ±20% | 40 V | 81mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.91 A @ 100 Hz | 7.22 A @ 10 kHz | 64 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F622CB040CAP ALUM 6200UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 6200 µF | ±20% | 40 V | 81mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.91 A @ 100 Hz | 7.22 A @ 10 kHz | 64 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LLG2D122MELC25CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 4.215 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
PEH506VBF3270M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 270 µF | ±20% | 400 V | 420mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 100 Hz | 6.7 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ271M450H052CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 270 µF | ±20% | 450 V | 740mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.42 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
SLPX331M385H3P3CAP ALUM 330UF 20% 385V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 330 µF | ±20% | 385 V | 603mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.75 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
35MXC4700MEFCSN25X25CAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 4700 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
.JPG)
|

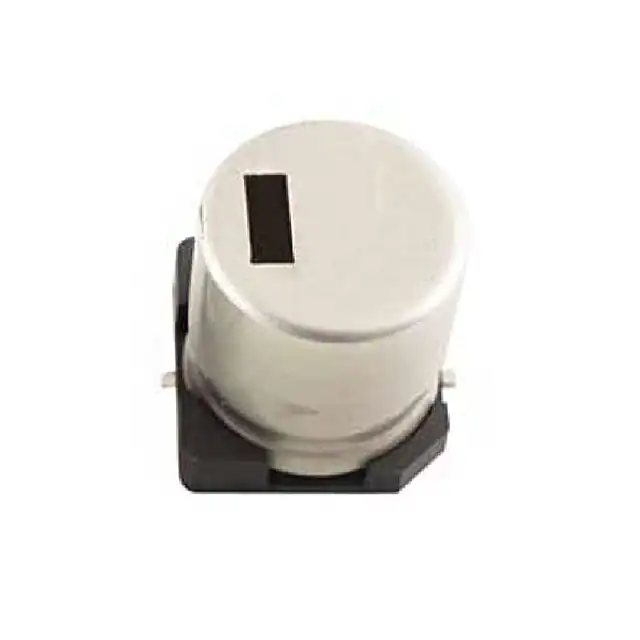

25TRV3300M18X21.5CAP ALUM 3300UF 20% 25V SMD |
0 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 3300 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 2.15 A @ 100 kHz | 39 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
380LX331M350J042CAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 330 µF | ±20% | 350 V | 600mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LR181M450H042CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Active | 180 µF | ±20% | 450 V | 1.11Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LX331M315J042CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 330 µF | ±20% | 315 V | 600mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
109TMA016MCAP ALUM 10000UF 20% 16V AXIAL |
0 |
|
Datasheet |
TMA | Bulk | Active | 10000 µF | ±20% | 16 V | 63mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.185 A @ 50 kHz | - | - | 0.866" Dia x 1.614" L (22.00mm x 41.00mm) | - | - | Through Hole | |
|
|
LSG102M2E---3540SCAP ALUM 250V POLAR |
0 |
|
- |
LSG | Active | 1 mF | ±20% | 250 V | 199mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
B43640C5227M000CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 220 µF | ±20% | 450 V | 450mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 100 Hz | - | 670 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
|
B43640C5227M007CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 220 µF | ±20% | 450 V | 450mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 100 Hz | - | 670 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
LKS1V103MESBCAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 10000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole |
