Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TVAN1205.1CAP ALUM 25UF 25V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 25 µF | - | 25 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.312" Dia x 0.687" L (7.92mm x 17.45mm) | - | - | Through Hole | |
|
30D107G050DH5CAP ALUM 100UF 50V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 100 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 1.496" L (9.50mm x 38.00mm) | - | - | Through Hole | |
|
|
511D227M035CD4DE3CAP ALUM 220UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
511D337M035CG5DCAP ALUM 330UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 330 µF | ±20% | 35 V | 677mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 468 mA @ 120 Hz | 697 mA @ 40 kHz | 310 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
LLG2Z152MELC30CAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1500 µF | ±20% | 180 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSK271M2W---3040SCAP ALUM 450V POLAR |
0 |
|
- |
LSK | Active | 270 µF | ±20% | 450 V | 737mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
381LQ181M450J042CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 180 µF | ±20% | 450 V | 1.013Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.22 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LQ472M080A022CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 4700 µF | ±20% | 80 V | 60mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70A131BD500CAP ALUM 130UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 130 µF | ±20% | 500 V | 1.548Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.05 A @ 100 Hz | 2.25 A @ 10 kHz | 1.097 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC70D131BD500CAP ALUM 130UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 130 µF | ±20% | 500 V | 1.548Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.05 A @ 100 Hz | 2.25 A @ 10 kHz | 1.097 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F131BD500CAP ALUM 130UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 130 µF | ±20% | 500 V | 1.548Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.05 A @ 100 Hz | 2.25 A @ 10 kHz | 1.097 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL213247681E3CAP ALUM 680UF 40V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 680 µF | -10%, +50% | 40 V | 210mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 100 Hz | - | - | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL213849331E3CAP ALUM 330UF 20% 100V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 330 µF | ±20% | 100 V | 380mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 880 mA @ 100 Hz | - | 240 mOhms | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EKMS201VSN102MR30SCAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 3.78 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
|
TE1166-E3CAP ALUM 350UF 16V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 350 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.496" L (9.00mm x 38.00mm) | - | - | Through Hole | |
|
|
30D107M100DH2AE3CAP ALUM 100UF 20% 100V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 100 µF | ±20% | 100 V | 1.609Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 386 mA @ 120 Hz | 617.6 mA @ 100 kHz | - | - | 0.374" Dia x 1.496" L (9.50mm x 38.00mm) | - | - | Through Hole | |
|
|
80USC4700MEFC35X30CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 4.922 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250VXH680MEFC25X40CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 680 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

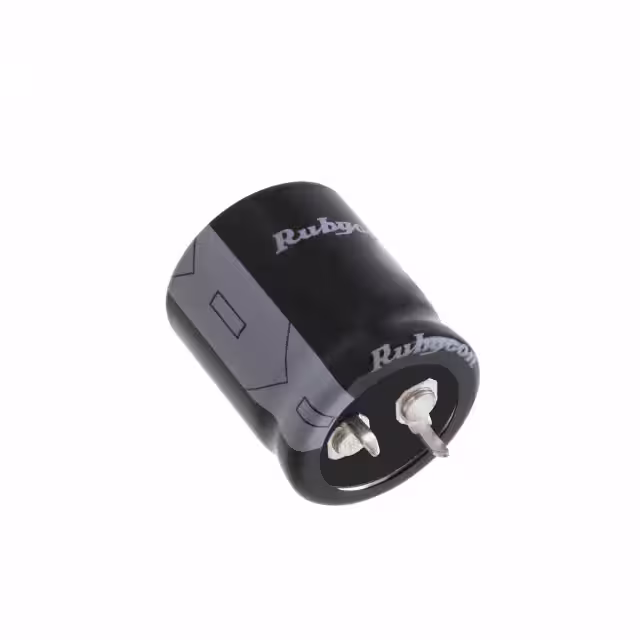

35MXG3900MEFCSN22X25CAP ALUM 3900UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 3900 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.047 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
400SXG82MEFC20X30CAP ALUM 82UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 82 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole |
