Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420USG270MEFCSN25X35CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
510D476M035CC3DCAP ALUM 47UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
511D566M100CG4DCAP ALUM 56UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 56 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
TVAN1303.4CAP ALUM 8UF 50V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 8 µF | - | 50 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.250" Dia x 0.687" L (6.35mm x 17.45mm) | - | - | Through Hole | |
|
|
ELG157M450AS2AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.0875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALA8AD271CC400CAP ALUM 400V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 270 µF | ±20% | 400 V | 558mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 100 Hz | 4.7 A @ 10 kHz | 326 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8AF271CC400CAP ALUM 400V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 270 µF | ±20% | 400 V | 558mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 100 Hz | 4.7 A @ 10 kHz | 326 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
50MXG2700MEFCSN22X25CAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 2700 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 1.9895 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
80MXG3900MEFCSN25X45CAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 3900 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.97 A @ 120 Hz | 3.4155 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43643C5227M052CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43643 | Bulk | Active | 220 µF | ±20% | 450 V | 500mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 100 Hz | - | 770 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMT421VSN121MQ25SCAP ALUM 120UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMT | Bulk | Active | 120 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.5587 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.083" (27.50mm) | - | Through Hole | |
|
380LX682M063A022CAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 60mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | 6.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
200SXC820MEFCSN30X35CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.4898 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELH158M160AT3AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 1.5 mF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 5.55 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ102M200K022CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
510D107M025CG3DCAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.945" (24.00mm) | - | Through Hole | |
|
ALC70A271CB350CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 270 µF | ±20% | 350 V | 514mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.51 A @ 100 Hz | 3.84 A @ 10 kHz | 266 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D271CB350CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 270 µF | ±20% | 350 V | 514mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.51 A @ 100 Hz | 3.84 A @ 10 kHz | 266 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F271CB350CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 270 µF | ±20% | 350 V | 514mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.51 A @ 100 Hz | 3.84 A @ 10 kHz | 266 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

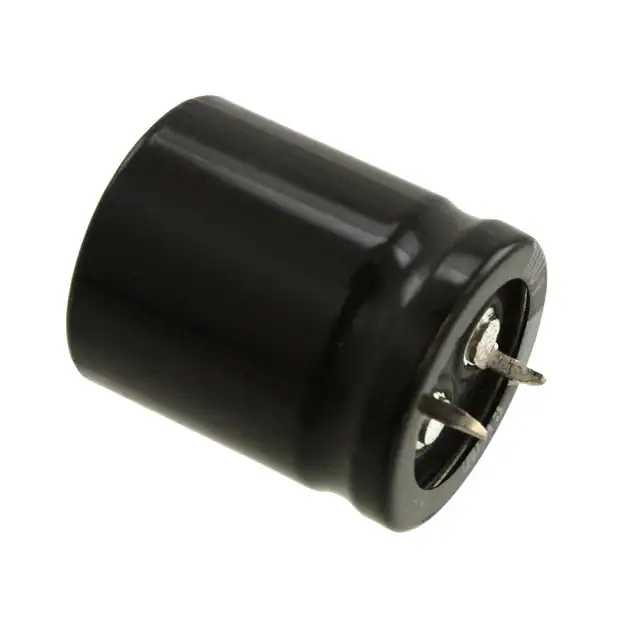

LKX2E391MESA30CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 390 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.3 A @ 120 Hz | 1.95 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
