Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
385MXC56MEFC20X25CAP ALUM 56UF 20% 385V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 56 µF | ±20% | 385 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 588 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
35USC18000MEFCSN30X40CAP ALUM 18000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 18000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 6.555 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70D471CB250CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 250 V | 386mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.84 A @ 100 Hz | 4.01 A @ 10 kHz | 223 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F471CB250CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 250 V | 386mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.84 A @ 100 Hz | 4.01 A @ 10 kHz | 223 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

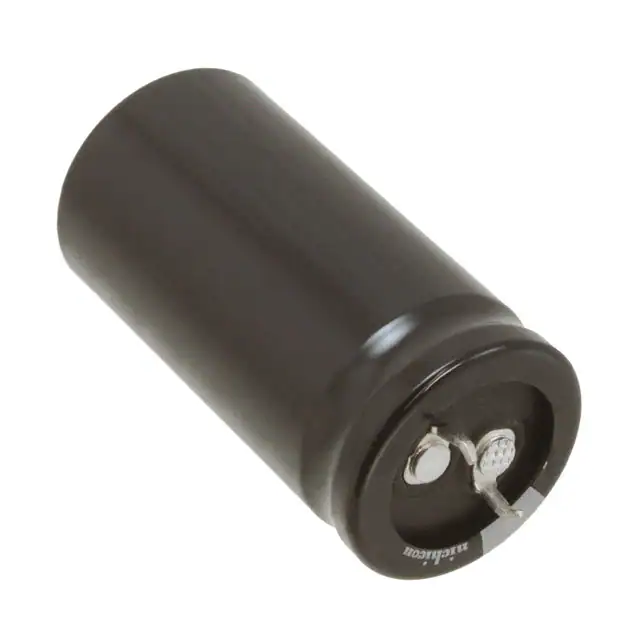

LGG2Z152MELA50CAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1500 µF | ±20% | 180 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGJ2D471MELCCAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 2.115 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LGJ2F151MELC15CAP ALUM 150UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 150 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 858 mA @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
MAL213246102E3CAP ALUM 1000UF 25V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 1000 µF | -10%, +50% | 25 V | 170mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | - | - | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
380LQ681M250K022CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH526MBD422AM3CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH526 | Box | Active | 2.2 mF | ±20% | 63 V | 59mOhm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 2.2 A @ 100 Hz | 10 A @ 5 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH526HBD4680M3CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH526 | Box | Active | 6.8 mF | ±20% | 25 V | 24mOhm @ 100Hz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 3.4 A @ 100 Hz | 14.4 A @ 5 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEG124VD1470QT1CAP ALUM AXL GEN PUR 105C |
0 |
|
Datasheet |
PEG124 | Tape & Reel (TR) | Active | 4.7 µF | -10%, +30% | 400 V | 11Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 78 mA @ 100 Hz | 210 mA @ 5 kHz | - | - | 0.512" Dia x 1.142" L (13.00mm x 29.00mm) | - | - | Through Hole | |
|
|
ALC70A202CB100CAP ALUM 2000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 100 V | 128mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.63 A @ 100 Hz | 5.2 A @ 10 kHz | 100 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D202CB100CAP ALUM 2000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 100 V | 128mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.63 A @ 100 Hz | 5.2 A @ 10 kHz | 100 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D472CB063CAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 4700 µF | ±20% | 63 V | 81mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | 6.15 A @ 10 kHz | 61 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70F202CB100CAP ALUM 2000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 2000 µF | ±20% | 100 V | 128mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.63 A @ 100 Hz | 5.2 A @ 10 kHz | 100 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70F472CB063CAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 4700 µF | ±20% | 63 V | 81mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | 6.15 A @ 10 kHz | 61 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMS421VSN221MR30SCAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.6874 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
|
ALA8AD221BD450CAP ALUM 450V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 220 µF | ±20% | 450 V | 638mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | 3.5 A @ 10 kHz | 372 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA8AF221BD450CAP ALUM 450V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 220 µF | ±20% | 450 V | 638mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | 3.5 A @ 10 kHz | 372 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
