Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH534RBF3680M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 680 µF | ±20% | 200 V | 200mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | 8.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
180MXG1200MEFCSN22X60CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.09 A @ 120 Hz | 4.635 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
200SXC560MEFC22X45CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.888 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
220MXC680MEFC30X30CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 680 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.73 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250MXC820MEFC35X35CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250MXG820MEFCSN35X30CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
315MXC560MEFC35X35CAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
315VXR180MEFC22X40CAP ALUM 180UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 180 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
400SXG47MEFC20X20CAP ALUM 47UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 560 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
450NXG220MEFC25X45CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 220 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
500VXG100MEFC25X35CAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 100 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.316 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
50USC5600MEFC25X35CAP ALUM 5600UF 20% 50V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 5600 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.43 A @ 120 Hz | 3.9445 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UVR2G221MRDCAP ALUM 220UF 20% 400V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.2 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
200VXR1000MEFCSN30X40CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 1000 µF | ±20% | 200 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

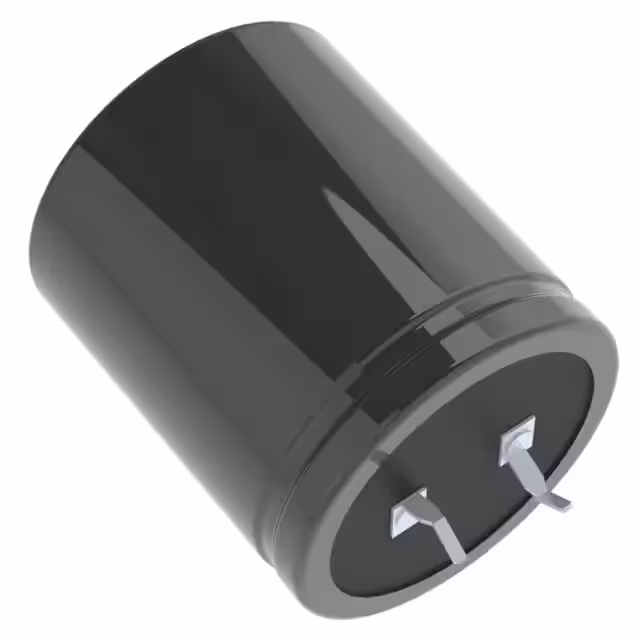

LKS1V103MESCCAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 10000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LKS1V123MESBCAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 12000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.25 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LKSA2103MESBCAP ALUM 10000UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 10000 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKSH2392MESCCAP ALUM 3900UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3900 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LKSN2562MESCCAP ALUM 5600UF 20% 56V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 56 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43545B5187M000CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43545 | Tray | Active | 180 µF | ±20% | 450 V | 500mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 100 Hz | - | 760 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole |
