Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP221M420E5P3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 220 µF | ±20% | 420 V | 1.508Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.62 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX391M350H3P3CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.38 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
PEH532UBG3330M3CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 330 µF | ±20% | 350 V | 400mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | 3.2 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH532YCC3180M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 180 µF | ±20% | 450 V | 520mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 2.6 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1E332MESCCKCAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

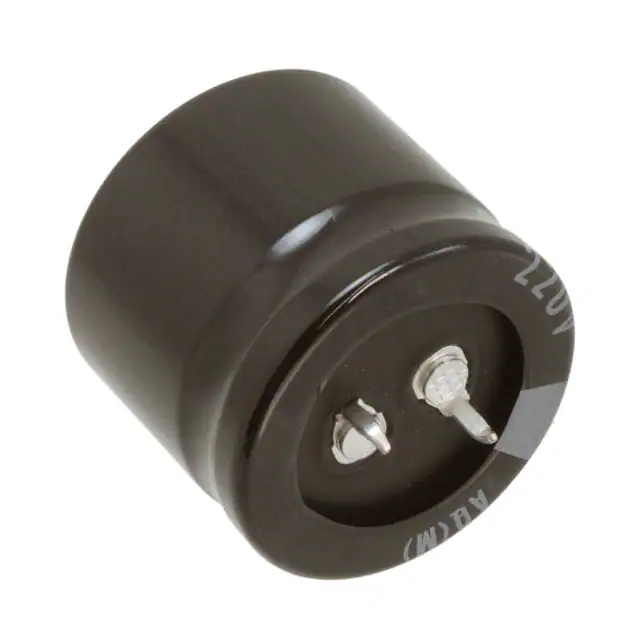

LAQ2P331MELB25CAP ALUM 330UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 330 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.44 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
510DX337M025DG2DCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 330 µF | ±20% | 25 V | 442mOhm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 661 mA @ 120 Hz | 927 mA @ 40 kHz | 202 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
511D277M050DG5DCAP ALUM 270UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 270 µF | ±20% | 50 V | 221mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 567 mA @ 120 Hz | 937 mA @ 40 kHz | 231 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
672D106H100CD5CCAP ALUM 10UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 10 µF | - | 100 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
672D107F012CC5DCAP ALUM 100UF 12V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | -10%, +50% | 12 V | 1.6Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 400 mA @ 100 kHz | 700 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
672D107F015CD5DCAP ALUM 100UF 15V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | -10%, +50% | 15 V | 1.35Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 500 mA @ 100 kHz | 500 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
|
672D107H7R5CC5CCAP ALUM 100UF 7.5V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | - | 7.5 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
672D107M025CC3DCAP ALUM 100UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | - | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
672D107M025CC4DCAP ALUM 100UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | - | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole | |
|
672D156H060CD5CCAP ALUM 15UF 60V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 15 µF | - | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
|
672D157F6R3CD5DCAP ALUM 150UF 6.3V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 150 µF | -10%, +50% | 6.3 V | 1.1Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
|
672D157H6R3CD5CCAP ALUM 150UF 6.3V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 150 µF | - | 6.3 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
|
672D226F100CD2DCAP ALUM 22UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 22 µF | -10%, +50% | 100 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
672D336F100CG4DCAP ALUM 33UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 33 µF | -10%, +50% | 100 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
672D476F025CC5DCAP ALUM 47UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 47 µF | -10%, +50% | 25 V | 2.35Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 400 mA @ 100 kHz | 850 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
