Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225932681E3CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 680 µF | ±20% | 200 V | 200mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.38 A @ 100 Hz | 3.57 A @ 10 kHz | 140 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225972681E3CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 680 µF | ±20% | 200 V | 200mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.38 A @ 100 Hz | 3.57 A @ 10 kHz | 140 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225787151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 150 µF | ±20% | 450 V | 1.24Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 1.652 A @ 10 kHz | 1.03 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225767151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 150 µF | ±20% | 450 V | 1.19Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | 1.68 A @ 10 kHz | 980 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225737151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 150 µF | ±20% | 450 V | 1.24Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 1.652 A @ 10 kHz | 1.03 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225942681E3CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 680 µF | ±20% | 200 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.61 A @ 100 Hz | 3.915 A @ 10 kHz | 110 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
420MXK270MEFC25X35CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXS251VSN821MQ45SCAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 820 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.39 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.870" (47.50mm) | - | Through Hole | |
|

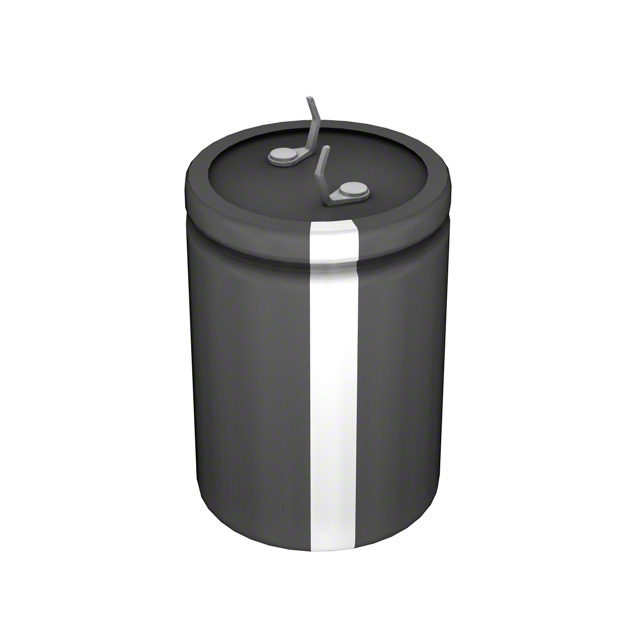

LP391M200C5P3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 390 µF | ±20% | 200 V | 640mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.372 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
ALC40C151DD450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 150 µF | ±20% | 450 V | 651mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | 3.53 A @ 10 kHz | 454 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EKMS201VSN122MQ45SCAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.73 A @ 120 Hz | 4.095 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
PEH534RCD3680M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 680 µF | ±20% | 200 V | 200mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 10.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXS181VSN152MR40SCAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1500 µF | ±20% | 180 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.26 A @ 120 Hz | 4.89 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
385USC270MEFC22X50CAP ALUM 270UF 20% 385V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 270 µF | ±20% | 385 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.24 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
450VXH220MEFC22X45CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 220 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.016 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450HXC180MEFC35X25CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.254 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
50MXC8200MEFC35X30CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 8200 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKX2W181MESA40CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL212046152E3CAP ALUM 1500UF 20% 25V TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 1500 µF | ±20% | 25 V | 49mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.89 A @ 10 kHz | 46 mOhms | 0.325" (8.25mm) | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
UVY1E223MRDCAP ALUM 22000UF 20% 25V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 22000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 3.7375 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole |
