Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

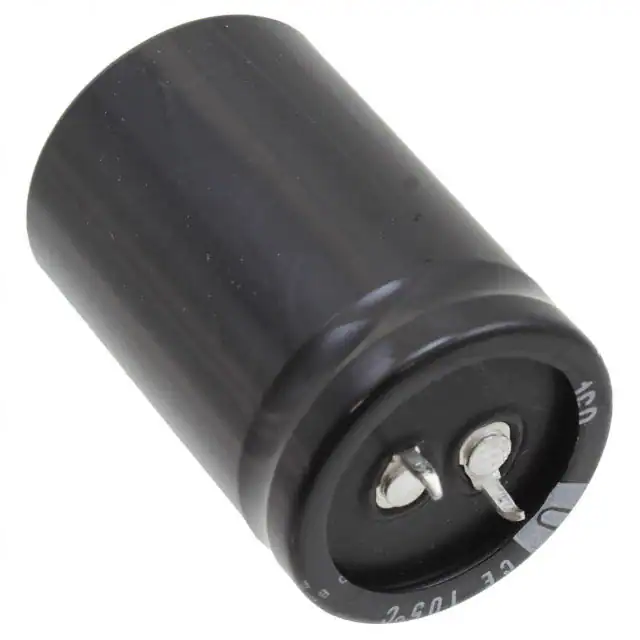

LGU2Z152MELBCAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 1500 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
220USG820MEFCSN22X45CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 4.215 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
385USC390MEFCSN25X50CAP ALUM 390UF 20% 385V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 390 µF | ±20% | 385 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.856 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

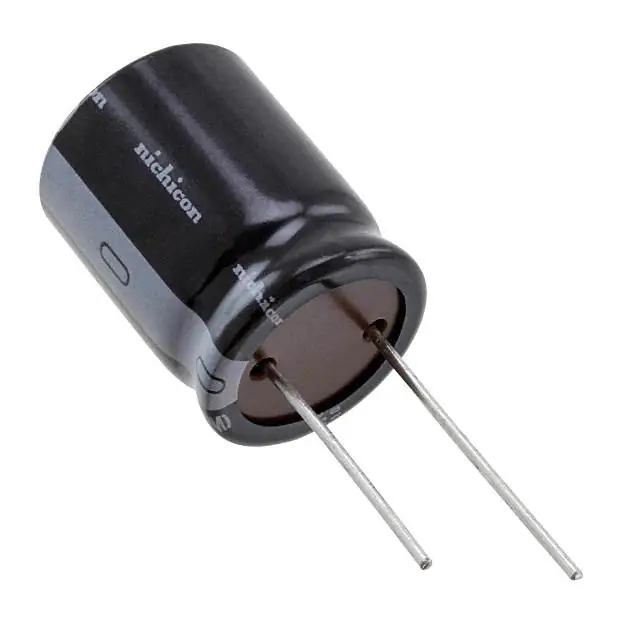

URS2G680MRDCAP ALUM 68UF 20% 400V RADIAL TH |
12 |
|
Datasheet |
URS | Bulk | Obsolete | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 784 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|

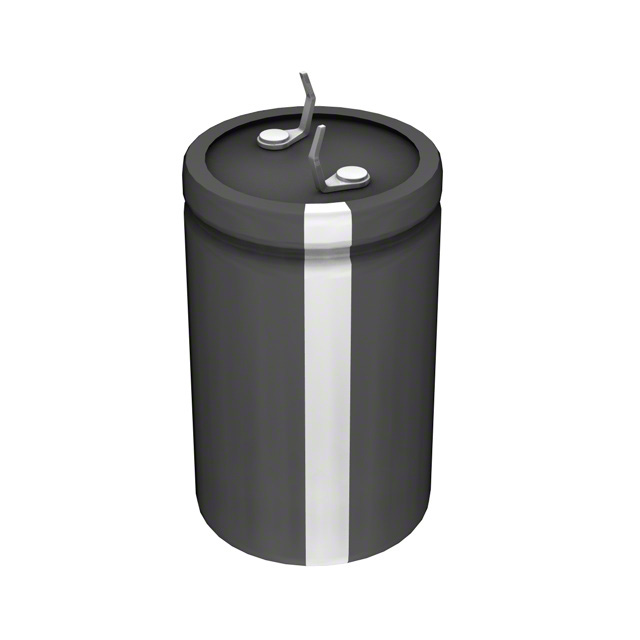

LP222M050A5P3CAP ALUM 2200UF 20% 50V SNAP TH |
1 |
|
Datasheet |
LP | Bulk | Active | 2200 µF | ±20% | 50 V | 151mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.463 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LSM561M2V---3050SCAP ALUM 350V POLAR |
0 |
|
- |
LSM | Active | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
LLS2Z182MELBCAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.55 A @ 120 Hz | 6.825 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ESMH351VSN821MA50SCAP ALUM 820UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 820 µF | ±20% | 350 V | 303mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.04 A @ 120 Hz | 4.3472 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1E392MESBCKCAP ALUM 3900UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS2V681MELBCAP ALUM 680UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 680 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 4.5045 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B41505A3339M000CAP ALUM 33000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 33000 µF | ±20% | 10 V | 19mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | - | 20 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSK561M2F---3050SCAP ALUM 315V POLAR |
0 |
|
- |
LSK | Active | 560 µF | ±20% | 315 V | 355mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
ALC70A131CB500CAP ALUM 130UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 130 µF | ±20% | 500 V | 1.541Ohm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 2.41 A @ 10 kHz | 1.09 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D131CB500CAP ALUM 130UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 130 µF | ±20% | 500 V | 1.541Ohm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 2.41 A @ 10 kHz | 1.09 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F131CB500CAP ALUM 130UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 130 µF | ±20% | 500 V | 1.541Ohm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 2.41 A @ 10 kHz | 1.09 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

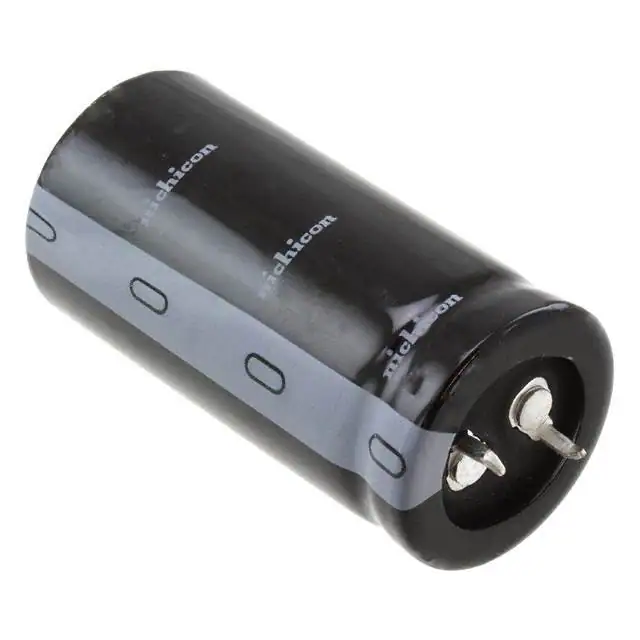

LQSW6331MELA50CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.0306 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMS161VSN182MQ50SCAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1800 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 5.1 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
MAL225933471E3CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 470 µF | ±20% | 250 V | 230mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.17 A @ 100 Hz | 3.255 A @ 10 kHz | 150 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225742821E3CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 820 µF | ±20% | 200 V | 190mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.71 A @ 100 Hz | 3.794 A @ 10 kHz | 140 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225966181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 180 µF | ±20% | 400 V | 770mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 1.77 A @ 10 kHz | 570 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
