Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

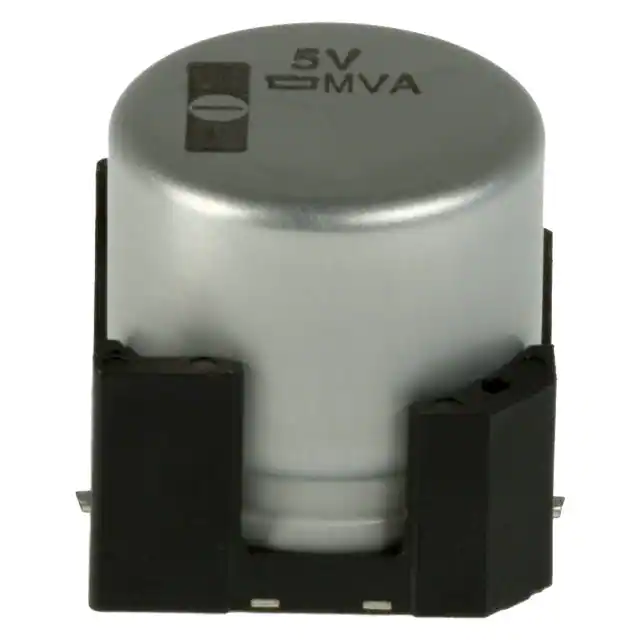

EMVA630GDA471MLH0SCAP ALUM 470UF 20% 63V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.425 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
ALF40C121DC450CAP ALUM 120UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 120 µF | ±20% | 450 V | 810mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | 3.11 A @ 10 kHz | 565 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
ALC70A510BB600CAP ALUM 51UF 20% 600V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 51 µF | ±20% | 600 V | 2.496Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 720 mA @ 100 Hz | 1.6 A @ 10 kHz | 1.723 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LQ391M350J452CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLP221M420H1P3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 220 µF | ±20% | 420 V | 1.508Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.62 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
510DX157M016BD2DCAP ALUM 150UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 150 µF | ±20% | 16 V | 1.415Ohm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 409 mA @ 40 kHz | 494 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
|
510DX227M010BD2DCAP ALUM 220UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 220 µF | ±20% | 10 V | 1.507Ohm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 247 mA @ 120 Hz | 417 mA @ 40 kHz | 475 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.709" (18.00mm) | - | Through Hole | |
|
|
511D107M025CC3DCAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
511D226M035AA2DCAP ALUM 22UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
511D476M063CD3DCAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 47 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
|
511D687M035DK4DCAP ALUM 680UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 680 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
672D107F020CG4ICAP ALUM 100UF 20V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | -10%, +50% | 20 V | 1.25Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 700 mA @ 100 kHz | 350 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
672D157F015CG4ICAP ALUM 150UF 15V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 150 µF | -10%, +50% | 15 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
672D506H040CD5CCAP ALUM 50UF 40V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 50 µF | - | 40 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
|
510DX476M063CC2DCAP ALUM 47UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 47 µF | ±20% | 63 V | 1.975Ohm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 404 mA @ 40 kHz | 578 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
ELH338M100AT2AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 3.3 mF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
757D227M025CC4DCAP ALUM 220UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
757D | Bulk | Active | 220 µF | ±20% | 25 V | 493mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 907 mA @ 40 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole | |
|
ELXM161VSN122MA30SCAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1200 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 3.78 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL219326151E3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 150 µF | ±20% | 400 V | 530mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 100 Hz | 1.665 A @ 10 kHz | 300 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL219316151E3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 150 µF | ±20% | 400 V | 540mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 1.65 A @ 10 kHz | 310 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
