Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL219336151E3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 150 µF | ±20% | 400 V | 570mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | 1.695 A @ 10 kHz | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL219376151E3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 150 µF | ±20% | 400 V | 570mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | 1.695 A @ 10 kHz | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL219356151E3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 150 µF | ±20% | 400 V | 540mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 1.65 A @ 10 kHz | 310 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450VXR150MEFCSN30X40CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.106 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLG2G471MELA50CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 3.0459 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43642E2827M000CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 820 µF | ±20% | 250 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | - | 150 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL213848102E3CAP ALUM 1000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 1000 µF | ±20% | 63 V | 130mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.46 A @ 100 Hz | - | 110 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL212015332E3CAP ALUM 3300UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 3300 µF | ±20% | 16 V | 41mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 3.43 A @ 10 kHz | 43 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
MAL211919221E3CAP ALUM 220UF 100V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 220 µF | -10%, +50% | 100 V | 720mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 710 mA @ 100 Hz | - | 550 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|

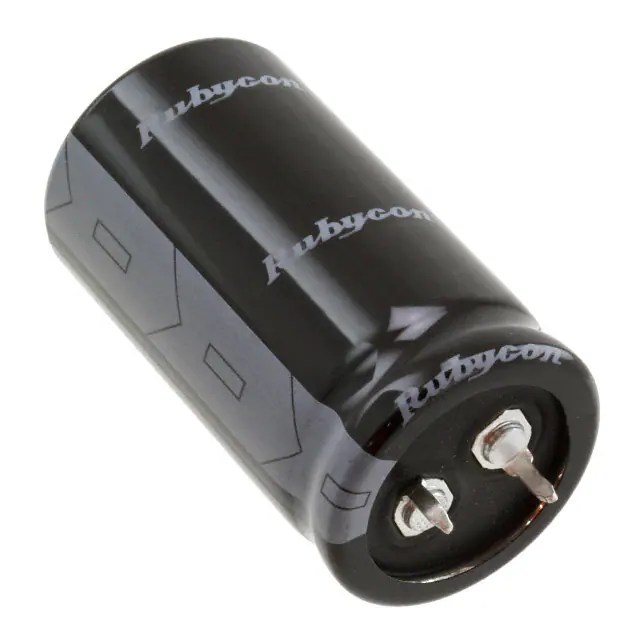

250MXC820MEFCSN25X50CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAK2D821MELC35CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.388 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSK471M2F---3045SCAP ALUM 315V POLAR |
0 |
|
- |
LSK | Active | 470 µF | ±20% | 315 V | 423mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
63MXC8200MEFCSN35X45CAP ALUM 8200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 8200 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43504A2687M000CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 680 µF | ±20% | 250 V | 190mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EKHS4H1VSN121MQ30SCAP ALUM 120UF 20% 475V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 120 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.2727 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ELXS181VSN182MR45SCAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1800 µF | ±20% | 180 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.66 A @ 120 Hz | 5.49 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
LSG123M1J---3545SCAP ALUM 63V POLAR |
0 |
|
- |
LSG | Active | 12 mF | ±20% | 63 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.4 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
GS2G331MND3531CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
GS | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.299" (33.00mm) | - | Through Hole | ||
|

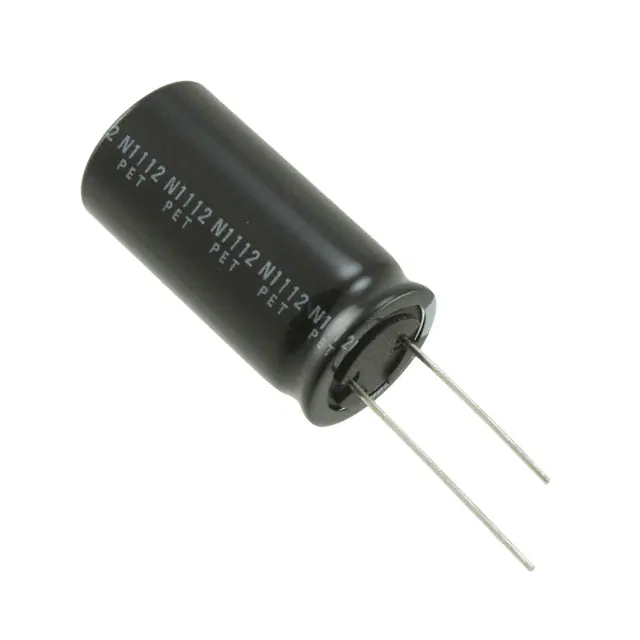

400KXW180MEFC18X40CAP ALUM 180UF 20% 400V RADIAL |
0 |
|
Datasheet |
KXW | Bulk | Obsolete | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.32 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMS181VSN122MA25SCAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 120 Hz | 4.365 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole |
