Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
475VXT220MEFCSN30X25CAP ALUM 220UF 20% 475V SNAP TH |
0 |
|
Datasheet |
VXT | Bulk | Active | 220 µF | ±20% | 475 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

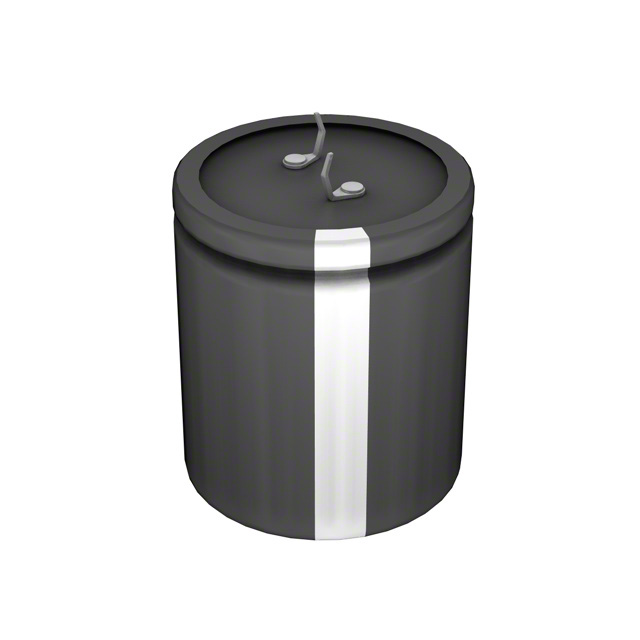

LP123M035H7P3CAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 12000 µF | ±20% | 35 V | 35mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.59 A @ 120 Hz | 3.949 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
B43642A5277M002CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 270 µF | ±20% | 450 V | 310mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 440 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL225732102E3CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 1000 µF | ±20% | 200 V | 170mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 100 Hz | 3.976 A @ 10 kHz | 130 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225782102E3CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 1000 µF | ±20% | 200 V | 170mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 100 Hz | 3.976 A @ 10 kHz | 130 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225772102E3CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 1000 µF | ±20% | 200 V | 160mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.11 A @ 100 Hz | 4.354 A @ 10 kHz | 110 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B41605E7688M2CAP ALUM 6800UF 20% 40V SNAP TH |
0 |
|
- |
B41605 | Bulk | Active | 6800 µF | ±20% | 40 V | 16mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 9 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH506RCE4100M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 1 mF | ±20% | 200 V | 160mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 8.1 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH506RDD4100M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 1 mF | ±20% | 200 V | 170mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 7.2 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43544E5337M002CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
- |
B43544 | Bulk | Active | 330 µF | ±20% | 450 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 100 Hz | - | 470 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLP153M050H9P3CAP ALUM 15000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 15000 µF | ±20% | 50 V | 31mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
SLP271M420E7P3CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 270 µF | ±20% | 420 V | 1.229Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.84 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
SLP271M420H3P3CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 270 µF | ±20% | 420 V | 1.229Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.79 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SKA102M035CAP ALUM 1000UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
SKA | Bulk | Obsolete | 1000 µF | ±20% | 35 V | 180mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 992 mA @ 120 Hz | 1.1408 A @ 1 kHz | - | - | 0.512" Dia x 1.260" L (13.00mm x 32.00mm) | - | - | Through Hole | |
|
LKG1C822MESCCKCAP ALUM 8200UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 8200 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX271M450K452CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 270 µF | ±20% | 450 V | 680mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELXM181VSN152MR50SCAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1500 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.03 A @ 120 Hz | 4.545 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMQ281VSN152MA55SCAP ALUM 1500UF 20% 280V SNAP TH |
0 |
|
Datasheet |
KMQ | Bulk | Active | 1500 µF | ±20% | 280 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
ELG158M200AT5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 1.5 mF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
678D108M6R3DG3DCAP ALUM 1000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 6.3 V | 200mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 581 mA @ 120 Hz | 830 mA @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole |
