Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
678D117H050DG5DCAP ALUM 110UF 50V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 110 µF | - | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
678D337M025DG3DCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 330 µF | ±20% | 25 V | 270mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 553 mA @ 120 Hz | 790 mA @ 100 kHz | 76 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
678D337M025DG3OCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 330 µF | ±20% | 25 V | 270mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 553 mA @ 120 Hz | 790 mA @ 100 kHz | 76 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
678D337M025DG4DCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 330 µF | ±20% | 25 V | 270mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 553 mA @ 120 Hz | 790 mA @ 100 kHz | 76 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
678D337M025DG4JCAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 330 µF | ±20% | 25 V | 270mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 553 mA @ 120 Hz | 790 mA @ 100 kHz | 76 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
678D397M025DG3JCAP ALUM 390UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 390 µF | ±20% | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
678D477M020DG3DCAP ALUM 470UF 20% 20V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 470 µF | ±20% | 20 V | 250mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | 450 mA @ 100 kHz | 75 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
678D477M025DG4DCAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 470 µF | ±20% | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
510DX157M035CD2DCAP ALUM 150UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 150 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
UVR1C223MRD6CAP ALUM 22000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.6 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EMVA100GDA682MMN0SCAP ALUM 6800UF 20% 10V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 1.998 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
220USC560MEFC25X35CAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 560 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.57 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
315MXC150MEFC20X35CAP ALUM 150UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 150 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
400USG220MEFC25X30CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 2.212 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

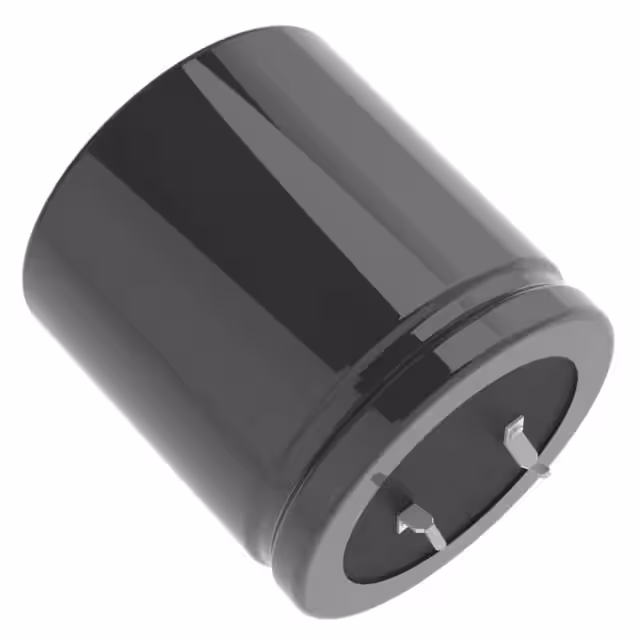

420USH390MEFC30X30CAP ALUM 390UF 20% 420V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.178 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80D561CD250CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 560 µF | ±20% | 250 V | 311mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 100 Hz | 5.43 A @ 10 kHz | 182 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F561CD250CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 560 µF | ±20% | 250 V | 311mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 100 Hz | 5.43 A @ 10 kHz | 182 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LP333M016H9P3CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 33000 µF | ±20% | 16 V | 20mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5 A @ 120 Hz | 5.5 mA @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
AXLH471P063EDCAP ALUM 470UF 63V AXIAL TH |
0 |
|
Datasheet |
AXLH | Bulk | Obsolete | 470 µF | -10%, +30% | 63 V | 125mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | - | High Temperature Reflow | 1.925 A @ 100 Hz | 5.5 A @ 5 kHz | - | - | 0.787" Dia x 1.063" L (20.00mm x 27.00mm) | - | - | Through Hole | |
|
ELXS421VSN391MR45SCAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 390 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole |
