Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500D108H016EH5E3CAP ALUM 1000UF 16V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 1000 µF | - | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|

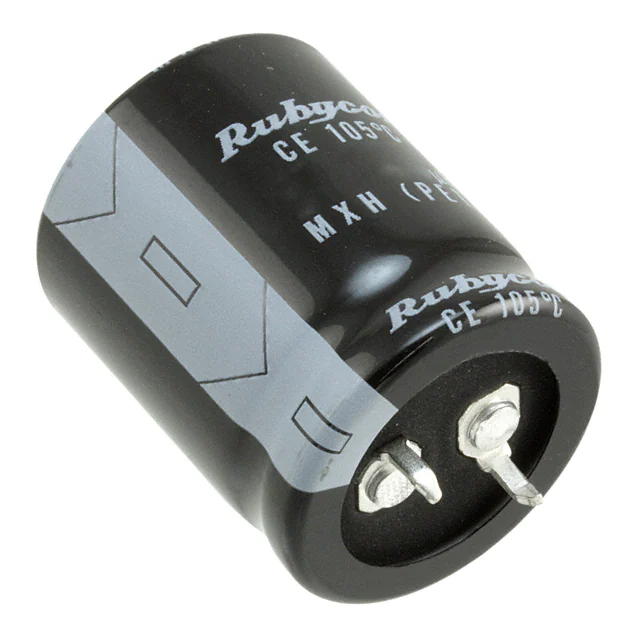

450MXH150MEFCSN25X30CAP ALUM 150UF 20% 450V SNAP TH |
1 |
|
Datasheet |
MXH | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450VXR180MEFCSN35X35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 180 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
477LBB350M2DFCAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 470 µF | ±20% | 350 V | 529.11mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.381 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALA7DD431CD400CAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 430 µF | ±20% | 400 V | 408.6mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.39 A @ 100 Hz | 5.46 A @ 10 kHz | 426 mOhms | - | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXM401VSN331MA35SCAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 330 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.1164 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX272M160H9P3CAP ALUM 2700UF 20% 160V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 2700 µF | ±20% | 160 V | 74mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.57 A @ 120 Hz | 8.19 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
450USG180MEFC30X25CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC70A912EB063CAP ALUM 9100UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 63 V | 57mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.46 A @ 100 Hz | 6.53 A @ 10 kHz | 47 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70C912EB063CAP ALUM 9100UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 63 V | 57mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.46 A @ 100 Hz | 6.53 A @ 10 kHz | 47 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D912EB063CAP ALUM 9100UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 63 V | 57mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.46 A @ 100 Hz | 6.53 A @ 10 kHz | 47 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70E912EB063CAP ALUM 9100UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 63 V | 57mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.46 A @ 100 Hz | 6.53 A @ 10 kHz | 47 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F912EB063CAP ALUM 9100UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 9100 µF | ±20% | 63 V | 57mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.46 A @ 100 Hz | 6.53 A @ 10 kHz | 47 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKX2E561MESC25CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400MXH330MEFCSN22X50CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALO8AA461DB400CAP ALUM 105C 460UF 400VDC |
0 |
|
Datasheet |
ALO8A | Tray | Active | 460 µF | ±20% | 400 V | 384.2mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.88 A @ 100 Hz | 3.46 A @ 10 kHz | 213.2 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole, Press-Fit | |
|
|
B43641A9397M057CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43641 | Bulk | Active | 390 µF | ±20% | 400 V | 240mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 100 Hz | - | 360 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B43641B9397M050CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43641 | Bulk | Active | 390 µF | ±20% | 400 V | 260mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | - | 380 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
50MXG8200MEFCSN30X35CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 8200 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH532YBE3180M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 180 µF | ±20% | 450 V | 520mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 2.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
