Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

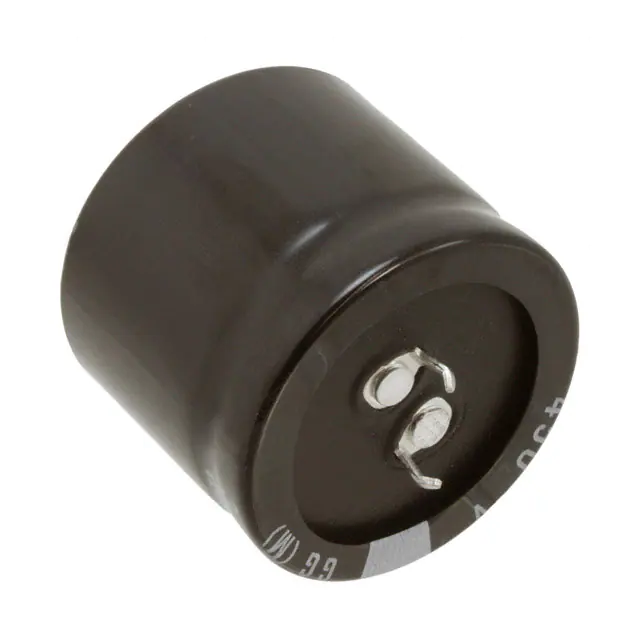

LGGW6331MELC30CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.633 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX152M160A032CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 5.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PEH532VBE3220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 220 µF | ±20% | 400 V | 510mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | 2.7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
220MXG1000MEFCSN25X50CAP ALUM 1000UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1000 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 4.08 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43634B9337M000CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43634 | Bulk | Active | 330 µF | ±20% | 400 V | 330mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | - | 510 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL212046222E3CAP ALUM 2200UF 20% 25V TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 2200 µF | ±20% | 25 V | 43mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 3.31 A @ 10 kHz | 44 mOhms | 0.364" (9.25mm) | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
|
MAL212048471E3CAP ALUM 470UF 20% 63V TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 470 µF | ±20% | 63 V | 81mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.86 A @ 10 kHz | 74 mOhms | 0.364" (9.25mm) | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
MAL205855332E3CAP ALUM 3300UF 20% 16V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 3300 µF | ±20% | 16 V | 86mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | - | 57 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205875332E3CAP ALUM 3300UF 20% 16V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 3300 µF | ±20% | 16 V | 86mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | - | 57 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
50VXG8200MEFC35X40CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 8200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 3.864 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
160MXG1500MEFCSN25X45CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1500 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.2 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
400KXF56MEFC20X20CAP ALUM 56UF 20% 400V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 56 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 560 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ALC70A822DC063CAP ALUM 8200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 8200 µF | ±20% | 63 V | 52.58mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.79 A @ 100 Hz | 7.5 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

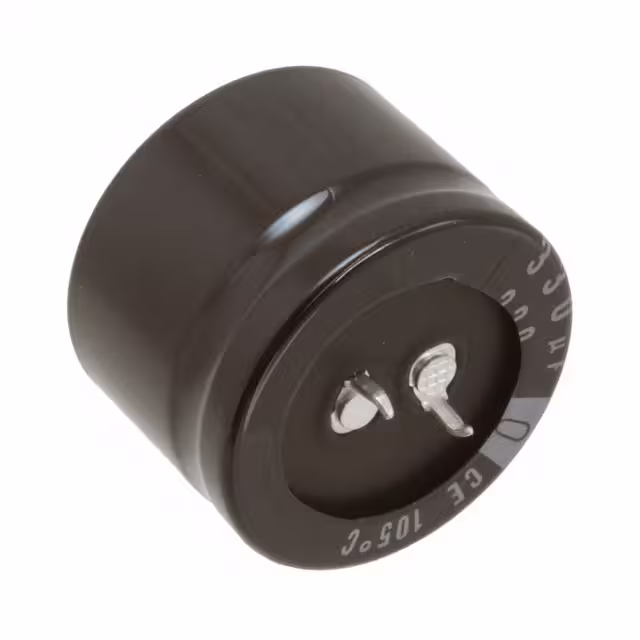

LAQ2D681MELC25CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LAQ2G181MELB30CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.0925 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

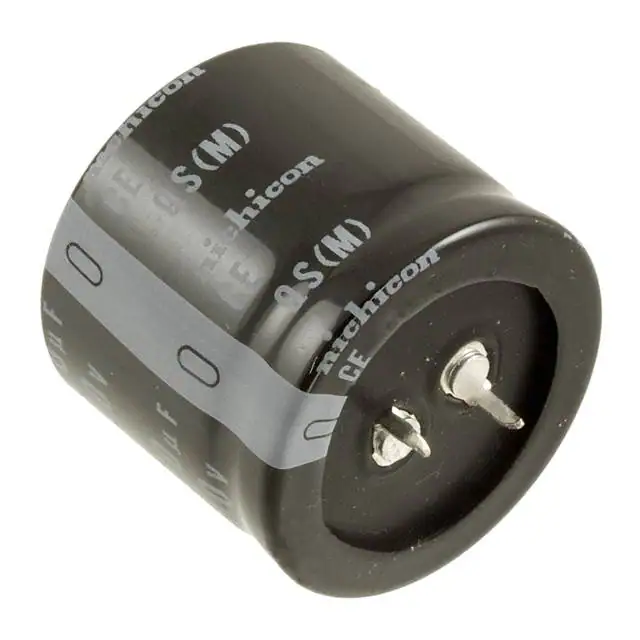

LQS2W271MELC30CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80A303EB025CAP ALUM 30000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 30000 µF | ±20% | 25 V | 49mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.75 A @ 100 Hz | 7.64 A @ 10 kHz | 44 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80C303EB025CAP ALUM 30000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 30000 µF | ±20% | 25 V | 49mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.75 A @ 100 Hz | 7.64 A @ 10 kHz | 44 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D303EB025CAP ALUM 30000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 30000 µF | ±20% | 25 V | 49mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.75 A @ 100 Hz | 7.64 A @ 10 kHz | 44 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80E303EB025CAP ALUM 30000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 30000 µF | ±20% | 25 V | 49mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.75 A @ 100 Hz | 7.64 A @ 10 kHz | 44 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole |
