Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL219366221E3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 220 µF | ±20% | 400 V | 370mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 100 Hz | 2.175 A @ 10 kHz | 210 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMS421VSN391MA35SCAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.4453 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
MAL205352221E3CAP ALUM 220UF 20% 200V RADIAL |
0 |
|
Datasheet |
053 PEC-PW | Tape & Box (TB) | Active | 220 µF | ±20% | 200 V | 680mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 940 mA @ 100 Hz | - | 525 mOhms | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL205651222E3CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 2200 µF | ±20% | 50 V | 120mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.75 A @ 100 Hz | - | 91 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205671222E3CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 2200 µF | ±20% | 50 V | 120mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.75 A @ 100 Hz | - | 91 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215817332E3CAP ALUM 3300UF 20% 40V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 3300 µF | ±20% | 40 V | 91mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.73 A @ 100 Hz | - | 70 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215857332E3CAP ALUM 3300UF 20% 40V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 3300 µF | ±20% | 40 V | 91mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.73 A @ 100 Hz | - | 70 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43643C5337M057CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43643 | Bulk | Active | 330 µF | ±20% | 450 V | 360mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 560 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
MAL213248681E3CAP ALUM 680UF 63V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 680 µF | -10%, +50% | 63 V | 160mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | - | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80A751CF250CAP ALUM 750UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 750 µF | ±20% | 250 V | 233mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.78 A @ 100 Hz | 6.52 A @ 10 kHz | 137 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80D751CF250CAP ALUM 750UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 750 µF | ±20% | 250 V | 233mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.78 A @ 100 Hz | 6.52 A @ 10 kHz | 137 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F751CF250CAP ALUM 750UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 750 µF | ±20% | 250 V | 233mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.78 A @ 100 Hz | 6.52 A @ 10 kHz | 137 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
E82D401VNN561MA50UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ELD397M450AT5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 390 µF | ±20% | 450 V | 850mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
MAL204348689E3CAP ALUM 68UF 385V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 68 µF | -10%, +50% | 385 V | 2.2Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 570 mA @ 100 Hz | - | 1.4 Ohms | 0.886" (22.50mm) | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAK2D122MELC50CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 2.76 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
511D108M040EN4DCAP ALUM 1000UF 20% 40V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 1000 µF | ±20% | 40 V | 193mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | 2.18 A @ 40 kHz | 78 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
678D108M016DM3DE3CAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 16 V | 130mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
|
678D477M025DM3DE3CAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 470 µF | ±20% | 25 V | 160mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 679 mA @ 120 Hz | 970 mA @ 100 kHz | 68 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|

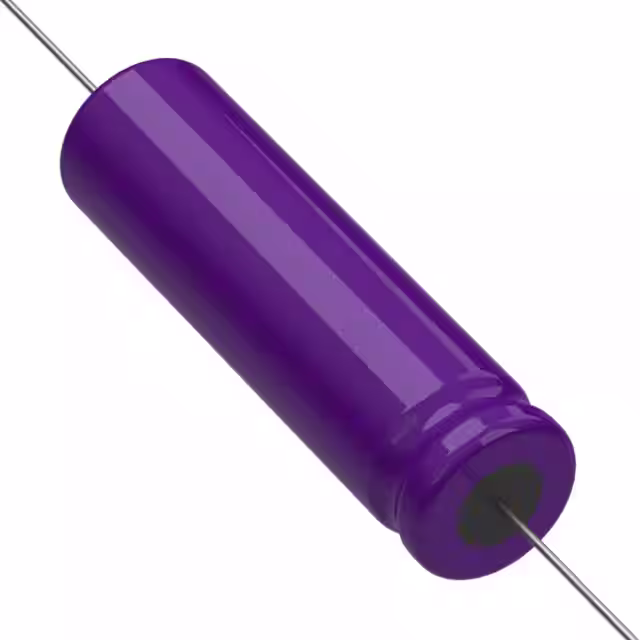

500D228M016FK2TCAP ALUM 2200UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.492" Dia x 1.752" L (12.50mm x 44.50mm) | - | - | Through Hole |
