Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALF20C271DD450CAP ALUM 270UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 270 µF | ±20% | 450 V | 458mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.78 A @ 100 Hz | 3.27 A @ 10 kHz | 311 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
PEH536RCG4100M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 1 mF | ±20% | 200 V | 120mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 100 Hz | 14.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF40G682EC063CAP ALUM 6800UF 20% 63V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 6800 µF | ±20% | 63 V | 91mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.18 A @ 100 Hz | 4.26 A @ 10 kHz | 81 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
ALV70A680CC700CAP ALUM 85C 68UF 700VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 68 µF | ±20% | 700 V | 8.374Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 640 mA @ 100 Hz | 770 mA @ 10 kHz | 7.802 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKS1H123MESCCAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 12000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

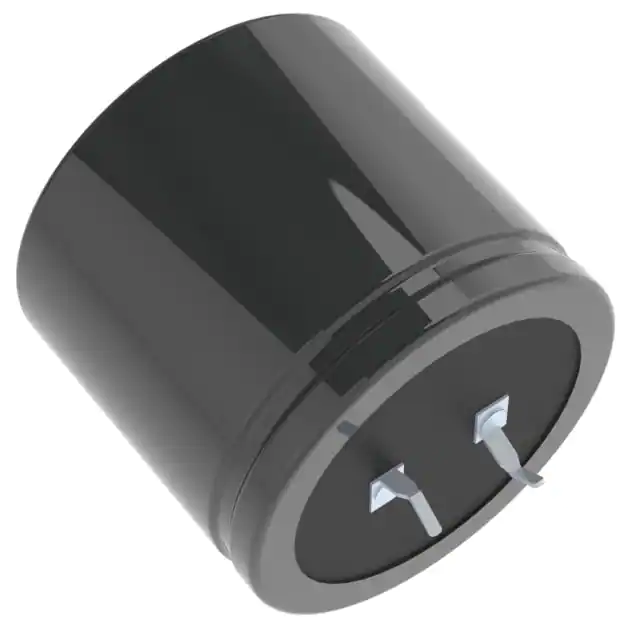

LKS2A272MESCCAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2700 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKSH2682MESCCAP ALUM 6800UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX391M450E4P3CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 390 µF | ±20% | 450 V | 680mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.45 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70C133DF063CAP ALUM 13000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 13000 µF | ±20% | 63 V | 34mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.82 A @ 100 Hz | 10.03 A @ 10 kHz | 26 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70D133DF063CAP ALUM 13000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 13000 µF | ±20% | 63 V | 34mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.82 A @ 100 Hz | 10.03 A @ 10 kHz | 26 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC70E133DF063CAP ALUM 13000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 13000 µF | ±20% | 63 V | 34mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.82 A @ 100 Hz | 10.03 A @ 10 kHz | 26 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70F133DF063CAP ALUM 13000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 13000 µF | ±20% | 63 V | 34mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.82 A @ 100 Hz | 10.03 A @ 10 kHz | 26 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43652B5397M057CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43652 | Bulk | Active | 390 µF | ±20% | 450 V | 270mOhm @ 100Hz | - | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH532VCG3390M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 390 µF | ±20% | 400 V | 280mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALF20C272DC100CAP ALUM 2700UF 20% 100V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 2700 µF | ±20% | 100 V | 92mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.57 A @ 100 Hz | 4.37 A @ 10 kHz | 69 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
B43641B9477M057CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43641 | Bulk | Active | 470 µF | ±20% | 400 V | 210mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 100 Hz | - | 320 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2Z182MELC35CAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205358689E3CAP ALUM 68UF 20% 385V RADIAL TH |
0 |
|
Datasheet |
053 PEC-PW | Tape & Box (TB) | Active | 68 µF | ±20% | 385 V | 2.2Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 100 Hz | - | 1.48 Ohms | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
MAL225717221E3CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 220 µF | ±20% | 450 V | 890mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 100 Hz | 2.128 A @ 10 kHz | 750 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
420USC180MEFC30X25CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.072 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
