Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
511D108M035EK4DE3CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 1000 µF | ±20% | 35 V | 223mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.66 A @ 40 kHz | 112 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole | |
|
672D187H050DM5CCAP ALUM 180UF 50V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 180 µF | - | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
|
672D336F100DM5DCAP ALUM 33UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 33 µF | -10%, +50% | 100 V | 2.55Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 396 mA @ 120 Hz | 720 mA @ 100 kHz | 390 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
672D507H025DS5CCAP ALUM 500UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 500 µF | - | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
|
672D686H060DM5DCAP ALUM 68UF 60V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 68 µF | - | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
678D108M025DS3DCAP ALUM 1000UF 20% 25V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 25 V | 90mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | 36 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|

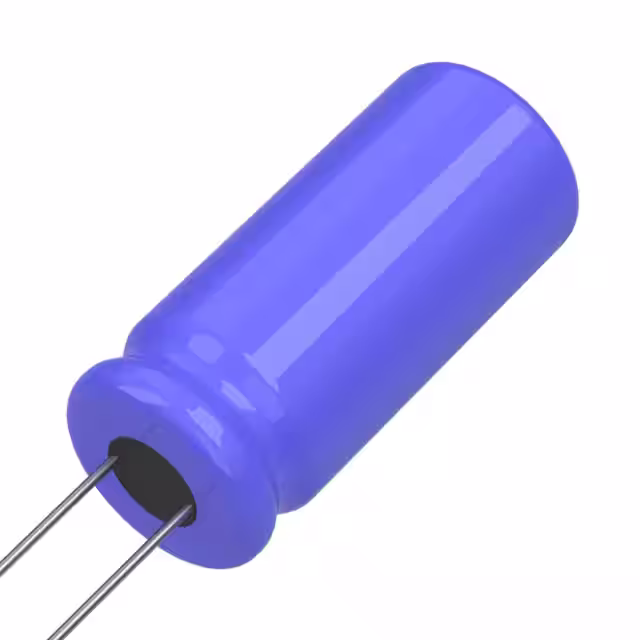

678D128M016DM4DCAP ALUM 1200UF 20% 16V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1200 µF | ±20% | 16 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.102" (28.00mm) | - | Through Hole | |
|
678D158M010DK3DCAP ALUM 1500UF 20% 10V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1500 µF | ±20% | 10 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.142" (29.00mm) | - | Through Hole | |
|
|
678D337M040DM4DCAP ALUM 330UF 20% 40V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 330 µF | ±20% | 40 V | 200mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 651 mA @ 120 Hz | 930 mA @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.102" (28.00mm) | - | Through Hole | |
|
|
678D337M063DS3DCAP ALUM 330UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 330 µF | ±20% | 63 V | 130mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.057 A @ 120 Hz | 1.51 A @ 100 kHz | 40 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
|
678D338M6R3DS3DCAP ALUM 3300UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 3300 µF | ±20% | 6.3 V | 67mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.169 A @ 120 Hz | 1.67 A @ 100 kHz | 32 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
|
678D687M040DS3DCAP ALUM 680UF 20% 40V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 680 µF | ±20% | 40 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
|
757D108M025DK3DCAP ALUM 1000UF 20% 25V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 1000 µF | ±20% | 25 V | 114mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.18 A @ 40 kHz | 40 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.142" (29.00mm) | - | Through Hole | |
|
|
757D228M010DK3DCAP ALUM 2200UF 20% 10V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 2200 µF | ±20% | 10 V | 82mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.18 A @ 40 kHz | 40 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.142" (29.00mm) | - | Through Hole | |
|
|
757D687M035DK3DCAP ALUM 680UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
757D | Bulk | Active | 680 µF | ±20% | 35 V | 140mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 2.18 A @ 40 kHz | 40 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.142" (29.00mm) | - | Through Hole | |
|
|
672D687H6R3DM5CE3CAP ALUM 680UF 6.3V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 680 µF | -10%, +100% | 6.3 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
LAS2G331MELB35CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 1.656 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAK2G331MELC40CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.392 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEG124YH2220QE4CAP ALUM AXL GEN PUR 105C |
0 |
|
Datasheet |
PEG124 | Tray | Active | 22 µF | -10%, +30% | 450 V | 2.4Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 100 Hz | 560 mA @ 5 kHz | - | - | 0.787" Dia x 1.142" L (20.00mm x 29.00mm) | - | - | Through Hole | |
|
MAL211919331E3CAP ALUM 330UF 100V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 330 µF | -10%, +50% | 100 V | 480mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 920 mA @ 100 Hz | - | 370 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole |
