Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70D103CF063CAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 10000 µF | ±20% | 63 V | 39.81mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.85 A @ 100 Hz | 9.4 A @ 10 kHz | 30 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC70D471CF400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 400 V | 290mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5.73 A @ 10 kHz | 152 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
40D506F050DF2CAP ALUM 50UF 50V |
0 |
|
- |
40D | Bulk | Active | 50 µF | -10%, +50% | 50 V | 3.8Ohm | 500 Hrs @ 85°C | -20°C ~ 85°C | Polar | - | General Purpose | 344 mA @ 120 Hz | - | - | - | - | - | - | - | |
|
|
511D108M050ER4DCAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 1000 µF | ±20% | 50 V | 161mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.51 A @ 40 kHz | 68 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
511D478M010ER4DCAP ALUM 4700UF 20% 10V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 4700 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
672D336F100DM5JCAP ALUM 33UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 33 µF | -10%, +50% | 100 V | 2.55Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 396 mA @ 120 Hz | 720 mA @ 100 kHz | 390 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|

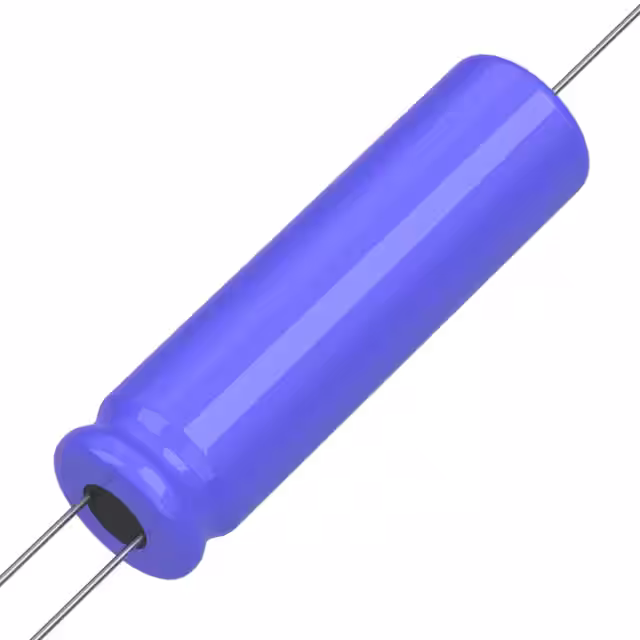

678D338M6R3DS3JCAP ALUM 3300UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 3300 µF | ±20% | 6.3 V | 67mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.169 A @ 120 Hz | 1.67 A @ 100 kHz | 32 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
678D158M6R3DM5OCAP ALUM 1500UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1500 µF | ±20% | 6.3 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
ELXM3B1VSN561MA40SCAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 560 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.02 A @ 120 Hz | 2.8886 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELH828M080AT5AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 8.2 mF | ±20% | 80 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.85 A @ 120 Hz | 6.786 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL216099004E3CAP ALUM 680UF 20% 35V SMD |
24 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 680 µF | ±20% | 35 V | - | 1500 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 830 mA @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL216099105E3CAP ALUM 470UF 20% 50V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 470 µF | ±20% | 50 V | - | 1500 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 720 mA @ 100 kHz | 70 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL216099704E3CAP ALUM 220UF 20% 80V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 220 µF | ±20% | 80 V | - | 1500 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 258 mA @ 100 Hz | - | 390 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
ALC70D562DF100CAP ALUM 5600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 5600 µF | ±20% | 100 V | 51mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 8.76 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70E562DF100CAP ALUM 5600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 5600 µF | ±20% | 100 V | 51mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 8.76 A @ 10 kHz | 41 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70F562DF100CAP ALUM 5600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 5600 µF | ±20% | 100 V | 51mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 8.76 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400SXC330MEFCSN35X35CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.6215 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALV70E820DC750CAP ALUM 85C 82UF 750VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 82 µF | ±20% | 750 V | 6.6Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 790 mA @ 100 Hz | 960 mA @ 10 kHz | 6.129 Ohms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

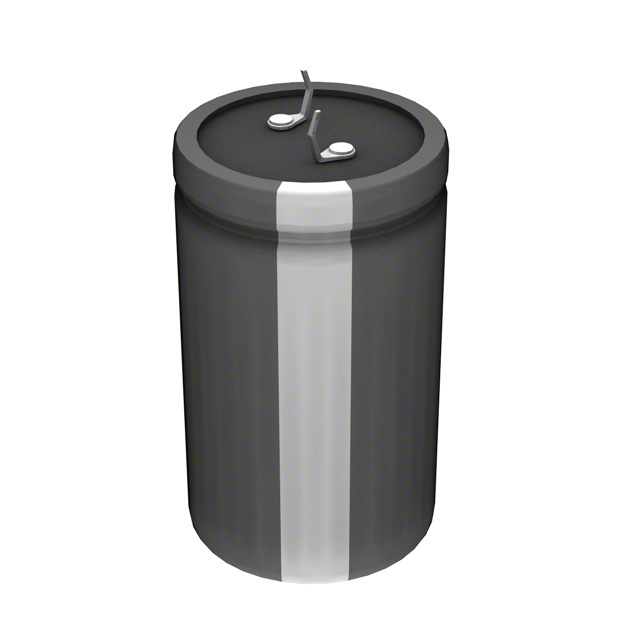

SLP392M100E9P3CAP ALUM 3900UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 3900 µF | ±20% | 100 V | 68mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
EKHS4H1VSN181MP50SCAP ALUM 180UF 20% 475V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 180 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.6159 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole |
