Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH228MKP3750QE4CAP ALUM 750UF 63V SOLDER LUG TH |
0 |
|
Datasheet |
PEH228 | Tray | Active | 750 µF | -10%, +30% | 63 V | 93mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.96 A @ 100 Hz | 5.6 A @ 5 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|
381LQ331M450K452CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 330 µF | ±20% | 450 V | 553mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.93 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALV70D680CC700CAP ALUM 85C 68UF 700VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 68 µF | ±20% | 700 V | 8.374Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 640 mA @ 100 Hz | 770 mA @ 10 kHz | 7.802 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL213219471E3CAP ALUM 470UF 100V AXIAL TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 470 µF | -10%, +50% | 100 V | 200mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | - | - | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL213244472E3CAP ALUM 4700UF 10V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 4700 µF | -10%, +50% | 10 V | 90mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | - | - | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EKHS4H1VSN181MQ40SCAP ALUM 180UF 20% 475V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 180 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.6588 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.575" (40.00mm) | - | Through Hole | |
|

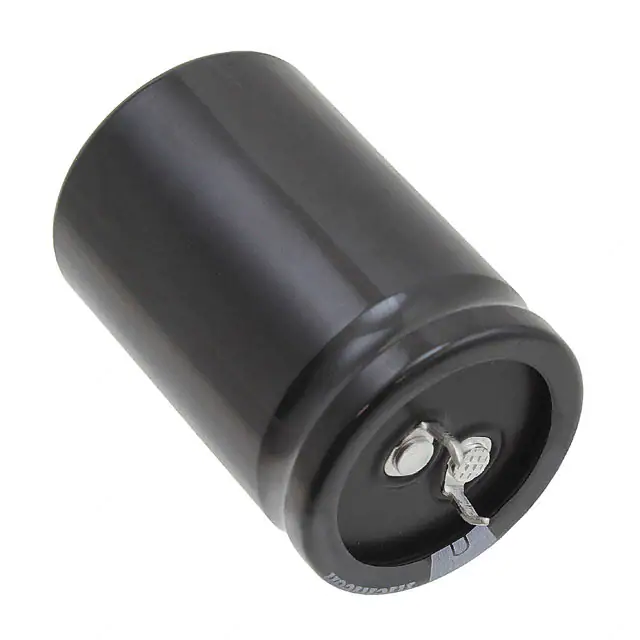

LKX2D122MESB45CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL213815103E3CAP ALUM 10000UF 20% 16V AXIAL |
0 |
|
Datasheet |
138 AML | Bulk | Active | 10000 µF | ±20% | 16 V | 65mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 2.1 A @ 100 Hz | 2.73 A @ 10 kHz | 57 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL213847332E3CAP ALUM 3300UF 20% 40V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 3300 µF | ±20% | 40 V | 79mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.81 A @ 100 Hz | - | 100 mOhms | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
478LMB080M2DHCAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LMB | Bulk | Active | 4700 µF | ±20% | 80 V | 88.18mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
UPTW6271MRDCAP ALUM 270UF 20% 420V RADIAL |
0 |
|
Datasheet |
UPT | Bulk | Obsolete | 270 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.92 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
UBY1V512MHLCAP ALUM 5100UF 20% 35V RADIAL |
1 |
|
Datasheet |
UBY | Bulk | Active | 5100 µF | ±20% | 35 V | 22mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.95 A @ 120 Hz | 3.47 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
B43644C9397M062CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 390 µF | ±20% | 400 V | 250mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 100 Hz | - | 370 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80A333CF025CAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 33000 µF | ±20% | 25 V | 35.98mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.63 A @ 100 Hz | 10.78 A @ 10 kHz | 31 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
220KXF470MEFC35X20CAP ALUM 470UF 20% 220V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 470 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.175 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
35MXC22000MEFC35X40CAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 120 Hz | 5.658 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
400MXC82MEFC20X30CAP ALUM 82UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 82 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
400MXK390MEFC35X25CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.072 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
400VXR180MEFC22X50CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 180 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.26 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1K222MESCCKCAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
