Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80A361CF400CAP ALUM 360UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 360 µF | ±20% | 400 V | 337mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 100 Hz | 6.17 A @ 10 kHz | 172 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F361CF400CAP ALUM 360UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 360 µF | ±20% | 400 V | 337mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 100 Hz | 6.17 A @ 10 kHz | 172 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEH532YDD3270M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 270 µF | ±20% | 450 V | 350mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 3.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH532YCE3270M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 270 µF | ±20% | 450 V | 340mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH532YCE3270M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 270 µF | ±20% | 450 V | 340mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
385MXC82MEFC20X30CAP ALUM 82UF 20% 385V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 82 µF | ±20% | 385 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 728 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400MXC180MEFCSN22X45CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.372 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALC70A561DE400CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ALC70 | Box | Active | 560 µF | ±20% | 400 V | 247mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.65 A @ 100 Hz | 6.25 A @ 10 kHz | 118 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

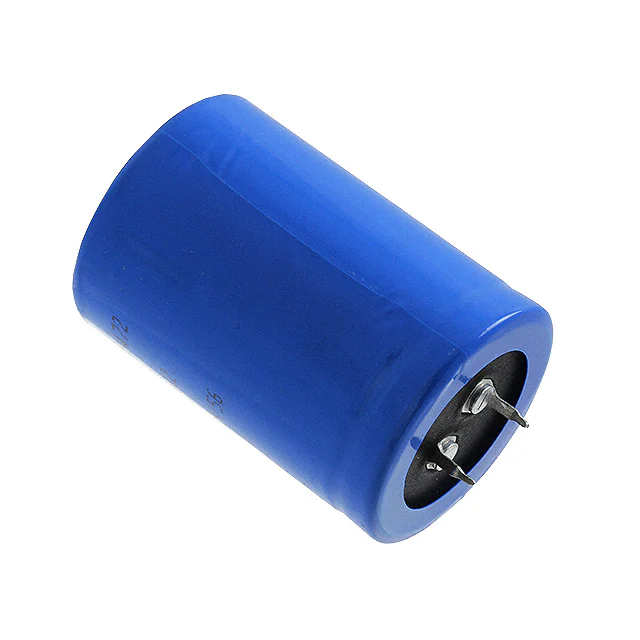

MAL215929121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 120 µF | ±20% | 500 V | 1.09Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.288 A @ 10 kHz | 810 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
MAL215919121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 120 µF | ±20% | 500 V | 1.11Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.274 A @ 10 kHz | 830 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215969121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 120 µF | ±20% | 500 V | 1.11Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.274 A @ 10 kHz | 830 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215989121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 120 µF | ±20% | 500 V | 1.09Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.288 A @ 10 kHz | 810 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43644F2108M007CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 1000 µF | ±20% | 250 V | 90mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.56 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80A333DD025CAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 33000 µF | ±20% | 25 V | 38.61mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.19 A @ 100 Hz | 9.78 A @ 10 kHz | 34 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSK561M2G---3545SCAP ALUM 400V POLAR |
0 |
|
- |
LSK | Active | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.604 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
MAL209434221E3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 420 V | 590mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | - | 440 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL209444221E3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 420 V | 590mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | - | 440 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL209454221E3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 420 V | 590mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | - | 440 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43508F2687M000CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 680 µF | ±20% | 250 V | 170mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.84 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC40A561DC250CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 560 µF | ±20% | 250 V | 297mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | 2.25 A @ 10 kHz | 217 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
