Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215628272E3CAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 2700 µF | ±20% | 63 V | 86mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.95 A @ 100 Hz | - | 51 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215668272E3CAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 2700 µF | ±20% | 63 V | 86mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.95 A @ 100 Hz | - | 51 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LSM222M2D---3545SCAP ALUM 200V POLAR |
0 |
|
- |
LSM | Active | 2.2 mF | ±20% | 200 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.01 A @ 120 Hz | 5.614 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
ALO8AF441DC450CAP ALUM 105C 440UF 450VDC |
0 |
|
Datasheet |
ALO8A | Tray | Active | 225.2 µF | ±20% | 450 V | 393.6mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.16 A @ 100 Hz | 5.56 A @ 10 kHz | 225.2 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole, Press-Fit | |
|
ALC80D912CF063CAP ALUM 9100UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 9100 µF | ±20% | 63 V | 40.36mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.01 A @ 100 Hz | 10.22 A @ 10 kHz | 30 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX561M350A052CAP ALUM 560UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
678D108M010DG4DCAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 10 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
220MXC1200MEFCSN30X45CAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1200 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | 4.32 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LQ682M080K052CAP ALUM 6800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 6800 µF | ±20% | 80 V | 41mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.49 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
SLPX681M315H7P3CAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 680 µF | ±20% | 315 V | 293mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 4.48 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF20C102DD200CAP ALUM 1000UF 20% 200V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 1000 µF | ±20% | 200 V | 163mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.81 A @ 100 Hz | 3.87 A @ 10 kHz | 114 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|

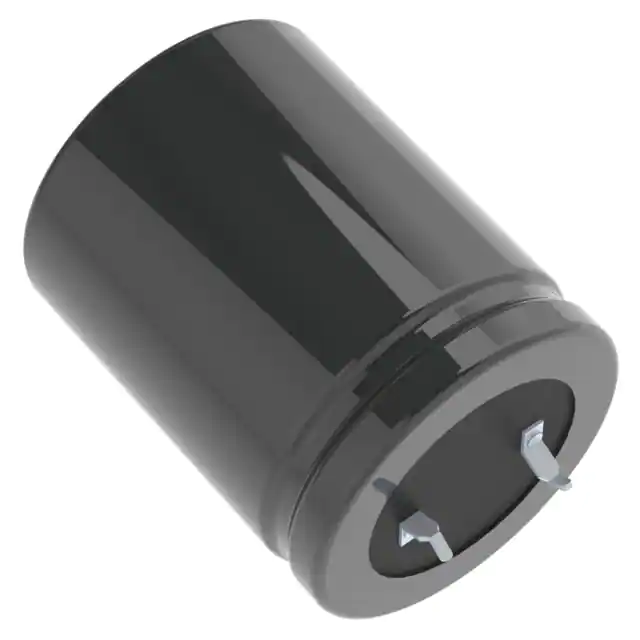

LGM2W221MELA30CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LGM | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
LGGW6331MELB35CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.633 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EKMS551VSN121MQ40SCAP ALUM 120UF 20% 550V SNAP TH |
0 |
|
- |
KMS | Bulk | Active | 120 µF | ±20% | 550 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.575" (40.00mm) | - | Through Hole | |
|
PG2W331MND3035CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
PG | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 1.909 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|

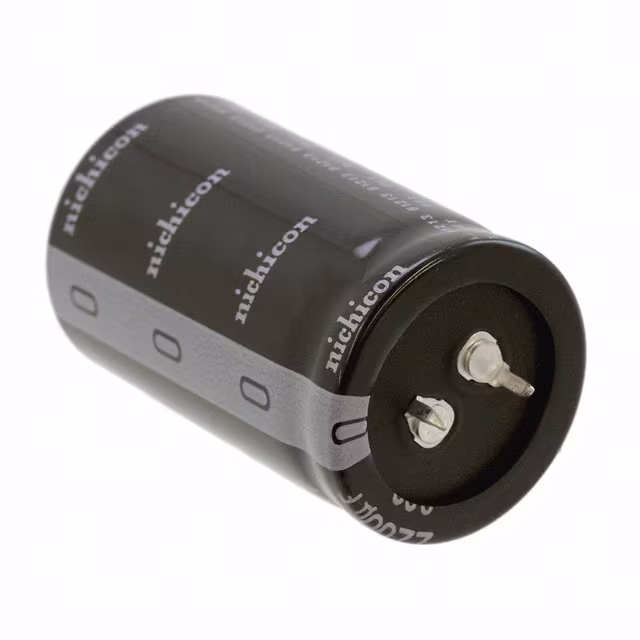

LGG2Z222MELB50CAP ALUM 2200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 2200 µF | ±20% | 180 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LSK391M2W---3545SCAP ALUM 450V POLAR |
0 |
|
- |
LSK | Active | 390 µF | ±20% | 450 V | 510mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 120 Hz | 2.366 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
220USG560MEFC22X35CAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 560 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.28 A @ 120 Hz | 3.42 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
400HXC120MEFC22X40CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
63VXG2200MEFC22X40CAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 2200 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.1275 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
