Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
511D337M100ER4DCAP ALUM 330UF 20% 100V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 330 µF | ±20% | 100 V | 444mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 958 mA @ 120 Hz | 2.32 A @ 40 kHz | 78 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
672D127F100EK4DCAP ALUM 120UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 120 µF | -10%, +50% | 100 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole | |
|
672D226H150DT5CCAP ALUM 22UF 150V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 22 µF | - | 150 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
380LX471M315K042CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 315 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

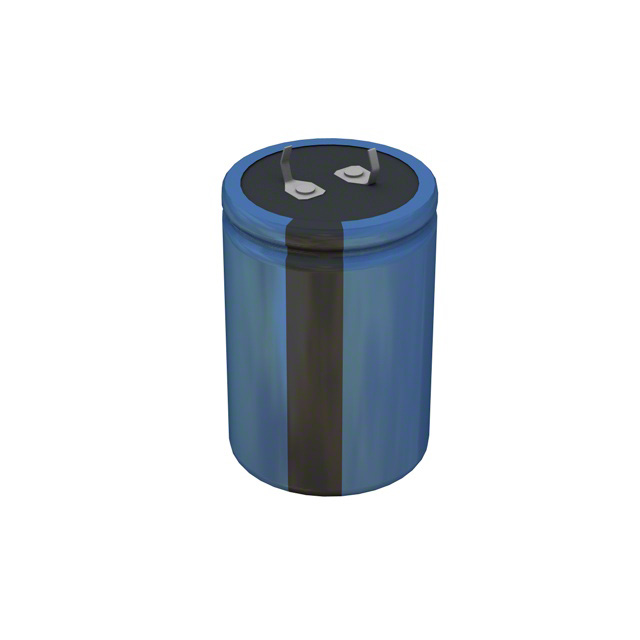

381LQ681M350K052CAP ALUM 680UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 680 µF | ±20% | 350 V | 244mOhm | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EKMS3B1VSN821MR45SCAP ALUM 820UF 20% 315V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 820 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | 3.5321 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
757D228M016DT3DCAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 2200 µF | ±20% | 16 V | 62mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 2.98 A @ 40 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
250MXG680MEFCSN35X25CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 680 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
630D157M035FK2CAP ALUM 150UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 150 µF | ±20% | 35 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.492" Dia x 1.752" L (12.50mm x 44.50mm) | - | - | Through Hole | |
|
|
630D337M050FH5ACAP ALUM 330UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 330 µF | ±20% | 50 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.492" Dia x 1.496" L (12.50mm x 38.00mm) | - | - | Through Hole | |
|
ALF40C153DD040CAP ALUM 15000UF 20% 40V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 15000 µF | ±20% | 40 V | 100mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.18 A @ 100 Hz | 3.53 A @ 10 kHz | 87 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
|
80MXC6800MEFC35X45CAP ALUM 6800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 6800 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.715 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400VXG390MEFCSN35X35CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 390 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.436 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALA8DA201CC500CAP ALUM 200UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 200 µF | ±20% | 500 V | 1.031Ohm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.79 A @ 100 Hz | 3.92 A @ 10 kHz | 299 mOhms | - | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSM271M2H---3535SCAP ALUM 500V POLAR |
0 |
|
- |
LSM | Active | 270 µF | ±20% | 500 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.254 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
MAL211945222E3CAP ALUM 2200UF 16V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 2200 µF | -10%, +50% | 16 V | 140mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | 100 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF20C822DD063CAP ALUM 8200UF 20% 63V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 8200 µF | ±20% | 63 V | 69mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.31 A @ 100 Hz | 4.8 A @ 10 kHz | 55 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
SLP152M220H4P3CAP ALUM 1500UF 20% 220V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1500 µF | ±20% | 220 V | 133mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.22 A @ 120 Hz | 4.73 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLP391M400E4P3CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 390 µF | ±20% | 400 V | 851mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.35 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLPX561M385H4P3CAP ALUM 560UF 20% 385V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 560 µF | ±20% | 385 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.59 A @ 120 Hz | 3.81 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
