Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MXC12000MEFCSN35X40CAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 12000 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.56 A @ 120 Hz | 5.244 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
672D108F6R3EK5DCAP ALUM 1000UF 6.3V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 1000 µF | -10%, +50% | 6.3 V | 160mOhm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.435 A @ 120 Hz | 2.05 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.098" (27.90mm) | - | Through Hole | |
|
380LQ182M200A032CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1800 µF | ±20% | 200 V | 120mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.32 A @ 120 Hz | 6.05 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMR421VSN471MR45SCAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMR | Bulk | Active | 470 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.6455 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
ESMR421VSN821MA45SCAP ALUM 820UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SMR | Bulk | Active | 820 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.43 A @ 120 Hz | 4.9049 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
MAL205757689E3CAP ALUM 68UF 20% 450V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 68 µF | ±20% | 450 V | 3.9Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 330 mA @ 100 Hz | - | 3.1 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205777689E3CAP ALUM 68UF 20% 450V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 68 µF | ±20% | 450 V | 3.9Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 330 mA @ 100 Hz | - | 3.1 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215818122E3CAP ALUM 1200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 1200 µF | ±20% | 63 V | 137mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | - | 100 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL215819821E3CAP ALUM 820UF 20% 100V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 820 µF | ±20% | 100 V | 318mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 100 Hz | - | 284 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215858122E3CAP ALUM 1200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 1200 µF | ±20% | 63 V | 137mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | - | 100 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL215859821E3CAP ALUM 820UF 20% 100V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 820 µF | ±20% | 100 V | 318mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 100 Hz | - | 284 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ELXM181VSN182MA45SCAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1800 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 5.115 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKG1H123MESCAKCAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 12000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LKG1J682MESCAKCAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKG1K392MESCAKCAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LKG2A152MESCCKCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1500 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

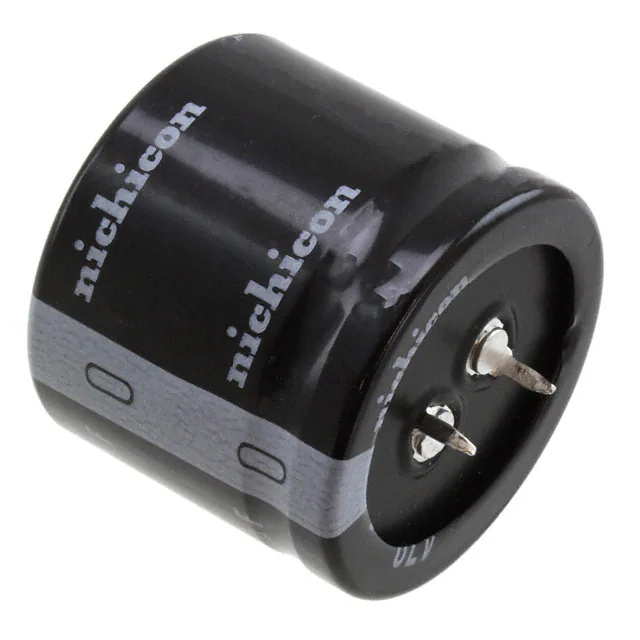

LLG2W391MELC30CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.003 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LSG561M2W---3545SCAP ALUM 450V POLAR |
0 |
|
- |
LSG | Active | 560 µF | ±20% | 450 V | 355mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.8028 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
250MXG1200MEFCSN30X45CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70A132DF250CAP ALUM 1300UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1300 µF | ±20% | 250 V | 145mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 7.33 A @ 10 kHz | 85 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
