Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

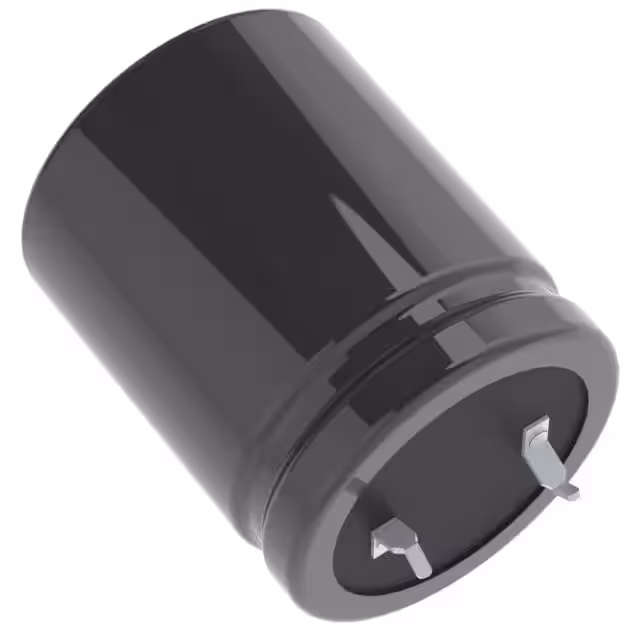

450USH270MEFC22X50CAP ALUM 270UF 20% 450V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LSM821M2V---3555SCAP ALUM 350V POLAR |
0 |
|
- |
LSM | Active | 820 µF | ±20% | 350 V | 243mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 3.122 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | ||
|
EKMS201VSN152MA35SCAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 5.04 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
B43544B9397M060CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 390 µF | ±20% | 400 V | 150mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 100 Hz | - | 220 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

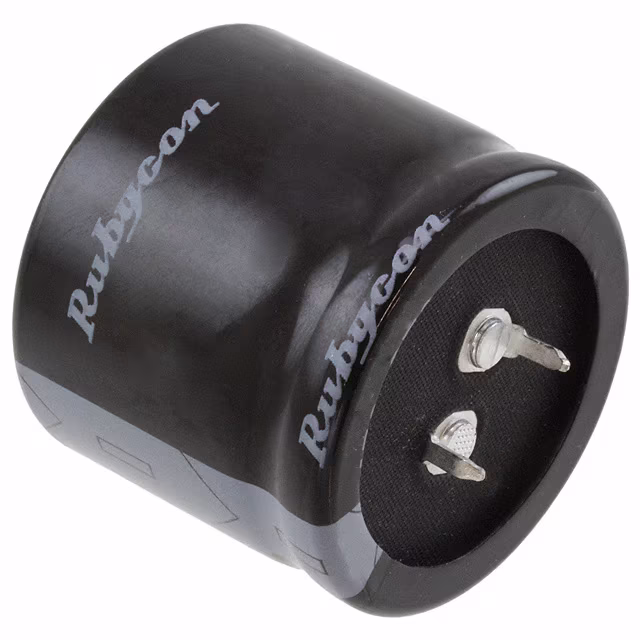

450VXH330MEFCSN35X30CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 2.142 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXS201VSN182MA40SCAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1800 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.81 A @ 120 Hz | 5.715 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
380LX271M450A032CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 270 µF | ±20% | 450 V | 737mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
450USC180MEFC22X45CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 1.848 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43508B5227M000CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43508 | Bulk | Active | 220 µF | ±20% | 450 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 100 Hz | - | 790 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF20C103DF063CAP ALUM 10000UF 20% 63V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 10000 µF | ±20% | 63 V | 64mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.85 A @ 100 Hz | 5.4 A @ 10 kHz | 51 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
339LBB035M2EHCAP ALUM 33000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 33000 µF | ±20% | 35 V | 12.56mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.27 A @ 120 Hz | 9.0875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PL2W471MN63540ECAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
PL | Active | 470 µF | ±20% | 450 V | 282mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.874 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
MAL219359121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 120 µF | ±20% | 500 V | 1.11Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 100 Hz | 1.545 A @ 10 kHz | 820 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL219329121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 120 µF | ±20% | 500 V | 1.12Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 100 Hz | 1.605 A @ 10 kHz | 830 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL219369121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 120 µF | ±20% | 500 V | 1.12Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 100 Hz | 1.605 A @ 10 kHz | 830 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL219319121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 120 µF | ±20% | 500 V | 1.11Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 100 Hz | 1.545 A @ 10 kHz | 820 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
200SXC560MEFC30X30CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.888 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
80VXG2700MEFC30X35CAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 2700 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215932471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 470 µF | ±20% | 200 V | 505mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | - | 400 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

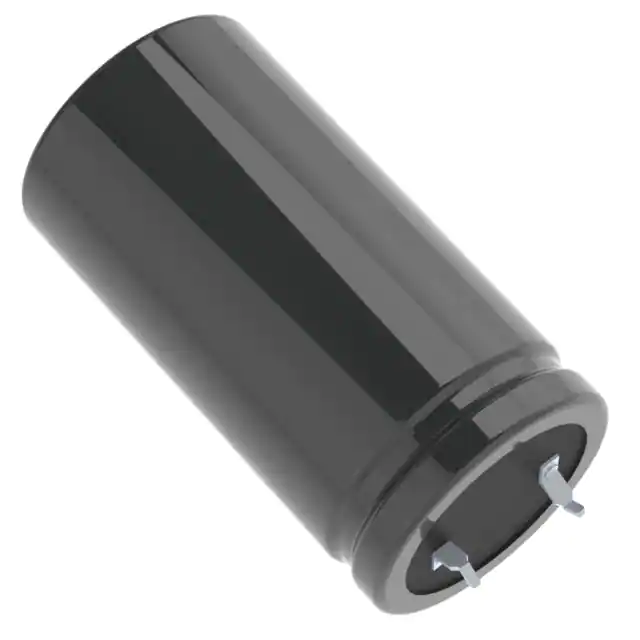

LKG1E103MESZAKCAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.65 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
