Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70C132DF250CAP ALUM 1300UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1300 µF | ±20% | 250 V | 145mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 7.33 A @ 10 kHz | 85 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70D132DF250CAP ALUM 1300UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1300 µF | ±20% | 250 V | 145mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 7.33 A @ 10 kHz | 85 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC70E132DF250CAP ALUM 1300UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1300 µF | ±20% | 250 V | 145mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 7.33 A @ 10 kHz | 85 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70F132DF250CAP ALUM 1300UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1300 µF | ±20% | 250 V | 145mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.71 A @ 100 Hz | 7.33 A @ 10 kHz | 85 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
E82D501VNN391MA50UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PEH534JDD5150M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 15 mF | ±20% | 35 V | 21mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 A @ 100 Hz | 14.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

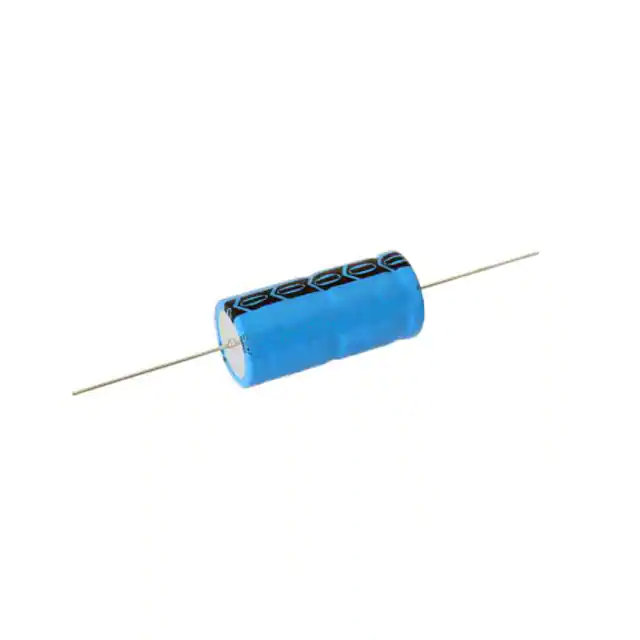

MAL212544183E3CAP ALUM 18000UF 20% 10V AXIAL |
0 |
|
- |
125 ALS | Box | Active | 18000 µF | ±20% | 10 V | 41mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 100 Hz | 2.232 A @ 10 kHz | 58 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212545153E3CAP ALUM 15000UF 20% 16V AXIAL |
0 |
|
- |
125 ALS | Box | Active | 15000 µF | ±20% | 16 V | 41mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 100 Hz | 2.327 A @ 10 kHz | 57 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|

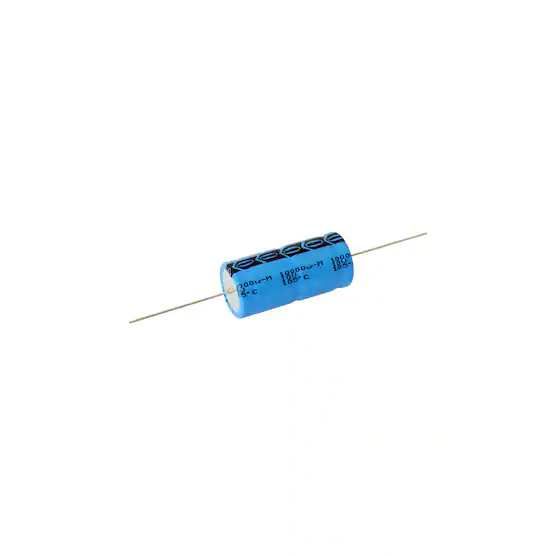

MAL212546822E3CAP ALUM 8200UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
125 ALS | Box | Active | 8200 µF | ±20% | 25 V | 46mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 100 Hz | 2.275 A @ 10 kHz | 58 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212547332E3CAP ALUM 3300UF 20% 40V AXIAL TH |
0 |
|
- |
125 ALS | Box | Active | 3300 µF | ±20% | 40 V | 64mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.24 A @ 10 kHz | 61 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212548222E3CAP ALUM 2200UF 20% 63V AXIAL TH |
0 |
|
- |
125 ALS | Box | Active | 2200 µF | ±20% | 63 V | 72mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 2.1 A @ 10 kHz | 72 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
LASW6331MELB45CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
420MXK390MEFC30X35CAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.548 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
80KXF1200MEFC30X20CAP ALUM 1200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 1200 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 1.656 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
350VXR100MEFC25X25CAP ALUM 100UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 100 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 966 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
385KXF82MEFC25X20CAP ALUM 82UF 20% 385V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 82 µF | ±20% | 385 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 728 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
PK2W331MND3040ERCAP ALUM 330UF 20% 450V SNAP TH |
18 |
|
Datasheet |
PK | Bulk | Active | 330 µF | ±20% | 450 V | 250mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.288 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLP222M180H9P3CAP ALUM 2200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 2200 µF | ±20% | 180 V | 90mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EKMS201VSN182MR50SCAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1800 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.72 A @ 120 Hz | 5.58 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
LKG1J472MESCCKCAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
