Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215861272E3CAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 2700 µF | ±20% | 50 V | 91mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.81 A @ 100 Hz | - | 66 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
25VXG6800MEFC25X30CAP ALUM 6800UF 20% 25V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 6800 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.162 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450MXH270MEFC22X50CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.254 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
220MXG820MEFCSN35X25CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
250VXG1200MEFC35X40CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1200 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 3.615 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

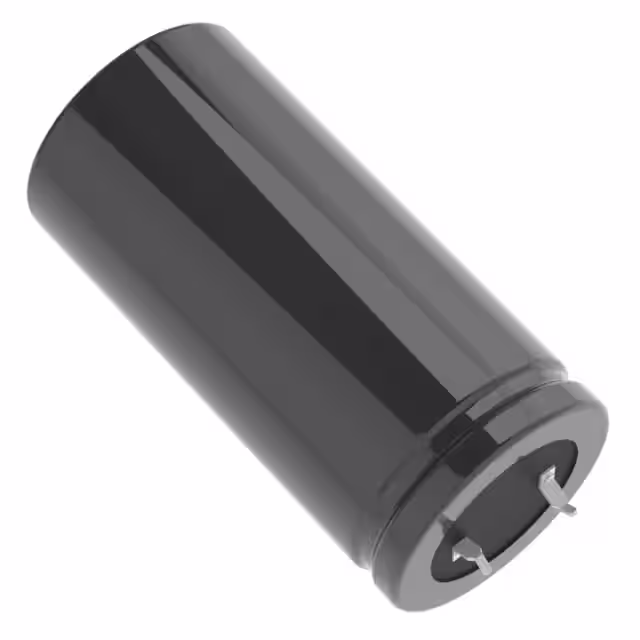

400USH680MEFC30X50CAP ALUM 680UF 20% 400V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 680 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 4.76 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
450VXH330MEFC35X30CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 2.142 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450VXR180MEFC35X35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 180 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.218 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43644C9397M000CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 390 µF | ±20% | 400 V | 250mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 100 Hz | - | 370 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL219357181E3CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 180 µF | ±20% | 450 V | 420mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 2.01 A @ 10 kHz | 230 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL219327181E3CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 180 µF | ±20% | 450 V | 440mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 1.965 A @ 10 kHz | 250 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL219317181E3CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 180 µF | ±20% | 450 V | 420mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 2.01 A @ 10 kHz | 230 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL219367181E3CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 180 µF | ±20% | 450 V | 440mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 1.965 A @ 10 kHz | 250 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH536SDF3820M3CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 820 µF | ±20% | 250 V | 120mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 100 Hz | 15 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43545B9397M087CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43545 | Tray | Active | 390 µF | ±20% | 400 V | 150mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.24 A @ 100 Hz | - | 210 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.661" (42.20mm) | - | Through Hole | |
|
200MXC1800MEFCSN35X45CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1800 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.48 A @ 120 Hz | 5.22 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL212327338CAP ALUM 3.3UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 40 V | 73Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 16 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212327338E3CAP ALUM 3.3UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 40 V | 73Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 16 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
511D227M075DK4DCAP ALUM 220UF 20% 75V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 220 µF | ±20% | 75 V | 666mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 589 mA @ 120 Hz | 1.05 A @ 40 kHz | 211 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
B43642A5397M067CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43642 | Bulk | Active | 390 µF | ±20% | 450 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 100 Hz | - | 320 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
