Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH228KML4220QE4CAP ALUM 2200UF 40V SOLDER LUG |
0 |
|
Datasheet |
PEH228 | Tray | Active | 2200 µF | -10%, +30% | 40 V | 44mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.4 A @ 5 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
PEH220MG3370QE1CAP ALUM RAD 150C |
0 |
|
Datasheet |
PEH | Box | Active | 370 µF | -10%, +30% | 63 V | 160mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.575 A @ 100 Hz | 4.5 A @ 5 kHz | - | - | 1.406" Dia (35.70mm) | 0.650" (16.50mm) | - | Through Hole | |
|
381LX561M315A452CAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 560 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF20C271DF500CAP ALUM 270UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 270 µF | ±20% | 500 V | 505mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | 3.97 A @ 10 kHz | 362 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
|
ALC40A681DD250CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 680 µF | ±20% | 250 V | 245mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | 2.59 A @ 10 kHz | 179 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

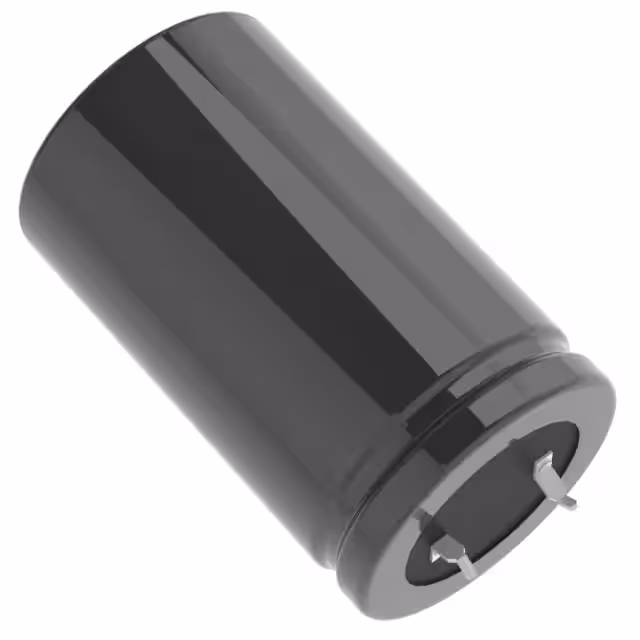

400USH560MEFC30X40CAP ALUM 560UF 20% 400V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 560 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.06 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
35MXG3300MEFCSN20X30CAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 3300 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.8055 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
420MXC150MEFC22X40CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.204 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
50VXG2700MEFC22X35CAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 2700 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.0355 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH228MML3990QE4CAP ALUM 990UF 63V SOLDER LUG TH |
0 |
|
Datasheet |
PEH228 | Tray | Active | 990 µF | -10%, +30% | 63 V | 74mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.135 A @ 100 Hz | 6.1 A @ 5 kHz | - | 0.600" (15.24mm) | 0.795" Dia (20.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|

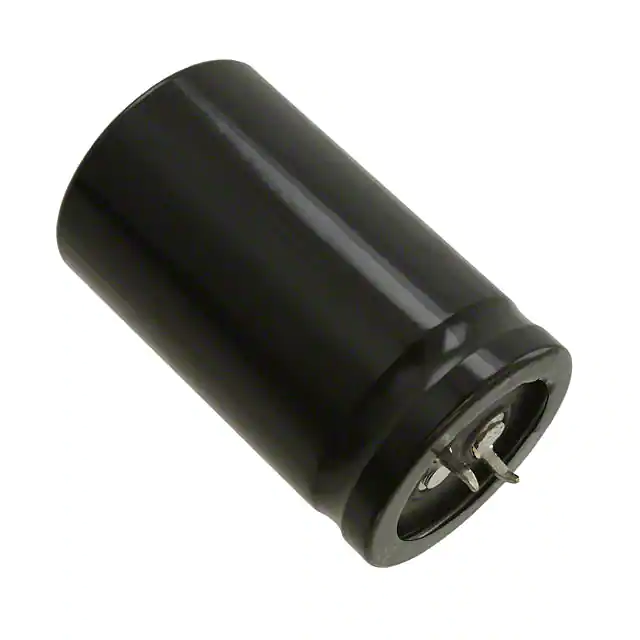

LKX2D152MESB50CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2.8 A @ 120 Hz | 4.2 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F472DF100CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4700 µF | ±20% | 100 V | 65.09mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.73 A @ 100 Hz | 9.03 A @ 10 kHz | 54 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205656332E3CAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 3300 µF | ±20% | 25 V | 89mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.88 A @ 100 Hz | - | 61 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205676332E3CAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 3300 µF | ±20% | 25 V | 89mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.88 A @ 100 Hz | - | 61 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL212320338CAP ALUM 3.3UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 35 V | 73Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 14 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212320338E3CAP ALUM 3.3UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 35 V | 73Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 14 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
PEH534PCE4220M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 2.2 mF | ±20% | 100 V | 91mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 9.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

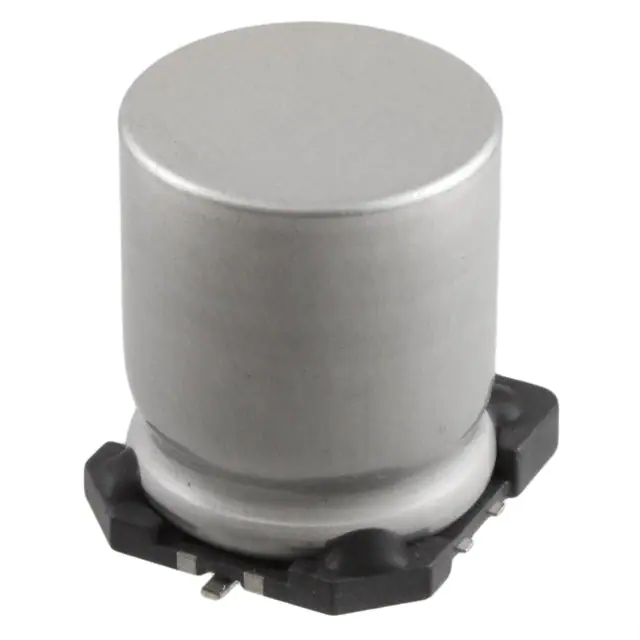

MAL214699609E3CAP ALUM 2700UF 20% 25V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 2700 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.23 A @ 100 Hz | 1.75 A @ 100 kHz | 35 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
MAL219379121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 120 µF | ±20% | 500 V | 1.15Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 100 Hz | 1.71 A @ 10 kHz | 870 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL219339121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 120 µF | ±20% | 500 V | 1.15Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 100 Hz | 1.71 A @ 10 kHz | 870 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole |
