Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
380LX122M250A452CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1200 µF | ±20% | 250 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
380LX222M160A452CAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 2200 µF | ±20% | 160 V | 90mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
250MXG1200MEFCSN35X35CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL225966271E3CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 270 µF | ±20% | 400 V | 570mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 100 Hz | 2.235 A @ 10 kHz | 440 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225926271E3CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 270 µF | ±20% | 400 V | 570mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 100 Hz | 2.235 A @ 10 kHz | 440 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC80A201DC500CAP ALUM 200UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 500 V | 851mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 100 Hz | 4.4 A @ 10 kHz | 589 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC80D201DC500CAP ALUM 200UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 500 V | 851.1mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 100 Hz | 4.4 A @ 10 kHz | 589 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC80E201DC500CAP ALUM 200UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 500 V | 851mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 100 Hz | 4.4 A @ 10 kHz | 589 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC80F201DC500CAP ALUM 200UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 200 µF | ±20% | 500 V | 851mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.71 A @ 100 Hz | 4.4 A @ 10 kHz | 589 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43642C5277M062CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 270 µF | ±20% | 450 V | 310mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
277LBB450M2EECAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 270 µF | ±20% | 450 V | 921.04mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.087 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215629152E3CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 1500 µF | ±20% | 100 V | 239mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 100 Hz | - | 223 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215669152E3CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 1500 µF | ±20% | 100 V | 239mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 100 Hz | - | 223 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215815123E3CAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 12000 µF | ±20% | 16 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 100 Hz | - | 50 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL215825123E3CAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 12000 µF | ±20% | 16 V | 59mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.91 A @ 100 Hz | - | 53 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL215855123E3CAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 12000 µF | ±20% | 16 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 100 Hz | - | 50 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL215865123E3CAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 12000 µF | ±20% | 16 V | 59mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.91 A @ 100 Hz | - | 53 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

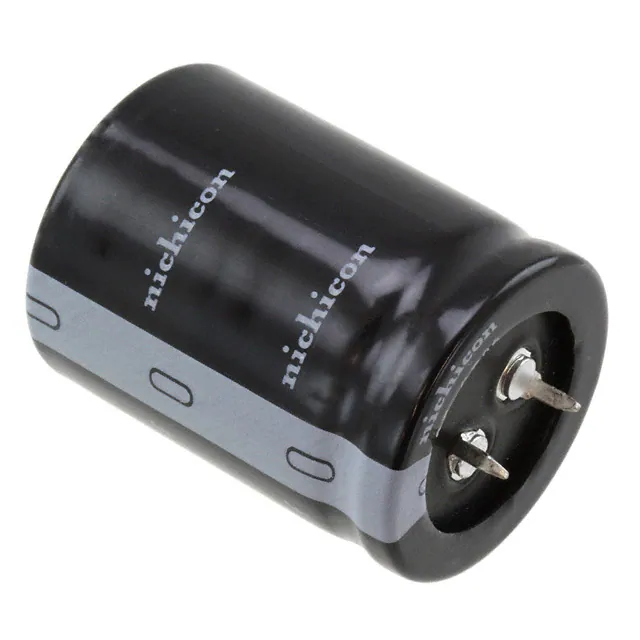

LKX2E821MESB40CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH532PCE4220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 2.2 mF | ±20% | 100 V | 95mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 6.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL212320228CAP ALUM 2.2UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 10 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole |
