Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225779181E3CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 500 V | 1.18Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | 1.974 A @ 10 kHz | 1.02 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225749181E3CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 500 V | 1.18Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | 1.974 A @ 10 kHz | 1.02 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF40C561DF350CAP ALUM 560UF 20% 350V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 560 µF | ±20% | 350 V | 224mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.57 A @ 100 Hz | 4.44 A @ 10 kHz | 155 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|

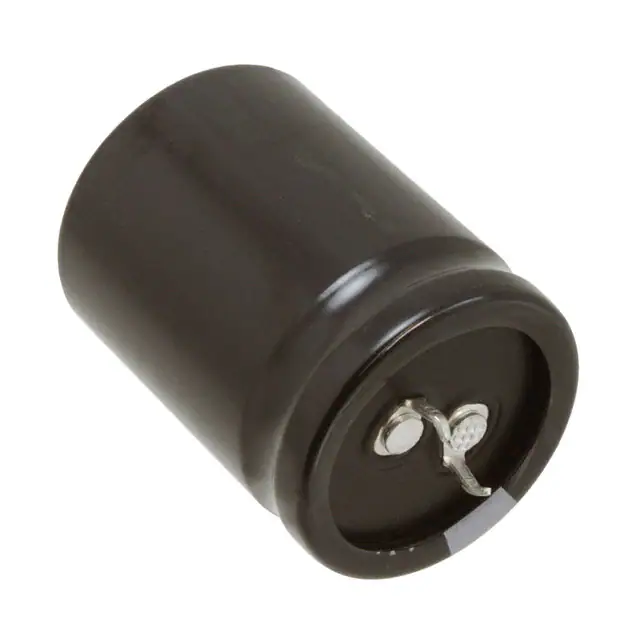

LGGW6391MELB40CAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 390 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 1.8515 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALV70C101DD750CAP ALUM 85C 100UF 750VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 100 µF | ±20% | 750 V | 5.413Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 1.09 A @ 10 kHz | 5.026 Ohms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205624153E3CAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 15000 µF | ±20% | 10 V | 41mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.39 A @ 100 Hz | - | 34 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205644153E3CAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 15000 µF | ±20% | 10 V | 41mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.39 A @ 100 Hz | - | 34 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205654153E3CAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 15000 µF | ±20% | 10 V | 44mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.12 A @ 100 Hz | - | 39 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205674153E3CAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 15000 µF | ±20% | 10 V | 44mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.12 A @ 100 Hz | - | 39 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205722471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 470 µF | ±20% | 200 V | 310mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205742471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 470 µF | ±20% | 200 V | 310mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205752471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 470 µF | ±20% | 200 V | 310mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205772471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 470 µF | ±20% | 200 V | 310mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 100 Hz | - | 230 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215912471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 470 µF | ±20% | 200 V | 505mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | - | 400 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215952471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 470 µF | ±20% | 200 V | 505mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | - | 400 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL215972471E3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 470 µF | ±20% | 200 V | 505mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | - | 400 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC70A562DF100CAP ALUM 5600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 5600 µF | ±20% | 100 V | 50.93mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 8.76 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
420USC220MEFC30X30CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43644B5277M002CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 270 µF | ±20% | 450 V | 370mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
160MXC1000MEFC22X50CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole |
