Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
475MXH270MEFCSN35X35CAP ALUM 270UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 270 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 2.128 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LSK271M2H---3535SCAP ALUM 500V POLAR |
0 |
|
- |
LSK | Active | 270 µF | ±20% | 500 V | 737mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.526 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
ELXS251VSN122MA40SCAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1200 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.11 A @ 120 Hz | 4.665 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
381LQ222M160K452CAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 2200 µF | ±20% | 160 V | 90mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.06 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
400VXR470MEFC35X50CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 470 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1V682MESABKCAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

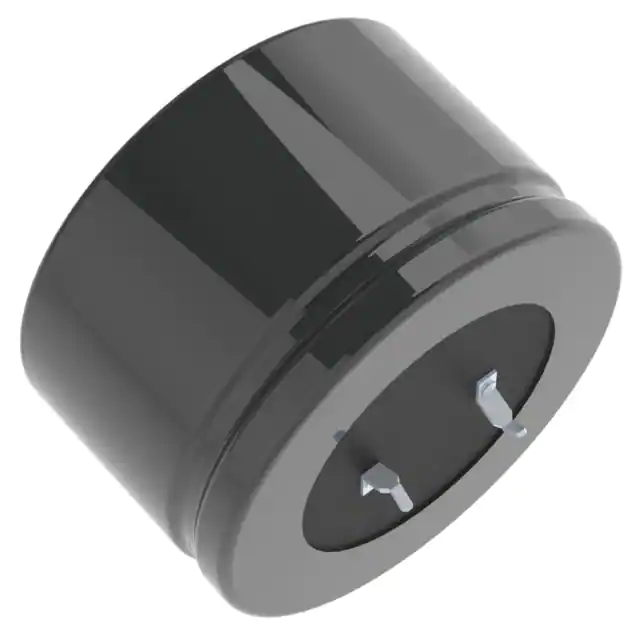

LKG1J222MESCAKCAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
B43644A5337M007CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 330 µF | ±20% | 450 V | 310mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 100 Hz | - | 470 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF40C561EC250CAP ALUM 560UF 20% 250V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 560 µF | ±20% | 250 V | 221mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.05 A @ 100 Hz | 4.16 A @ 10 kHz | 166 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
LKG1J682MESCBKCAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LKG1E333MESCAKCAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 33000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.85 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKG1K272MESCCKCAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKG1K392MESCBKCAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKG1V223MESCAKCAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 22000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKG2A272MESBAKCAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.55 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF80C331DE450CAP ALUM 330UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF80 | Bulk | Active | 330 µF | ±20% | 450 V | 394mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 6.32 A @ 10 kHz | 205 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole, Press-Fit | |
|
|
PEH225HF4220ME1CAP ALUM RAD 125C |
0 |
|
Datasheet |
PEH | Box | Active | 2.2 mF | ±20% | 25 V | 60mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.135 A @ 100 Hz | 6.1 A @ 5 kHz | - | - | 1.091" Dia (27.70mm) | 0.650" (16.50mm) | - | Through Hole | |
|
MAL211846332E3CAP ALUM 3300UF 20% 25V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 3300 µF | ±20% | 25 V | 120mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.61 A @ 100 Hz | - | 110 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL211849331E3CAP ALUM 330UF 20% 100V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 330 µF | ±20% | 100 V | 450mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 890 mA @ 100 Hz | - | 370 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL213845103E3CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 10000 µF | ±20% | 16 V | 65mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 2.1 A @ 100 Hz | - | 98 mOhms | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole |
