Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

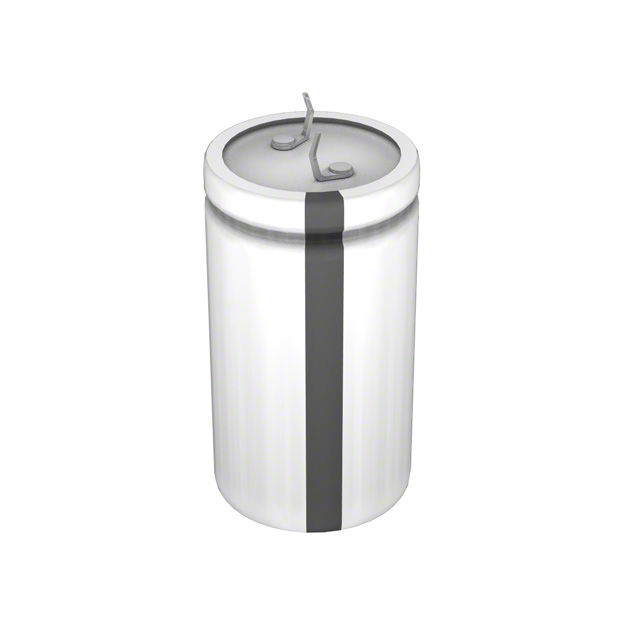

LPX821M200C4P3CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.08 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL205358101E3CAP ALUM 100UF 20% 385V RADIAL |
0 |
|
Datasheet |
053 PEC-PW | Tape & Box (TB) | Active | 100 µF | ±20% | 385 V | 1.5Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 640 mA @ 100 Hz | - | 1.02 Ohms | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
MAL205826472E3CAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 25 V | 52mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205846472E3CAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 25 V | 52mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205856472E3CAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 25 V | 62mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | - | 42 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205876472E3CAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 25 V | 62mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | - | 42 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225777271E3CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 270 µF | ±20% | 450 V | 670mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.84 A @ 100 Hz | 2.576 A @ 10 kHz | 550 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
MAL225737271E3CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 270 µF | ±20% | 450 V | 690mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.69 A @ 100 Hz | 2.366 A @ 10 kHz | 570 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225747271E3CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 270 µF | ±20% | 450 V | 670mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.84 A @ 100 Hz | 2.576 A @ 10 kHz | 550 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF40C151EB450CAP ALUM 150UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 150 µF | ±20% | 450 V | 642mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 100 Hz | 4.14 A @ 10 kHz | 447 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole, Press-Fit | |
|
B43544F9477M060CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43544 | Bulk | Active | 470 µF | ±20% | 400 V | 130mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.42 A @ 100 Hz | - | 180 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
ALF20C471DF400CAP ALUM 470UF 20% 400V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 470 µF | ±20% | 400 V | 321mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.62 A @ 100 Hz | 4.41 A @ 10 kHz | 223 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
B43508B5227M067CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 220 µF | ±20% | 450 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 100 Hz | - | 790 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70A203DD040CAP ALUM 20000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 20000 µF | ±20% | 40 V | 40mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.36 A @ 100 Hz | 9.03 A @ 10 kHz | 33 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F203DD040CAP ALUM 20000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 20000 µF | ±20% | 40 V | 40mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.36 A @ 100 Hz | 9.03 A @ 10 kHz | 33 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
385VXS330MEFC35X30CAP ALUM 330UF 20% 385V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 330 µF | ±20% | 385 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.408 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
400MXK470MEFC30X35CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMS501VSN221MA35SCAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 220 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
ALC40C123EB040CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 12 mF | ±20% | 40 V | 88mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.13 A @ 100 Hz | 4.22 A @ 10 kHz | 79 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70A133DF063CAP ALUM 13000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 13000 µF | ±20% | 63 V | 33.75mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.82 A @ 100 Hz | 10.03 A @ 10 kHz | 26 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
