Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S1JA681BACAP ALUM 680UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 680 µF | ±20% | 63 V | 414mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA102BACAP ALUM 1000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 63 V | 282mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.346 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA122BACAP ALUM 1200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1200 µF | ±20% | 63 V | 235mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.61 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

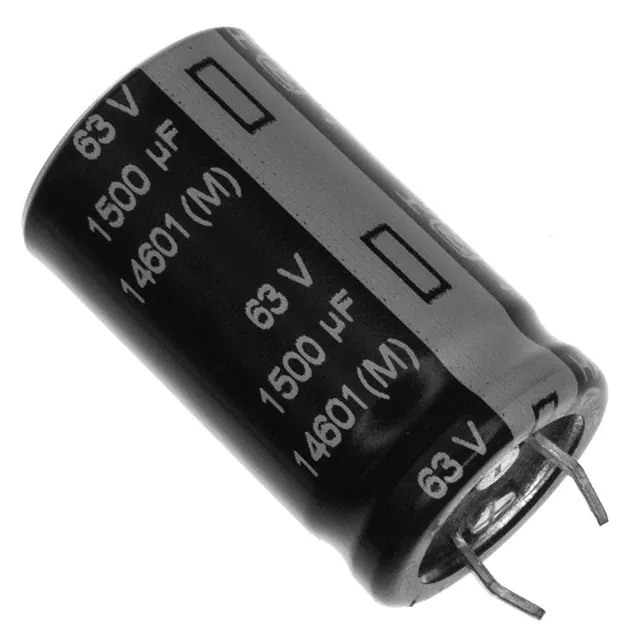

ECO-S1JA152AACAP ALUM 1500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 63 V | 188mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.73 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ECO-S1JA152BACAP ALUM 1500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 63 V | 188mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ECO-S1JA182BACAP ALUM 1800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1800 µF | ±20% | 63 V | 157mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA182CACAP ALUM 1800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1800 µF | ±20% | 63 V | 157mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA222BACAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 63 V | 128mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ECO-S1JA222CACAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 63 V | 128mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ECO-S1JA272BACAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2700 µF | ±20% | 63 V | 104mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ECO-S1JA272DACAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2700 µF | ±20% | 63 V | 104mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1JA332BACAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 63 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S1JA332EACAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 63 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ECO-S1JA392CACAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3900 µF | ±20% | 63 V | 77mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.105 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S1JA392EACAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3900 µF | ±20% | 63 V | 77mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.105 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA472CACAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 63mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.45 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ECO-S1JA472EACAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 63mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.45 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ECO-S1JA562DACAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 5600 µF | ±20% | 63 V | 53mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

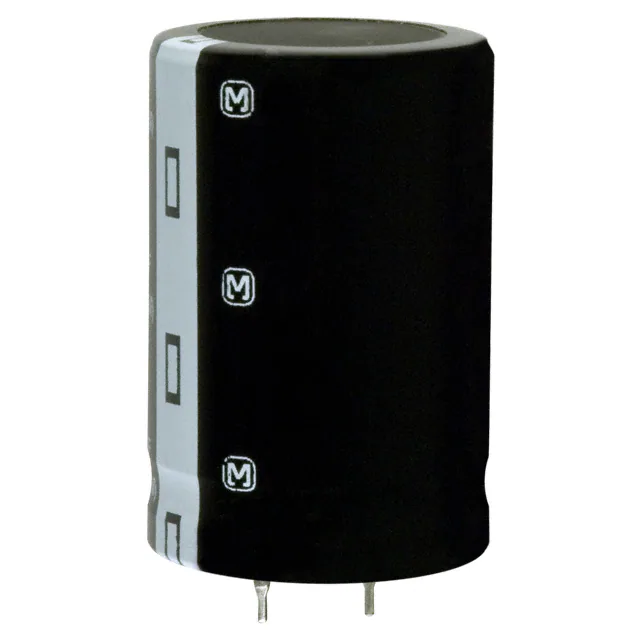

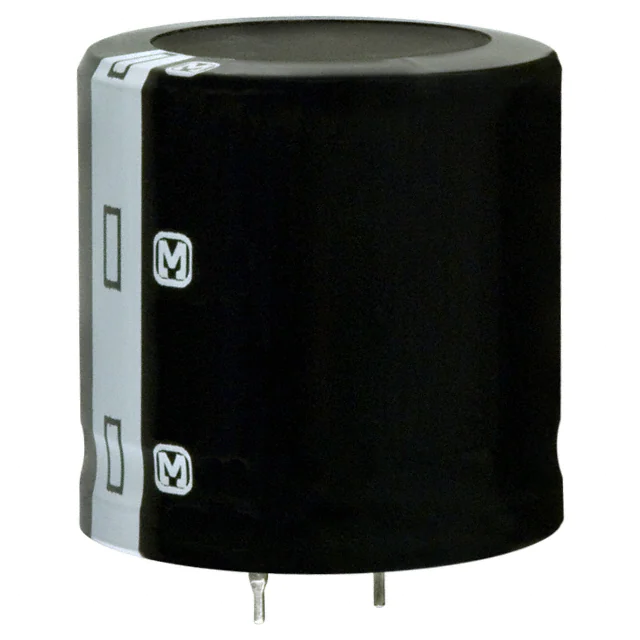

ECO-S1JA562EACAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 5600 µF | ±20% | 63 V | 53mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ECO-S1JA682DACAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole |
