Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

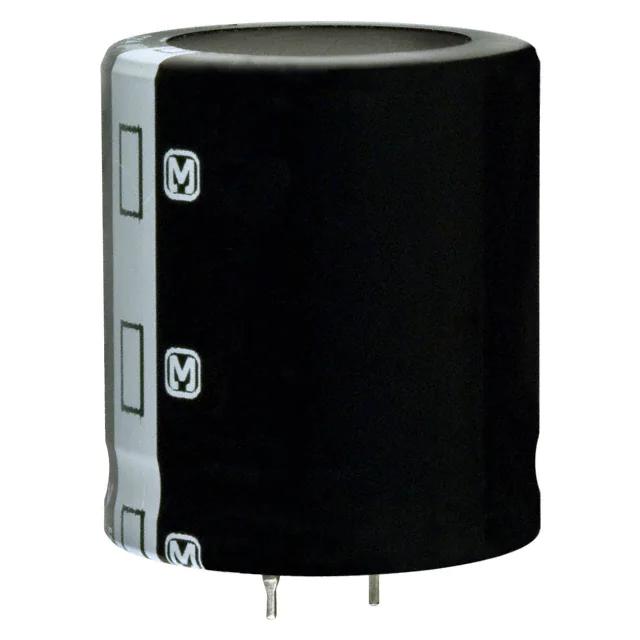

ECO-S1JA682EACAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

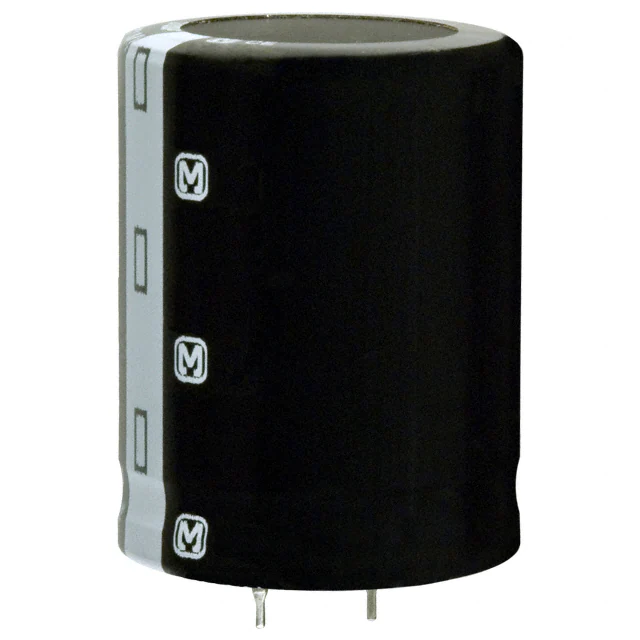

ECO-S1JA822EACAP ALUM 8200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 8200 µF | ±20% | 63 V | 40mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

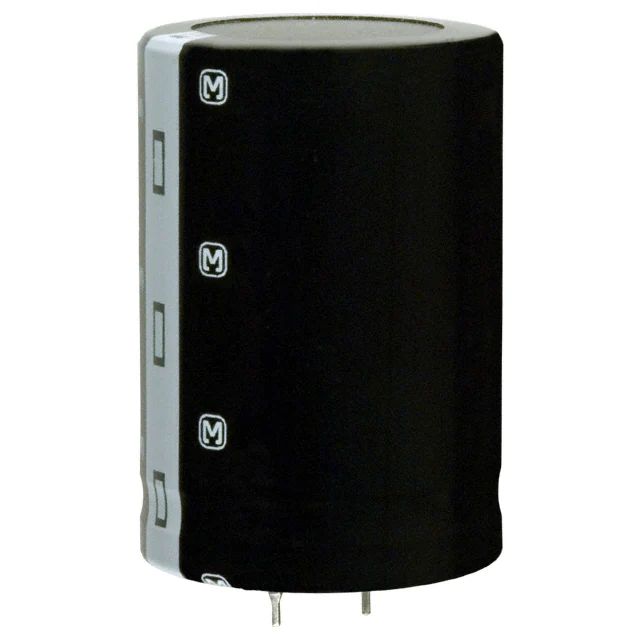

ECO-S1JA103EACAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 10000 µF | ±20% | 63 V | 33mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.06 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

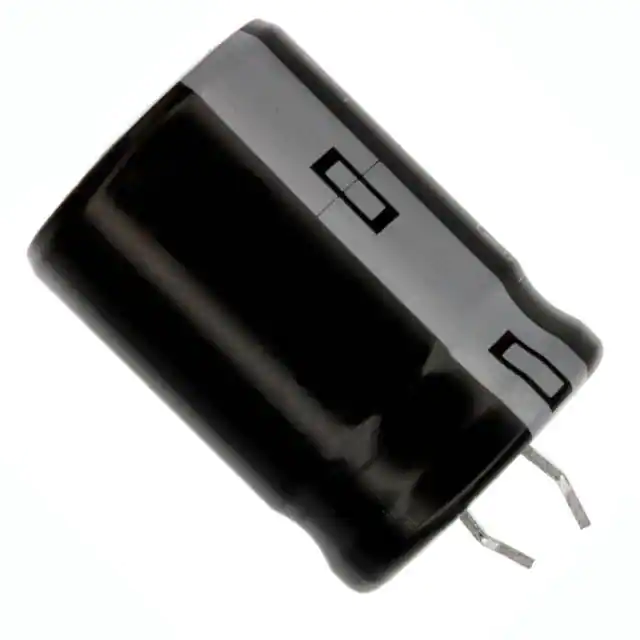

ECO-S1KA471BACAP ALUM 470UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 470 µF | ±20% | 80 V | 388mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 920 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA681BACAP ALUM 680UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 680 µF | ±20% | 80 V | 268mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA821BACAP ALUM 820UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 820 µF | ±20% | 80 V | 222mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA102BACAP ALUM 1000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 80 V | 182mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

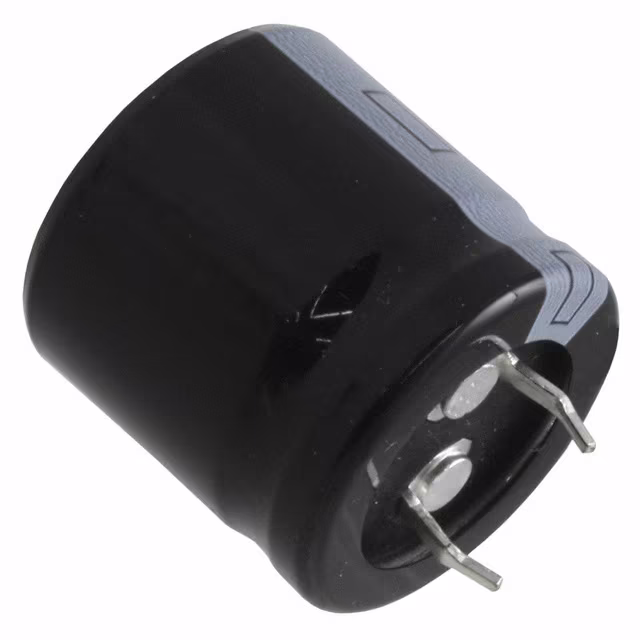

ECO-S1KA102CACAP ALUM 1000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1000 µF | ±20% | 80 V | 182mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ECO-S1KA122BACAP ALUM 1200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1200 µF | ±20% | 80 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ECO-S1KA122CACAP ALUM 1200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1200 µF | ±20% | 80 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA152BACAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 80 V | 133mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

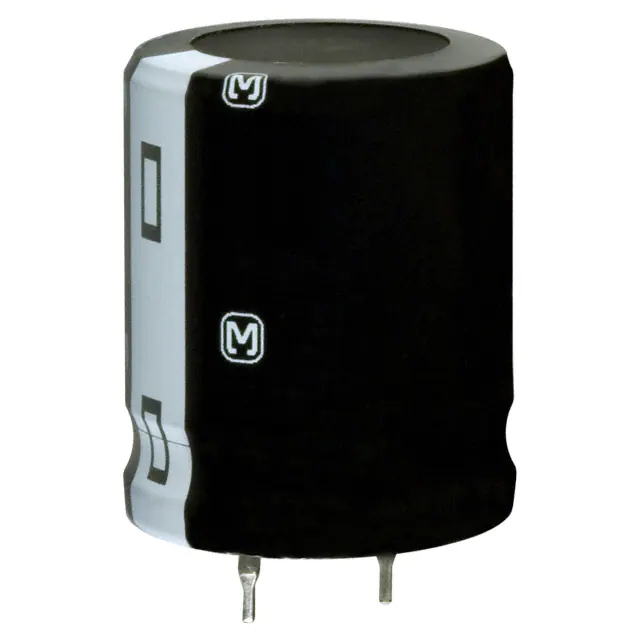

ECO-S1KA152CACAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1500 µF | ±20% | 80 V | 133mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ECO-S1KA182BACAP ALUM 1800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1800 µF | ±20% | 80 V | 111mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

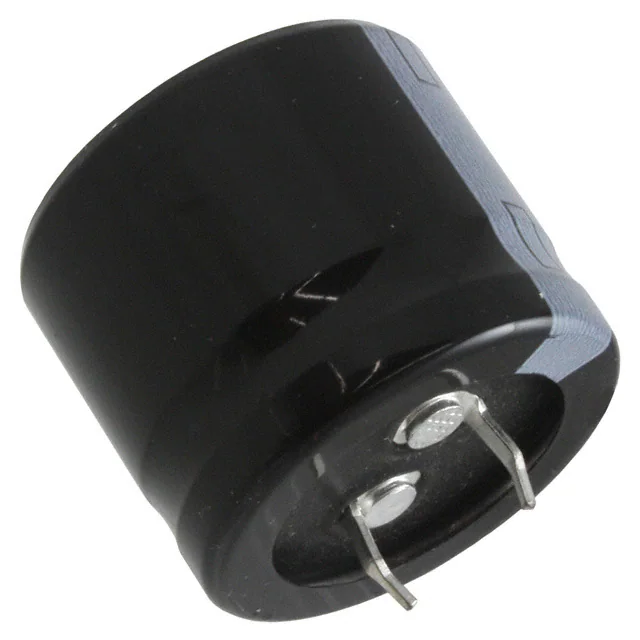

ECO-S1KA182DACAP ALUM 1800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 1800 µF | ±20% | 80 V | 111mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.07 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S1KA222BACAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 80 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

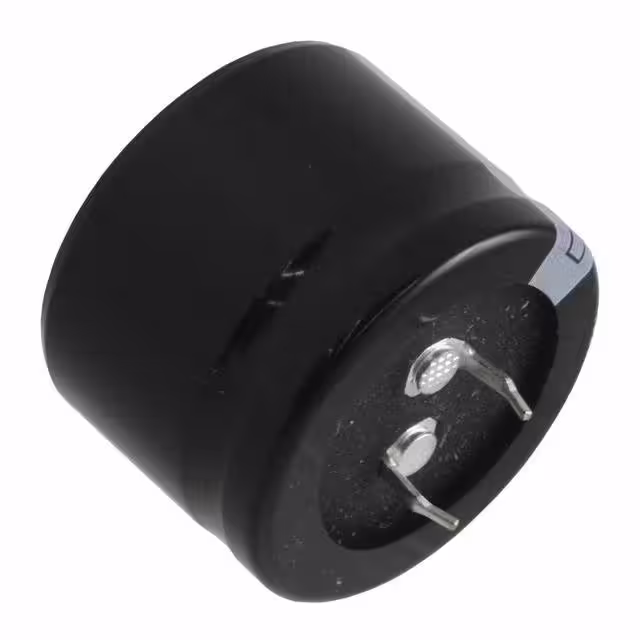

ECO-S1KA222EACAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2200 µF | ±20% | 80 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

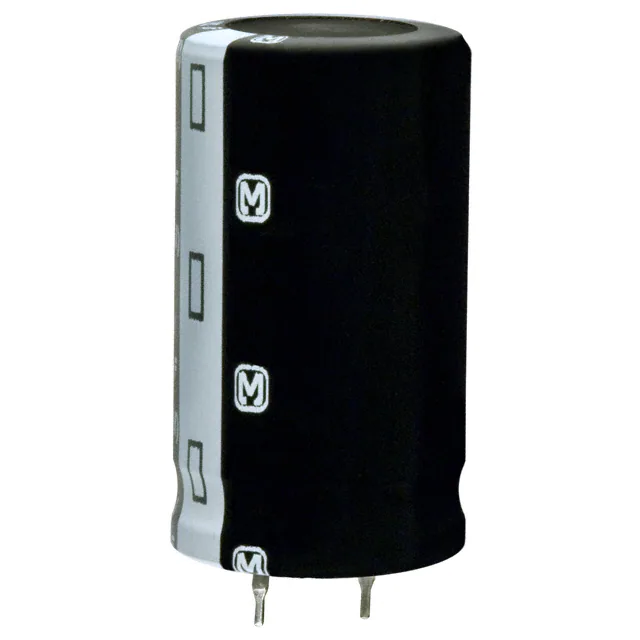

ECO-S1KA272CACAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2700 µF | ±20% | 80 V | 74mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

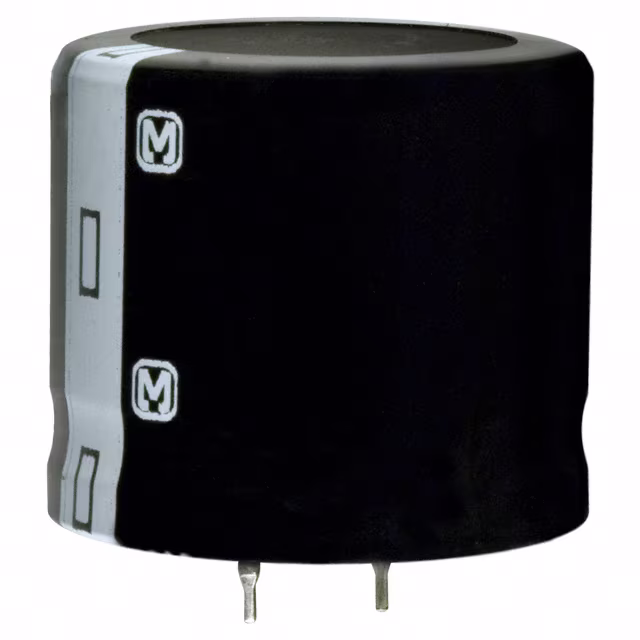

ECO-S1KA272EACAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 2700 µF | ±20% | 80 V | 74mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

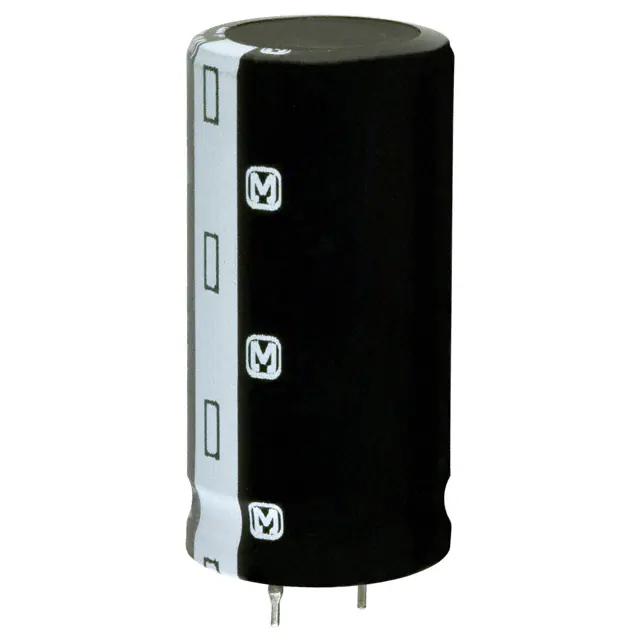

ECO-S1KA332CACAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 80 V | 65mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ECO-S1KA332EACAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 3300 µF | ±20% | 80 V | 65mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 2.99 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole |
