Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 2.5.jpg)
|
CGA6L4NP02J153J160AACAP CER 0.015UF 630V NP0 1210 |
6,440 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
|
CBR08C809BAGACCAP CER 8PF 250V C0G/NP0 0805 |
4,124 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 8 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
-0,94mm-J-Code.jpg)
|
12067A181GAT2ACAP CER 180PF 500V C0G/NP0 1206 |
3,995 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 180 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
CBR08C309BAGACCAP CER 3PF 250V C0G/NP0 0805 |
3,289 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 3 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
SR211C105KARTR1CAP CER 1UF 100V X7R RADIAL |
2,766 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
.jpg)
|
GCJ32EC71H106MA01LCAP CER |
2,743 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 10 µF | ±20% | 50V | X7S | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532X5R1A336M230KACAP CER 33UF 10V X5R 1812 |
2,066 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 33 µF | ±20% | 10V | X5R | -55°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
-2,54.jpg)
|
1825CC154KAT2ACAP CER 0.15UF 630V X7R 1825 |
1,926 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X8L1H335K200ACCAP CER 3.3UF 50V X8L 1210 |
1,750 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 50V | X8L | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C104JARAC7800CAP CER 0.1UF 250V X7R 1812 |
1,732 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|

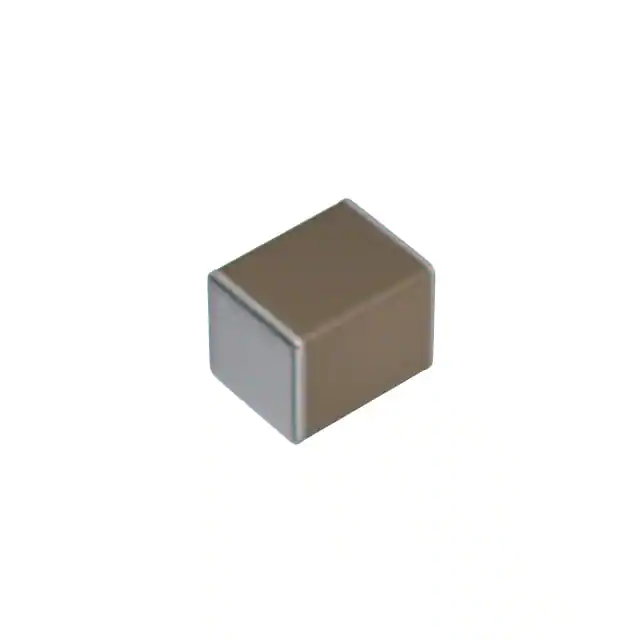

C3225C0G3A122J200ACCAP CER 1200PF 1KV C0G/NP0 1210 |
1,717 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 1200 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
C1210X475K3RACTUCAP CER 4.7UF 25V X7R 1210 |
1,679 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.055" (1.40mm) | - | - |
|
|
C3225C0G1H104K250AACAP CER 0.1UF 50V C0G 1210 |
1,551 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.1 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7R2E684K230KMCAP CER 0.68UF 250V X7R 2220 |
1,340 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
C3225C0G1H683J200AACAP CER 0.068UF 50V C0G 1210 |
1,266 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.068 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-3,50mm.jpg)
|
QMK432B7104KMHTCAP CER 0.1UF 250V X7R 1812 |
791 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C5750X7R2E474K230KMCAP CER 0.47UF 250V X7R 2220 |
779 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
C3225C0G3A182J200ACCAP CER 1800PF 1KV C0G/NP0 1210 |
695 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 1800 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|

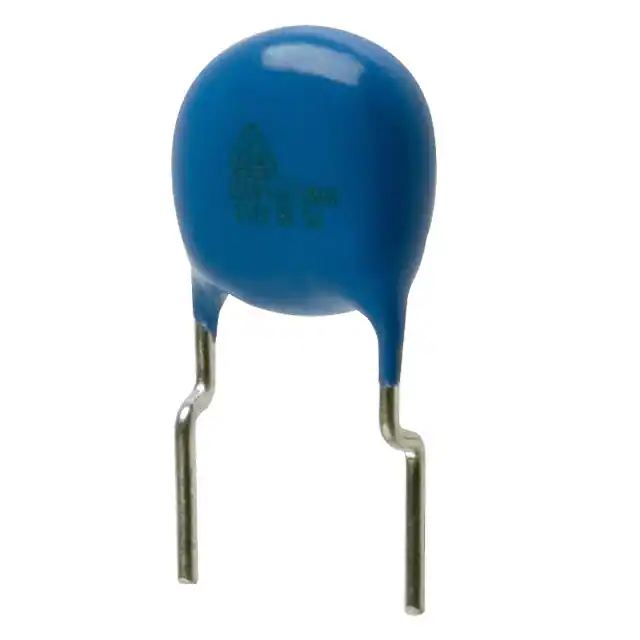

CS95ZU2GA332MANKACAP CER 3300PF 330/440VAC Z5U |
614 |
|
Datasheet |
CS | Bulk | Active | 3300 pF | ±20% | 300VAC/440VAC | Z5U | -55°C ~ 125°C | High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | - | - | 0.295" (7.50mm) | Formed Leads - Kinked |
-1,79-mm-Tan.jpg)
|
111121K00101GQTCAP CER 100PF 1KV C0G/NP0 1111 |
10,493 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 100 pF | ±2% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
