Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,30mm.jpg)
|
GRM43DR72D474KW01LCAP CER 0.47UF 200V X7R 1812 |
1,669 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.091" (2.30mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C334J3JACAUTOCAP CER 0.33UF 25V U2J 1210 |
1,461 |
|
Datasheet |
SMD Auto U2J | Tape & Reel (TR) | Active | 0.33 µF | ±5% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
.jpg)
|
0402BW224K160YTCAP CER 0.22UF 16V X5R 0402 |
1,264 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
C2225C474KARACTUCAP CER 0.47UF 250V X7R 2225 |
919 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.057" (1.45mm) | - | - |
-2,54.jpg)
|
1825AC473KAT2ACAP CER 0.047UF 1KV X7R 1825 |
400 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532X7T2J224K200KECAP CER 0.22UF 630V X7T 1812 |
16,137 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 630V | X7T | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.126" (3.20mm) | - | - |
|
|
C0805C152F5GACTUCAP CER 1500PF 50V C0G/NP0 0805 |
3,881 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1500 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
C1206C124J5JACTUCAP CER 0.12UF 50V U2J 1206 |
3,846 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.12 µF | ±5% | 50V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1812C153KDRACTUCAP CER 0.015UF 1KV X7R 1812 |
2,912 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|

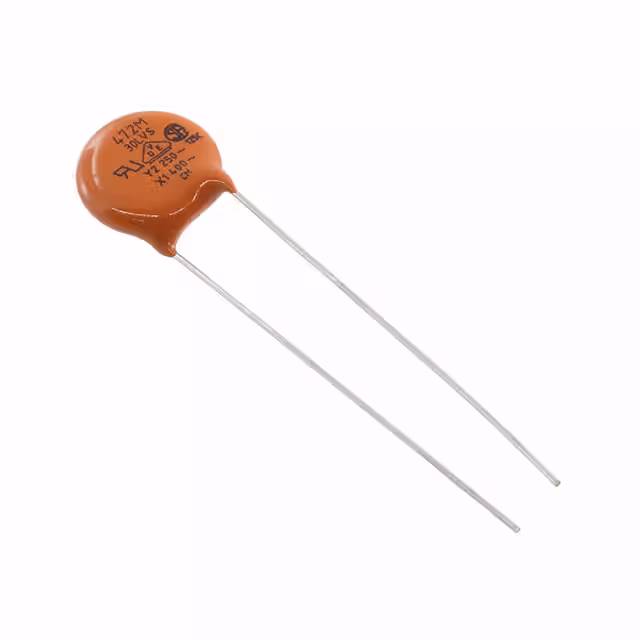

30LVSD47-RCAP CER 4700PF 400VAC Y5U RADIAL |
2,241 |
|
Datasheet |
Cera-Mite 30LVS | Bulk | Active | 4700 pF | ±20% | 400VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.488" Dia (12.40mm) | 0.614" (15.60mm) | - | 0.252" (6.40mm) | Straight |
|
440LT68-RCAP CER 680PF 760VAC Y5U RADIAL |
2,129 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 680 pF | ±20% | 760VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.331" Dia (8.40mm) | 0.457" (11.60mm) | - | 0.374" (9.50mm) | Straight |
|
|
440LT10-RCAP CER 100PF 760VAC X7R RADIAL |
1,056 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 100 pF | ±10% | 760VAC | X7R | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.331" Dia (8.40mm) | 0.457" (11.60mm) | - | 0.374" (9.50mm) | Straight |
|
|
30LVSD40-RCAP CER 4000PF 400VAC Y5U RADIAL |
986 |
|
Datasheet |
Cera-Mite 30LVS | Bulk | Active | 4000 pF | ±20% | 400VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.488" Dia (12.40mm) | 0.614" (15.60mm) | - | 0.252" (6.40mm) | Straight |
|
|
600L120FW200T4KCAP CER 12PF 200V NP0 0402 |
964 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 12 pF | ±1% | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
440LT33-RCAP CER 330PF 760VAC X7R RADIAL |
939 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 330 pF | ±10% | 760VAC | X7R | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.331" Dia (8.40mm) | 0.457" (11.60mm) | - | 0.374" (9.50mm) | Straight |
|
|
440LT22-RCAP CER 220PF 760VAC X7R RADIAL |
621 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 220 pF | ±10% | 760VAC | X7R | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.331" Dia (8.40mm) | 0.457" (11.60mm) | - | 0.374" (9.50mm) | Straight |
|
|
440LD33-RCAP CER 3300PF 760VAC Y5U RADIAL |
556 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 3300 pF | ±20% | 760VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.429" Dia (10.90mm) | 0.555" (14.10mm) | - | 0.374" (9.50mm) | Straight |
|
|
440LQ10-RCAP CER 10PF 760VAC NP0 RADIAL |
223 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 10 pF | ±10% | 760VAC | C0G, NP0 | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.331" Dia (8.40mm) | 0.457" (11.60mm) | - | 0.374" (9.50mm) | Straight |
|
|
0402BB104K160NGTCAP CER 0.1UF 16V X7R 0402 |
43,385 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Gold Flash Termination | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206C683J5GACAUTOCAP CER 0.068UF 50V C0G/NP0 1206 |
6,830 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
