Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1812C474JARACTUCAP CER 0.47UF 250V X7R 1812 |
1,377 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.47 µF | ±5% | 250V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.073" (1.85mm) | - | - |
|
FA22X7R2E474KNU00CAP CER 0.47UF 250V X7R RADIAL |
980 |
|
Datasheet |
FA | Bulk | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
K184K20X0UK63H5HCAP CER 0.18UF 200V X0U RADIAL |
17,789 |
|
Datasheet |
HOTcap® | Bulk | Active | 0.18 µF | ±10% | 200V | X0U | -55°C ~ 175°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.299" (7.60mm) | - | 0.197" (5.00mm) | Formed Leads |
.jpg)
|
C1210X105K5RACAUTOCAP CER 1UF 50V X7R 1210 |
3,980 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.069" (1.75mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X106K8RACAUTOCAP CER 10UF 10V X7R 1206 |
2,950 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±10% | 10V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.077" (1.95mm) | - | - |
|
|
C1210X106K8NACAUTOCAP CER 10UF 10V X8L 1210 |
2,445 |
|
Datasheet |
SMD Auto X8L HT150C | Tape & Reel (TR) | Active | 10 µF | ±10% | 10V | X8L | -55°C ~ 150°C | Soft Termination, High Temperature | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C272KGRACAUTOCAP CER 2700PF 2KV X7R 1210 |
1,565 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 2700 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
.jpg)
|

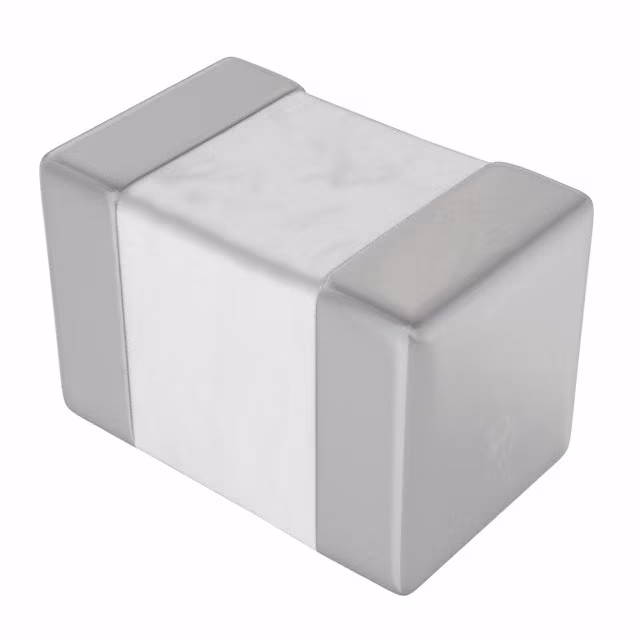

MM05ZC105KCZ2ACAP CER 1UF 10V X7R 0805 |
1,371 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 1 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.029" (0.74mm) | - | - |
-1,79-mm-Tan.jpg)
|
111122K05P60BQTCAP CER 5.6PF 2KV C0G/NP0 1111 |
768 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 5.6 pF | ±0.1pF | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
|
111122K00390FQTCAP CER 39PF 2KV C0G/NP0 1111 |
672 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 39 pF | ±1% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
C315C100KDG5TACAP CER 10PF 1KV NP0 RADIAL |
592 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 10 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.120" W (3.81mm x 3.14mm) | 0.190" (4.82mm) | - | 0.100" (2.54mm) | Straight |
|
SR151A101GARCAP CER 100PF 100V C0G/NP0 RAD |
455 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 100 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" (3.81mm) | - | 0.100" (2.54mm) | Straight |
|
|
111122K06P80BQTCAP CER 6.8PF 2KV C0G/NP0 1111 |
405 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 6.8 pF | ±0.1pF | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
A474K20X7RF5UAAPA 50V 470NF 10% X7R AMMO E3 AUTO |
11,999 |
|
Datasheet |
A...P | Cut Tape (CT) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 160°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Axial | 0.122" Dia x 0.201" L (3.10mm x 5.10mm) | - | - | - | Straight |
.jpg)
|
600S120GT250XTCAP CER 12PF 250V C0G/NP0 0603 |
9,056 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 12 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
GRJ32ER70J476KE11LCAP CER 47UF 6.3V X7R 1210 |
3,281 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Not For New Designs | 47 µF | ±10% | 6.3V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
CAN18X154KARACTUCAP CER 1812 150NF 250VAC X7R |
2,871 |
|
Datasheet |
CAN SMD Indust X7R | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.075" (1.90mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C103K1GAC7800CAP CER 10000PF 100V C0GNP0 1812 |
2,274 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1210C100JDGACTUCAP CER 10PF 1KV C0G/NP0 1210 |
1,506 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 10 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
CAS17C681KARFCCAP CER 680PF 250VAC X7R 1808 |
774 |
|
Datasheet |
CAS SMD SFTY 250 | Tape & Reel (TR) | Active | 680 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.080" W (4.50mm x 2.03mm) | - | 0.087" (2.20mm) | - | - |
