Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-3,20x2,50x2,80mm.jpg)
|
C1210C222JDGACAUTOCAP CER 1210 2.2NF 1000V C0G 5% |
1,852 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 2200 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
FK22X5R1A336MN000CAP CER 33UF 10V X5R RADIAL |
1,272 |
|
Datasheet |
FK | Bulk | Not For New Designs | 33 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
VJ1206A102FXAATCAP CER 1000PF 50V C0G/NP0 1206 |
3,521 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1000 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
C1210C392KGRACTUCAP CER 3900PF 2KV X7R 1210 |
3,460 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 3900 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
.jpg)
|
600L120GT200TCAP CER 12PF 200V C0G/NP0 0402 |
3,334 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 12 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
KGF32LR71H225KUCAP CER 2.2UF 50V X7R 1210 |
2,341 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.79mm) | - | - |
.jpg)
|
600S910JT250XTCAP CER 91PF 250V NP0 0603 |
2,234 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 91 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
C1210C391KDGACAUTOCAP CER 390PF 1KV C0G/NP0 1210 |
1,936 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 390 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
 2.5.jpg)
|
CGA6M3X8R2A474K200ABCAP CER 0.47UF 100V X8R 1210 |
1,351 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 100V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
VJ1812Y474MXAATCAP CER 0.47UF 50V X7R 1812 |
881 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 50V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.086" (2.18mm) | - | - |
|
|
C1812C683KCRACTUCAP CER 0.068UF 500V X7R 1812 |
560 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
|
C1210C561KGRACAUTOCAP CER 560PF 2KV X7R 1210 |
4,993 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 560 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
|
GRM32DR73A153KW01LCAP CER 0.015UF 1KV X7R 1210 |
4,396 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-2,30mm.jpg)
|
GRM43DR72H224KW10LCAP CER 0.22UF 500V X7R 1812 |
4,083 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.091" (2.30mm) | - | - |
|
|
600L7R5BW200T4KCAP CER 7.5PF 200V NP0 0402 |
2,621 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 7.5 pF | ±0.1pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
C1812C224JARACTUCAP CER 0.22UF 250V X7R 1812 |
2,015 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.065" (1.65mm) | - | - |
|

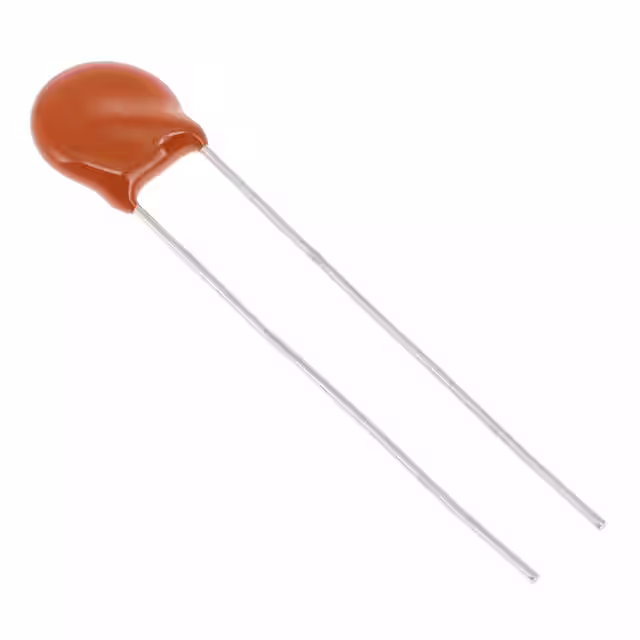

562R10TSD15CAP CER 1500PF 1KV X5F RADIAL |
1,830 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 1500 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.441" Dia (11.20mm) | 0.566" (14.38mm) | - | 0.252" (6.40mm) | Straight |
-2,03mm.jpg)
|
1808HC182KAT1ACAP CER 1800PF 3KV X7R 1808 |
1,777 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1800 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
|
FA20X7S1H106KRU06CAP CER 10UF 50V X7S RADIAL |
1,673 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 10 µF | ±10% | 50V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
C1812C273KFRACTUCAP CER 0.027UF 1.5KV X7R 1812 |
1,428 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.027 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
