Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1812C563J1GACTUCAP CER 0.056UF 100V C0GNP0 1812 |
154 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.056 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
KTJ500B156M55AFT00CAP CER 15UF 50V X7R SMD |
1,075 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 15 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL | - | Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.150" (3.80mm) | - | J-Lead |
|
|
C2225X823KDRACTUCAP CER 0.082UF 1KV X7R 2225 |
799 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.082 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
C340C105M1U5TACAP CER 1UF 100V Z5U RADIAL |
740 |
|
Datasheet |
GoldMax 300 Comm Z5U | Bulk | Active | 1 µF | ±20% | 100V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Formed Leads |
-4,50x3,20x2,7mm.jpg)
|
C1812C105M5RAC7800CAP CER 1UF 50V X7R 1812 |
2,389 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
|
C2220X563KFRACTUCAP CER 0.056UF 1.5KV X7R 2220 |
1,587 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.056 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|
C1812C203KGRLCAUTOCAP CER 0.02UF 2KV X7R 1812 |
296 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.02 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
.JPG)
|
CBR06C910FAGACCAP CER 91PF 250V C0G/NP0 0603 |
10,149 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 91 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
CBR06C820FAGACCAP CER 82PF 250V C0G/NP0 0603 |
4,115 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 82 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
22201C155MAT2ACAP CER SMD |
453 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.5 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.090" (2.29mm) | - | - |
|
C2220X563KFRACAUTOCAP CER 0.056UF 1.5 X7R 2220 |
336 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.056 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
-2.2.jpg)
|
CGA8M4NP02J333J200KACAP CER 0.033UF 630V NP0 1812 |
6,486 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
WKP472MCPERYKRCAP CER 4700PF 760VAC Y5U RADIAL |
2,835 |
|
Datasheet |
WKP | Bulk | Active | 4700 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.709" Dia (18.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | Straight |
-2,70mm-C-Series.jpg)
|
C5750C0G2W104J280KACAP CER 0.1UF 450V C0G 2220 |
2,253 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.122" (3.10mm) | - | - |
|
FG22C0G2J473JNT06CAP CER 0.047UF 630V C0G RADIAL |
1,536 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.047 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-3.2.jpg)
|
CGA8R4NP02J473J320KACAP CER 0.047UF 630V NP0 1812 |
1,227 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
|

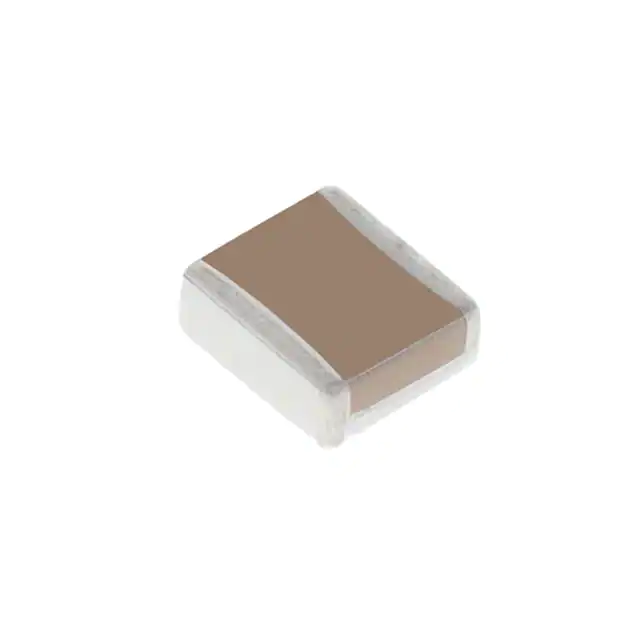

2225WC103KAT2ACAP CER 10000PF 2.5KV X7R 2225 |
882 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2500V (2.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.110" (2.80mm) | - | - |
-2,54.jpg)
|
1825GA102JAT2ACAP CER 1000PF 2KV C0G/NP0 1825 |
417 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
-2,54mm.jpg)
|
2225WC103KAT1ACAP CER 10000PF 2.5KV X7R 2225 |
751 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2500V (2.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | - | 0.100" (2.54mm) | - | - |
|
CK05BX100KCAP CER RADIAL |
355 |
|
Datasheet |
Military, MIL-C-11015, CK06 | Bulk | Active | 10 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
