Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1808N101K302NTCAP CER 100PF 3KV C0G/NP0 1808 |
15,180 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.065" (1.65mm) | - | - |
|
VJ1812A102KBEAT4XCAP CER 1000PF 500V C0G/NP0 1812 |
10,038 |
|
Datasheet |
VJ OMD | Tape & Reel (TR) | Active | 1000 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | Open Mode, Soft Termination | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.183" L x 0.126" W (4.65mm x 3.20mm) | - | 0.086" (2.18mm) | - | - |
|
C1210C183JDGACAUTOCAP CER 0.018UF 1KV C0G/NP0 1210 |
3,797 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.018 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C270KHGACTUCAP CER 27PF 3KV C0G/NP0 1812 |
2,250 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 27 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C2225C474K5RACTUCAP CER 0.47UF 50V X7R 2225 |
1,772 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.045" (1.15mm) | - | - |
|
C2220C472KHRACAUTOCAP CER 4700PF 3KV X7R 2220 |
819 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1812C683J1GACTUCAP CER 0.068UF 100V C0GNP0 1812 |
2,895 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
C1812C823J1GACTUCAP CER 0.082UF 100V C0GNP0 1812 |
834 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-1,79-mm-Tan.jpg)
|
111121500122GQTAF9LMCAP CER 1200PF 150V C0G/NP0 1111 |
616 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1200 pF | ±2% | 150V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
 2.5.jpg)
|
CGA6M1X8L1C156M200ACCAP CER X8L 16V 15UF 20% 2.00MM |
1,611 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 15 µF | ±20% | 16V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|

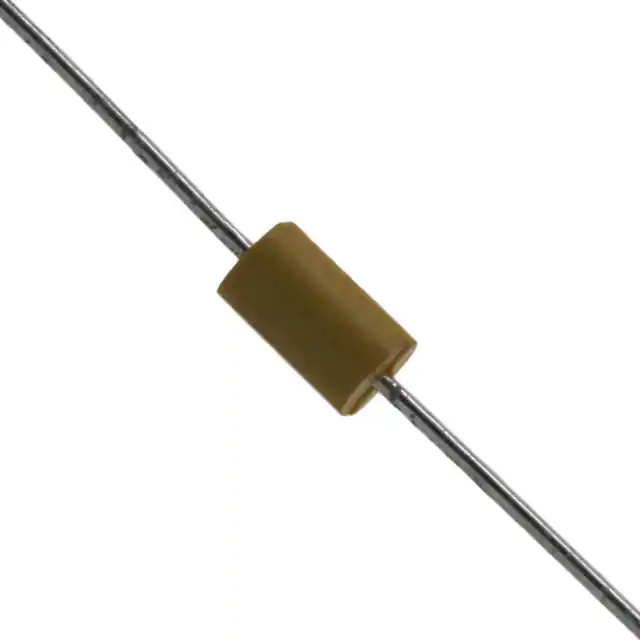

CK12BX101KCAP CER 100PF 100V 10% AXIAL |
776 |
|
Datasheet |
Military, MIL-C-11015, CK12 | Bulk | Active | 100 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Axial | 0.090" Dia x 0.160" L (2.29mm x 4.06mm) | - | - | - | Straight |
.JPG)
|
CDR32BX333AKUS7185CAP CER 0.033UF 50V BX 1206 |
751 |
|
Datasheet |
Military, MIL-PRF-55681, CDR32 | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
-3.2.jpg)
|
CGA8R4C0G2J223J320KACAP CER 0.022UF 630V C0G 1812 |
10,645 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
|
VJ2220Y154KXEATCAP CER 0.15UF 500V X7R 2220 |
6,191 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 500V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
|
600F1R8AT250XT4KCAP CER 1.8PF 250V C0G/NP0 0805 |
4,462 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 1.8 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
C1210X153JDGACAUTOCAP CER 1210 15NF 1000VDC C0G |
3,957 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
-1.6.jpg)
|
CGA8L4C0G2J103J160KACAP CER 10000PF 630V C0G 1812 |
3,189 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805H102J1GACT500CAP CER 1000PF 100V C0G/NP0 0805 |
622 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
440LD56-RCAP CER 5600PF 760VAC Y5U RADIAL |
544 |
|
Datasheet |
Cera-Mite 440L | Bulk | Active | 5600 pF | ±20% | 760VAC | Y5U (E) | -30°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.681" Dia (17.30mm) | 0.807" (20.50mm) | - | 0.374" (9.50mm) | Straight |
|
|
C1812C203KGRLCTUCAP CER 0.02UF 2KV X7R 1812 |
420 |
|
Datasheet |
KONNEKT Comm X7R | Tape & Reel (TR) | Active | 0.02 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.217" (5.50mm) | - | - |
